• Model NO.：FTTH Fiber Optical Cable
• Core：1-4 Core
• Certification：RoHS, ISO9001, Reach, Tlc, etc
• Brand：Tw-Scie or OEM
• Sheath Material：LSZH PE
• Model No：FTTH Optical Fiber Cable
• Fiber Count：1-4 Core
• Brand Name of Fiber：Corning, Yofc, Draka,...as Requirement
• Color of Loose Tube：Blue, Orange, Green, Brown
• Strength Member：Steel or FRP
• Jacket Color：Black, White
• Installation Style：Indoor & Outdoor Self-Support Drop Cable
• Range of Temperature：-20°c~+60°c
• Cable Dimension：2.0*5.0mm
• Cable Weight：8.2kg,Km

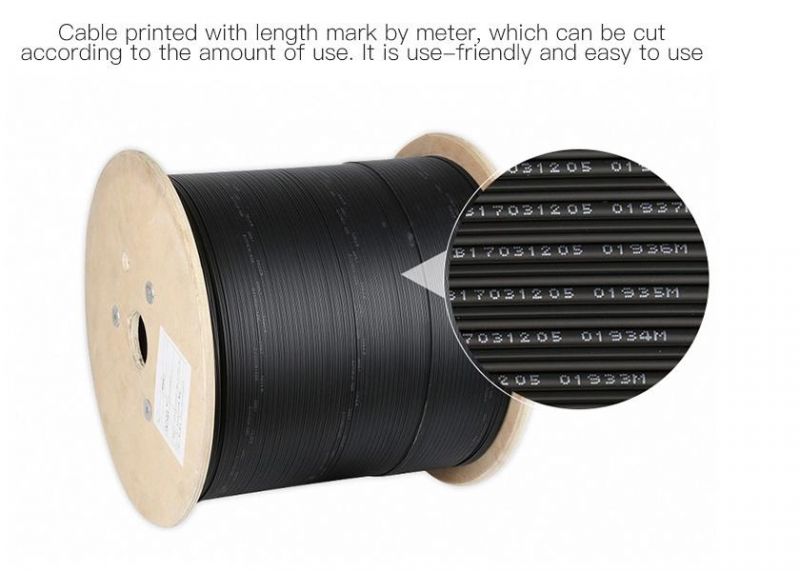

• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, Guangdong, China (Mainland)
• HS Code：854470000
• Production Capacity：200km,Day

Basic Info.

Model NO. FTTH Fiber Optical Cable Core 1-4 Core Certification RoHS, ISO9001, Reach, Tlc, etc Brand Tw-Scie or OEM Sheath Material LSZH PE Model No FTTH Optical Fiber Cable Fiber Count 1-4 Core Brand Name of Fiber Corning, Yofc, Draka,...as Requirement Color of Loose Tube Blue, Orange, Green, Brown Strength Member Steel or FRP Jacket Color Black, White Installation Style Indoor & Outdoor Self-Support Drop Cable Range of Temperature -20°c~+60°c Cable Dimension 2.0*5.0mm Cable Weight 8.2kg/Km Transport Package Wooden Drum Specification SGS ROHS REACH ISO Trademark TW-SCIE or OEM Origin Dongguan, Guangdong, China (Mainland) HS Code 854470000 Production Capacity 200km/Day

Product Description

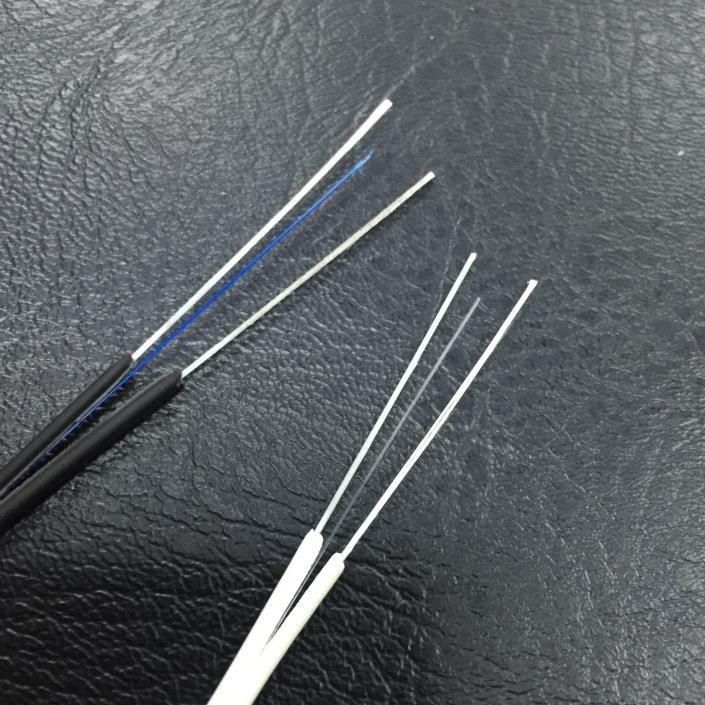

FTTH Indoor Self-Support  1,2,4 Core Fiber Optical Cable Details:

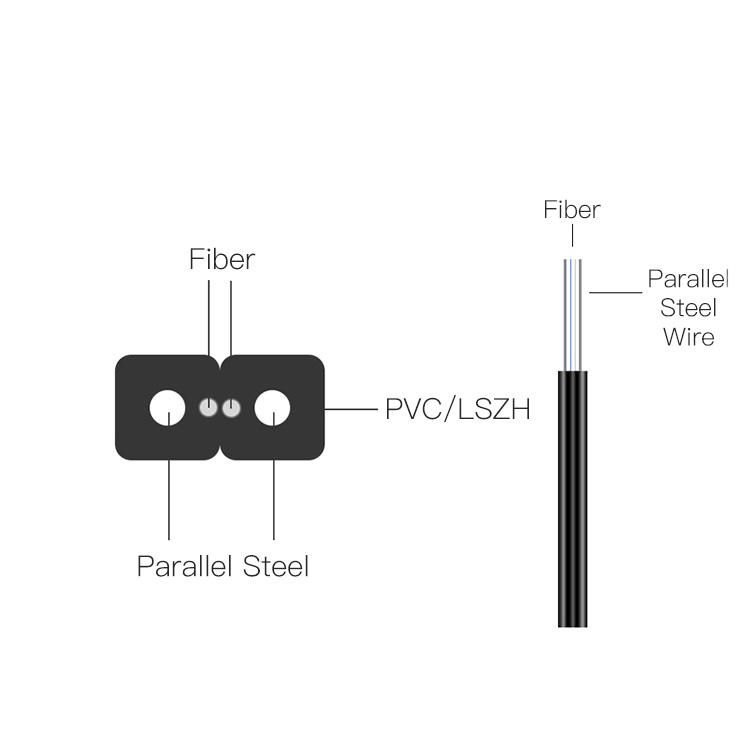

Structure &Properties:
1.Good mechanical and environmental characteristics
2.Drop Cable 's Flame retardant characteristics meet the requirements of relevant standard
3.The mechanical characteristics meet the requirements of relevant standard
4.Soft, flexible, easy to lay and splice and with big capacity data transmission
5.Meets various requirements of market and clients


Applicable Fields:
This cable has been designed for access building cable with good performance and easy installation.


Technical Date:

ITEMS	UNITS	SPECIFICATION
Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100


Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

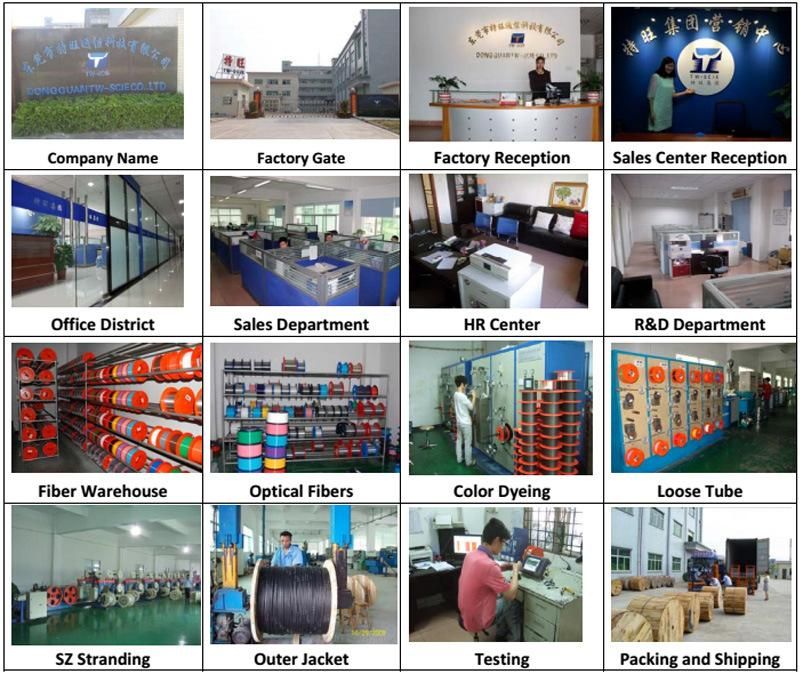

Company Show:




As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

If any questions, pls feel free to contact us. Hoping to hear your comments.

Thanks and best regards
