Aerial Single Mode Power Transmission System GYFTY 6/12/24 Core Fiber Optic Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Single-Mode or Multimode Fiber
- Connection Structure：Optical Fiber Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：Short Term 1500n; Long Term 600n
- Allowed Tensile Strength：Short Term 1000n; Long Term 300n
Base Info
- Model NO.：GYFTY Fiber Optic Cable
- Core：2-288 Core
- Certification：RoHS, ISO9001, Reach, Tlc, etc
- Brand：Tw-Scie or OEM
- Sheath Material：MDPE , HDPE , LSZH PE
- Model No：GYFTY Fiber Optic Cable
- Fiber Count：2-288 Core
- Brand Name of Fiber：Corning,Yofc, Draka...as Your Requiremen
- Loose Tube Material：PBT
- Loose Tube Filling Material：Jerry

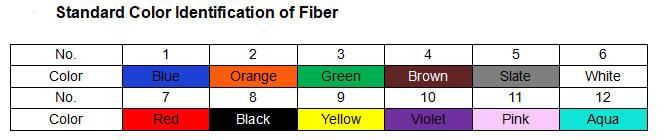

- Color of Loose Tube：Orange, Green, Brown, Red etc
- Central Strength Member：Non-Metallic
- Strength Material：Glass or Aramid Yarn
- Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
- Installation Style：Aerial
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, Guangdong, China (Mainland)
- HS Code：854470000
- Production Capacity：200km,Day
Description
Overview

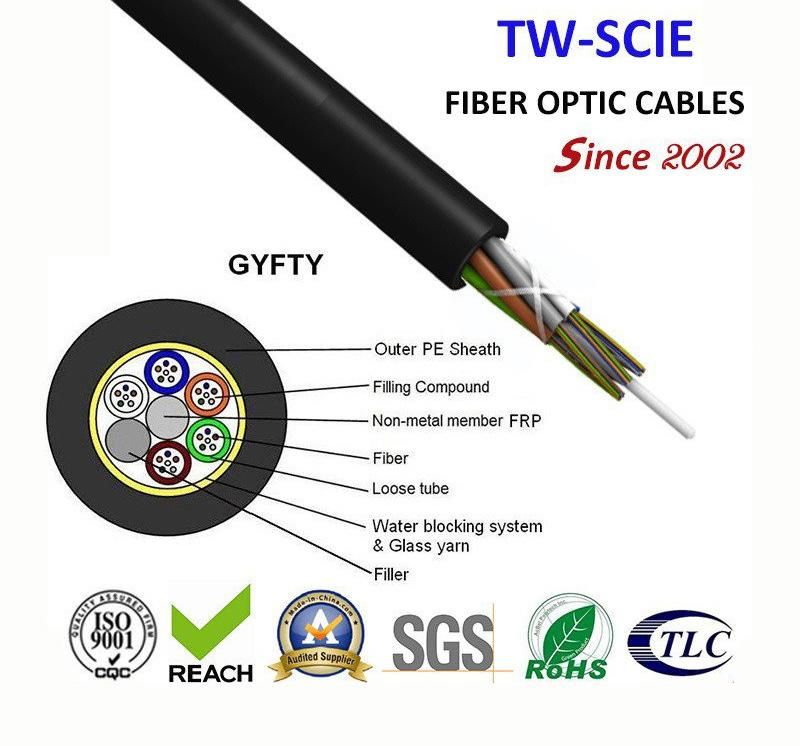

Product Structure
Optical Fiber Technical data:
Technical data:Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-36 10.4 90 10 times O.D. 20 times O.D. 1500 600 1000 300 38-60 10.2 110 62-72 11.7 115 74-96 13.4 150 98-120 15.0 190 122-144 16.6 230 146-216 16.9 240 218-240 19.3 305 242-288 21.5 375
Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.
Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.
Certifications
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Company Profile
Packaging & Shipping
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
If any questions, please feel free to contact Us. We would reply you within 24 hrs.
GYFTY Aerial Single Mode Fiber Optic Cable For Power Transmission System Details:
Optical Fiber Technical data:
Technical data:
Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.
Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.
Certifications
REACH
ROHSTLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Company ProfileExhibition

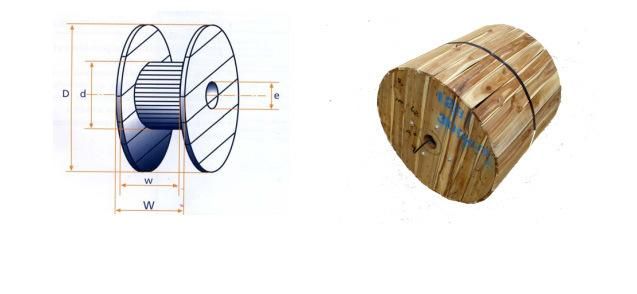

Packaging & ShippingCable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
