• Model NO.：E301, E401, E601
• Material Shape：Flat Wire
• Range of Application：Cold-Resistant
• Certification：ISO9001, CE
• Brand：Nybon
• Current-Carrying Capacity：20~150A
• Model：3p,4p,6p
• Color：Orange
• Warranty：1 Year
• Transport Package：Export Wooden Box
• Specification：6~25 SQMM
• Trademark：NYBON
• Origin：Henan, China
• HS Code：8426112000
• Production Capacity：100 Km ,Year

ModelSection area/ SQMME301-6 mm26E301-10 mm210E301-16 mm216E301-25 mm225



4 P - Busbar




ModelSection area/ SQMME401-6 mm26E401-10 mm210E401-16 mm216E401-25 mm225E401-35 mm235



6 P - Busbar




ModelSection area/ SQMME601-10 mm210E601-16 mm216



Feature:

1, its conductor is anaerobic copper with good conductive, quality pure and bright color.

2. Copper is in close contact with plastics and that busbar can't be poor contact because of vibrating.

3, its shell is PVC with shock resistance, uvioresistant and good physical.

4, it has no joint and small voltage drop.

5, it has few parts and can be installed easily.

6, Collector frame has a long arm and independent tension spring and that busbar has a big activity radian.

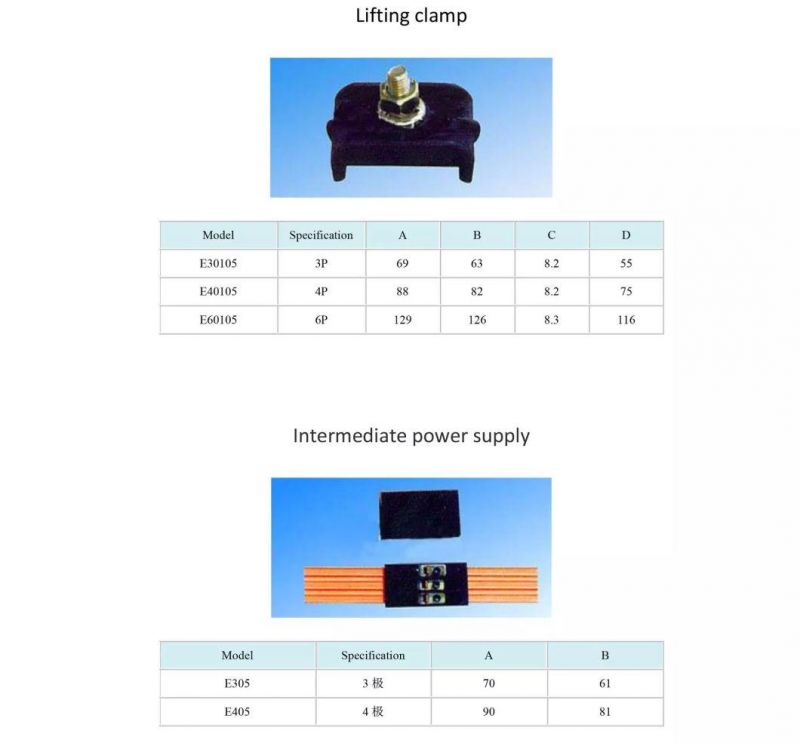

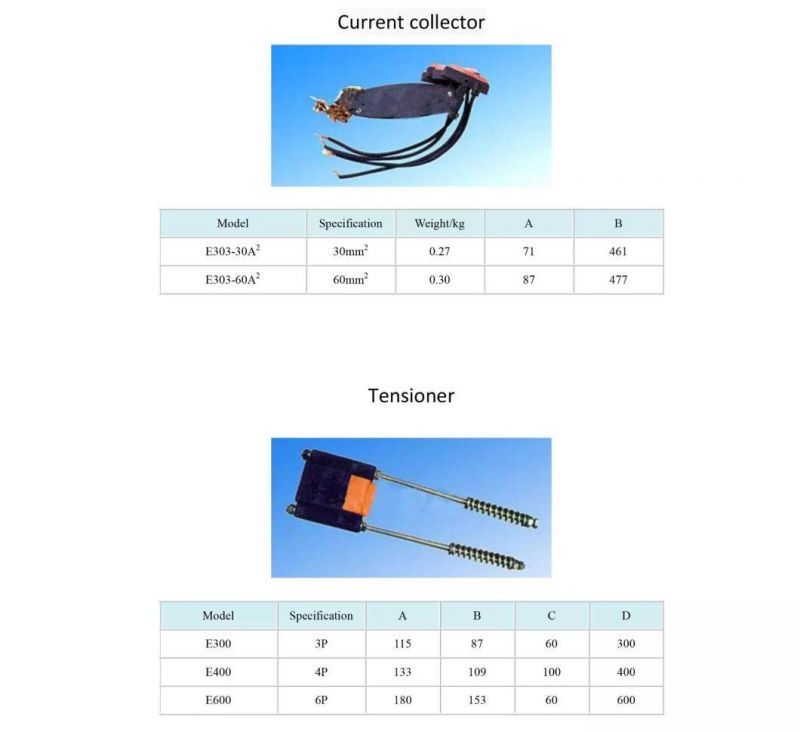

Parts:

Busbar's patrs cantain tensioner, current collector, lifting clamp, support , power supply and so on.

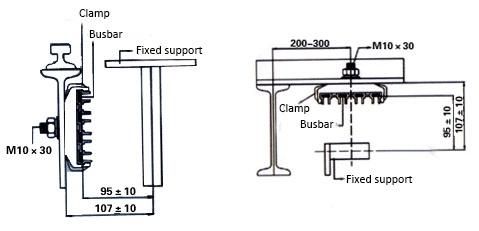

Busbar installation:

 There are two ways to install busbar, horizontal installation and vertical installation.

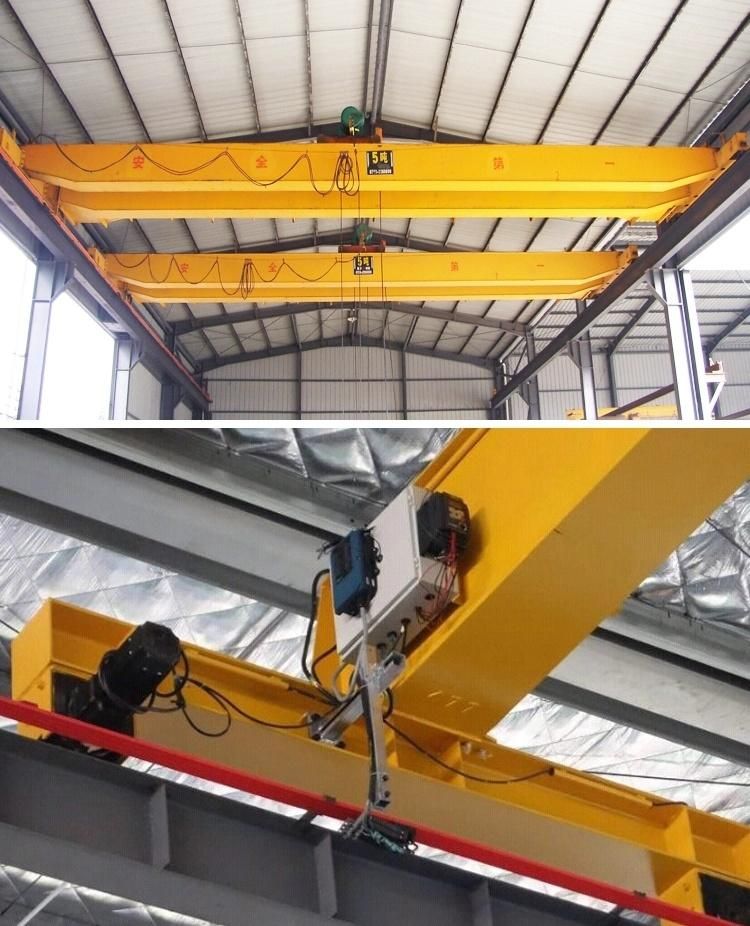

Application:




1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

A: Yes; We have;

6. Q: What kinds of products do you have?

A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty,
we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
