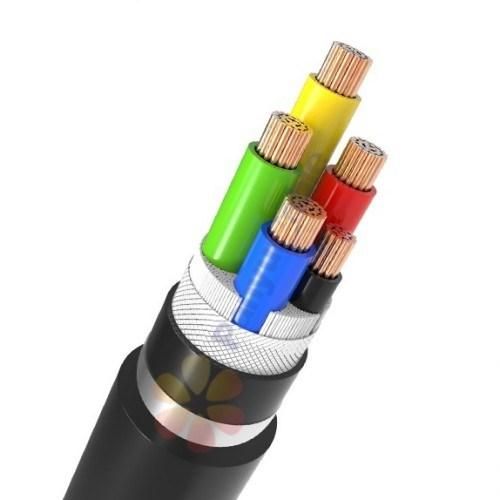

35mm2 50mm2 95mm2 120mm2 185mm2 240mm2 4 Core Power Cable

People's Cable Group Co., Ltd.

Application：Overhead, Underground, Industrial, Power Station
Voltage：Low and Medium Voltage Cable
Current：DC & AC
Insulation Material：XLPE
Sheath Material：PVC
Material Shape：Round Wire

Base Info

Model NO.：4 Core Power Cable
Wire Core Material：Bare Copper Wire
Certification：CCC, BV SGS TUV
Model：Swa Cable
Brand：Rmjt
Insulation Color：Red, Black, Yellow, Blue, Green, Grey and So on
Standard：IEC, UL, BS, VDE, AS,NZS or According to You.
Conductor Class：Calss 1, Class2, Class 5, Class6
OEM：Yes
Production Time：7-30days
Transport Package：Drum
Specification：6-630mm2
Trademark：RMJT
Origin：China
HS Code：8544492100
Production Capacity：1000000km Per Year

Description

^{_{Rated voltage (kv)
Sectional area (mm2)
No. of core}}^{_{1st class}}^_0.6/1^_1.8/3^_3.6/6^_6/10^_8.7/15^_12/20^_18/30^_21/35^{_{2nd class}}^_1/1^_3/3^_6/6^_8.7/10^_12/15^_18/20^_-^_26/35^{_{1 Core}} ^_1.5-800^_25-800^_25-1200^_25-1200^_35-1200^_50-1200^_50-1200^_50-1200^{_{2 Core}} ^_1.5-185^_25-185 ^{_{3 Core}} ^_1.5-400^_25-400^_25-400^_25-400^_35-400^_50-400^_50-400^_50-400^{_{4 Core}} ^_2.5-400^_25-400 ^{_{5 Core}} ^_2.5-400^_25-400
^{_{2). DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.}}^{_{Nominal section area (mm2)}}^_1.5^_2.5^₄^₆^₁₀^₁₆^₂₅^₃₅^₅₀^₇₀^₉₅^₁₂₀^₁₅₀^₁₈₅^₂₄₀^₃₀₀^₄₀₀^₅₀₀^₆₃₀^₈₀₀^{_{Copper core}}^_12.1^_7.41^_4.61^_3.08^_1.83^_1.15^_0.727^_0.524^_0.387^_0.268^_0.193^_0.153^_0.124^_0.099^_0.0754^_0.0601^_0.047^_0.0366^_0.0283^_0.0221^{_{Aluminum core}}^_18.1^_12.1^_7.41^_4.61^_3.08^_1.91^_1.2^_0.868^_0.641^_0.443^_0.32^_0.253^_0.206^_0.164^_0.125^_0.1^_0.778^_0.0605^_0.0469^_0.0367
_{^{3). Voltage Test and Partial Discharge Test}}^{_{Rate voltage Uo (kv)
Item}}^_0.6/1^_1.8/3^_3.6/6^{_{6/6 6/10}}^{_{8.7/10 8.7/15}}^_12/20^{_{18/20 18/30}}^_21/35^_26/35^_Voltage^{_{Test voltage}}^_3.5^_6.5^_12.5^₂₁^_30.5^₄₂^₆₃^_73.5^₉₁^{_{Test time}}^₅^₅^₅^₅^₅^₅^₅^₅^₅^{_{Partial discharge test}}^{_{Test voltage}}^_-^_-^_6.2^_10.4^_15.1^_20.8^_31.1^_36.3^₄₅^{_{Discharge capacity}}^_-^_-^₁₀^₁₀^₁₀^₁₀^₁₀^₁₀^₁₀ 35mm2 50mm2 95mm2 120mm2 185mm2 240mm2 4 Core Power Cable

Package
_{Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.}

35mm2 50mm2 95mm2 120mm2 185mm2 240mm2 4 Core Power Cable

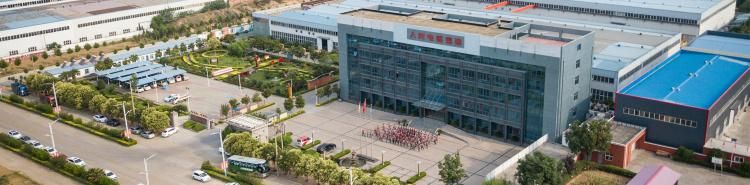

^{_{About us}}

^{_{We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.}}

35mm2 50mm2 95mm2 120mm2 185mm2 240mm2 4 Core Power Cable

^_Certificate

_{^{As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.}}
35mm2 50mm2 95mm2 120mm2 185mm2 240mm2 4 Core Power Cable

^{_{Customer Visit

We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!}}
