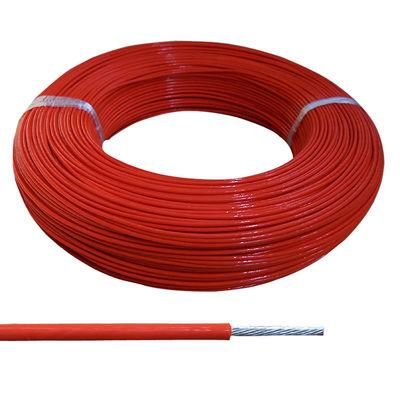

UL758 RoHS Compliance FEP High Temperature Wire UL1332
CB (XIAMEN) INDUSTRIAL CO., LTD.- Type：Insulated
- Conductor Type：Stranded
- Application：Interal Wiring of Vehicle
- Conductor Material：Copper
- Sheath Material：No
- Insulation Material：PVC
Base Info
- Model NO.：UL1332
- Material Shape：Round Wire
- Range of Application：Wiring
- Certification：ISO9001, UL, RoHS, Reach
- Brand：Bort
- Transport Package：Roll, Customization
- Specification：AWG12-30
- Trademark：Bort
- Origin：China
- HS Code：8544492900
- Production Capacity：500000km,Per Year
Description
AWGNO.of Cond
(mm) Conductor Dia
(mm) Insulation Thickness
(mm) Overall Diameter
(mm) Conductor resistance 20ºC
(Ω/KM) Nom. Min. Min. Max. 10 37/0.42 2.94 0.35 0.30 3.64 ±0.15 3.54 12 37/0.374 2.62 0.35 0.30 3.32 ±0.15 5.64 14 1/1.63 1.63 0.35 0.30 2.33 ±0.10 8.96 14 19/0.361 1.85 0.35 0.30 2.60 ±0.10 8.96 16 19/0.287 1.50 0.33 0.30 2.16 ±0.10 14.60 16 26/0.251 1.50 0.33 0.30 2.14 ±0.10 14.60 18 19/0.235 1.18 0.33 0.30 1.84 ±0.10 23.20 20 19/0.19 0.95 0.33 0.30 1.40 ±0.10 36.70 22 19/0.15 0.76 0.33 0.30 1.40 ±0.10 59.40 24 19/0.12 0.61 0.33 0.30 1.26 ±0.10 94.20 24 7/0.20 0.61 0.33 0.30 1.26 ±0.10 94.20 26 19/0.1 0.50 0.33 0.30 1.15 ±0.10 150.00 26 1/0.404 0.40 0.33 0.30 1.06 ±0.10 150.00 26 7/0.16 0.48 0.33 0.30 1.15 ±0.10 150.00 28 7/0.127 0.39 0.33 0.30 1.05 ±0.10 227.00 30 7/0.1 0.30 0.33 0.30 0.96 ±0.10 361.00 30 1/0.254 0.25 0.33 0.30 0.92 ±0.10 361.00
(mm)
(mm)
(mm)
(mm)
(Ω/KM)
