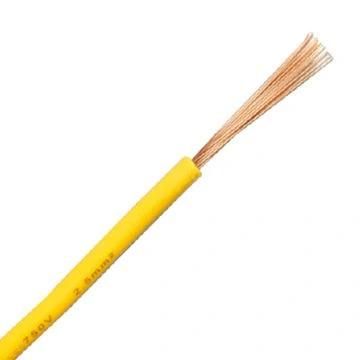

600V AC, 750V DC Copper Conductor XLPE Insulation Cable UL3289

CB (XIAMEN) INDUSTRIAL CO., LTD.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Interal Wiring of Vehicle
  • Conductor Material：Copper
  • Sheath Material：No
  • Insulation Material：PVC

Base Info

  • Model NO.：UL3289
  • Material Shape：Round Wire
  • Range of Application：Wiring
  • Certification：ISO9001, UL, RoHS, Reach
  • Brand：Bort
  • Transport Package：Roll, Customization
  • Specification：AWG12-30
  • Trademark：Bort
  • Origin：China
  • HS Code：8544492900
  • Production Capacity：500000km,Per Year

Description

 ConductorFinished productMaximum Resistance at 20ºCDIELECTRIC STRENGTH
(VAC,1min)AWGNO.of CondDIA.Insulation Thick.ODNo./mmmmmmmmΩ/mm307/0.10.30.801.90381.002000287/0.1270.380.802.00239.002000267/0.160.480.802.10150.0020002411/0.160.610.802.2594.2020002217/0.160.760.802.4059.4020002026/0.160.940.802.5536.7020001816/0.2541.170.802.7523.2020001626/0.2541.490.803.1014.6020001441/0.2541.880.803.508.9620001265/0.2542.360.804.005.642000107/15/0.2543.40.805.053.542000
600V AC, 750V DC Copper Conductor XLPE Insulation Cable UL3289
