Hard Drawn Bare Copper Wire Stranded Conductor
People's Cable Group Co., Ltd.- Application：Overhead, Construction,Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare Copper Conductor
- Sheath Material：Bare Copper Conductor
- Material Shape：Round Wire
Base Info
- Model NO.：Copper Conductor
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Bare Copper Conductor
- Brand：Rmjt
- Bare Copper Conductor Voltage：Low Voltage,Medium Voltage,High Voltage
- Bare Copper Conductor Core Material：Copper
- Bare Copper Conductor HS Code：7413000000
- Bare Copper Conductor Supplier′s Nature：Manufacturer
- Bare Copper Conductor Standard：BS 7884
- Transport Package：Wooden Drum or as Request
- Specification：10-1500mm2
- Trademark：RMJT
- Origin：China
- HS Code：7413000000
- Production Capacity：50000km,Years
Description
AANominal Cross-sectional Area(AWG) Number of Wires/Diameter of Wires (mils) Nominal Cross-sectional Area(mm2) Max.D.C.resistance Of Conductor At 20ºC Appro.Weight Tensile Strength min/max Nominal Elongation,% min (lbs/1000ft) (Ω/km) (lbs/1000ft) (Kg/km) (Mpa) In 10 in.(250 mm) 4/0 7/173.9 107.2 0.0500 0.164 653.1 972.0 290/340 3.8 3/0 7/154.8 85.0 0.0630 0.207 518.1 771.1 295/345 3.6 2/0 7/137.9 67.4 0.0795 0.261 410.9 611.5 305/350 3.2 1/0 7/122.8 53.5 0.100 0.328 325.8 484.9 310/360 3.0
ASTM B2 & B8SizeStranding Stranding Class Weight Diameter (mils) Medium-Hard Drawn Individual Wires Complete Conductor Rated Strength DC Resistance @20ºC (AWG-MCM) Number of Wires (lbs/1000 ft) (lbs) (ohms/1000 ft) 8 7 B 51 49 146 610 0.6629 6 7 B 81 61 184 959 0.4169 4 7 A, B 128.9 77 232 1505 0.2622 3 7 A, B 162.5 87 260 1885 0.2079 2 7 A, B 204.9 97 292 2360 0.1650 1 7 A 258.4 109 328 2955 0.1309 1/0 7 A, AA 326.1 123 368 3705 0.1037 2/0 7 A, AA 410.9 138 414 4640 0.08224 2/0 19 B 410.9 84 418 4765 0.08224 3/0 7 A, AA 518.1 155 464 5812 0.06522 4/0 7 A, AA 653.3 174 522 7278 0.05172 4/0 19 B 653.3 106 528 7479 0.05172 250 19 A 771.9 115 574 8836 0.04378 250 37 B 771.9 82 575 8952 0.04378 300 19 A 926.2 126 628 10530 0.03648 350 19 A 1080.6 136 679 12200 0.03127 500 37 A, B 1543.8 116 814 17550 0.02189 600 37 A, AA 1852.5 127 891 21060 0.01825 750 61 A, B 2315.6 111 998 26510 0.01459 1000 61 A, B 3087.5 128 1152 35100 0.01094
BS 7884Nominal
Sectional Area Number & Diameter of Wire Overall Diameter Maximum Conductor Resistance @ 20°C Allowable Ampacities in Free Air Cable Weight (approx) Standard Packing mm² No. / mm mm Ω / km A kg / km m 10 7/1.35 4.05 1.83 90 90 1,000/R 16 7/1.70 5.10 1.15 125 143 1,000/R 25 7/2.14 6.42 0.727 160 227 1,000/R 35 19/1.53 7.65 0.524 200 314 1,000/R 50 19/1.78 8.90 0.387 250 428 1,000/R 70 19/2.14 10.70 0.268 310 618 1,000/R 95 19/2.52 12.60 0.193 380 858 1,000/R 120 37/2.03 14.21 0.153 440 1,097 1,000/R 150 37/2.25 15.75 0.124 510 1,334 1,000/R 185 37/2.52 17.64 0.0991 585 1,673 1,000/R 240 61/2.25 20.25 0.0754 700 2,200 1,000/R 300 61/2.52 22.68 0.0601 800 2,760 1,000/R 400 61/2.85 25.65 0.0470 900 3,350 1,000/R 500 61/3.20 28.80 0.0366 1,110 4451 1,000/R

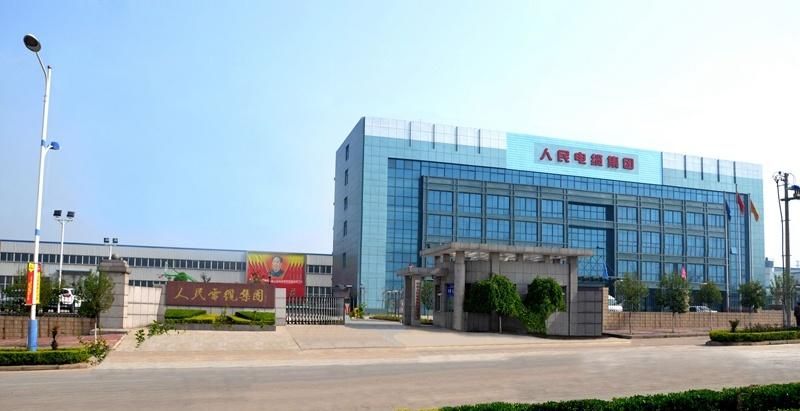

About Us
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

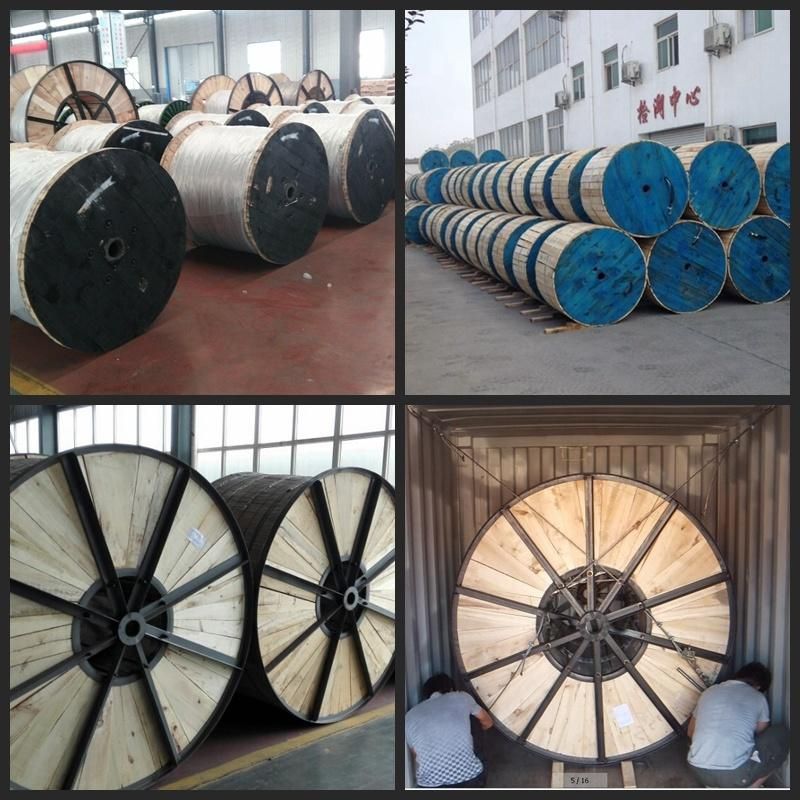

Packing & Delivery
Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Customers Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Our Service:
1.26 years production experience and 13 years export experience .
2.Products certification :ISO,SGS,UL,CE,BV,TUV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
