ADSS All Dieletric Nonmental Fiber/Fibre Optica/Optic/Optical Cable
TOPNET (SHENZHEN) COMMUNICATION CO.,LTD- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：ADSS
- Core：Multicore
- Certification：RoHS, ISO9001
- Brand：OEM
- Sheath Material：HDPE
- Style：Single & Double Jacket
- Length：2km,Durm, 3km,Drum, 4km,Drum

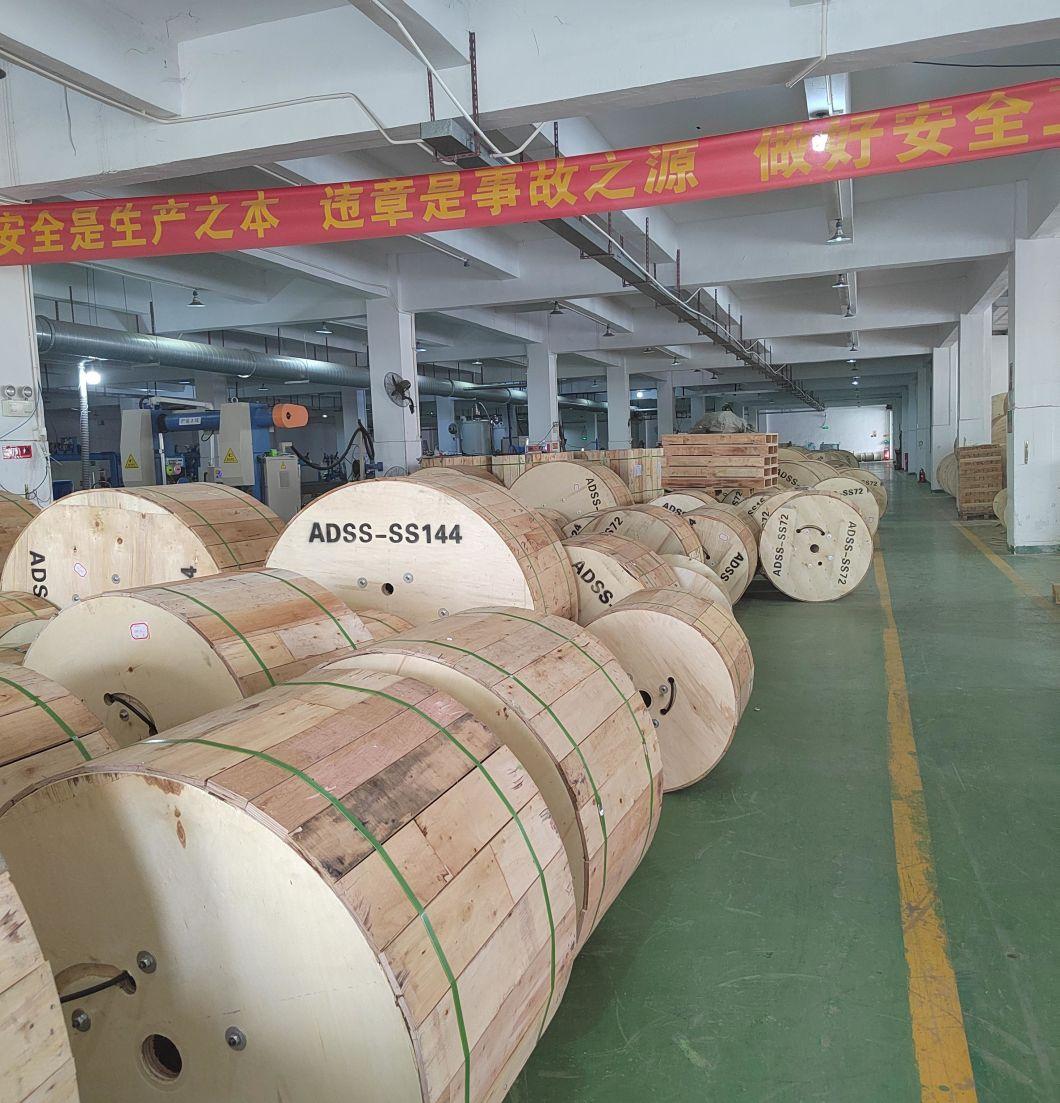

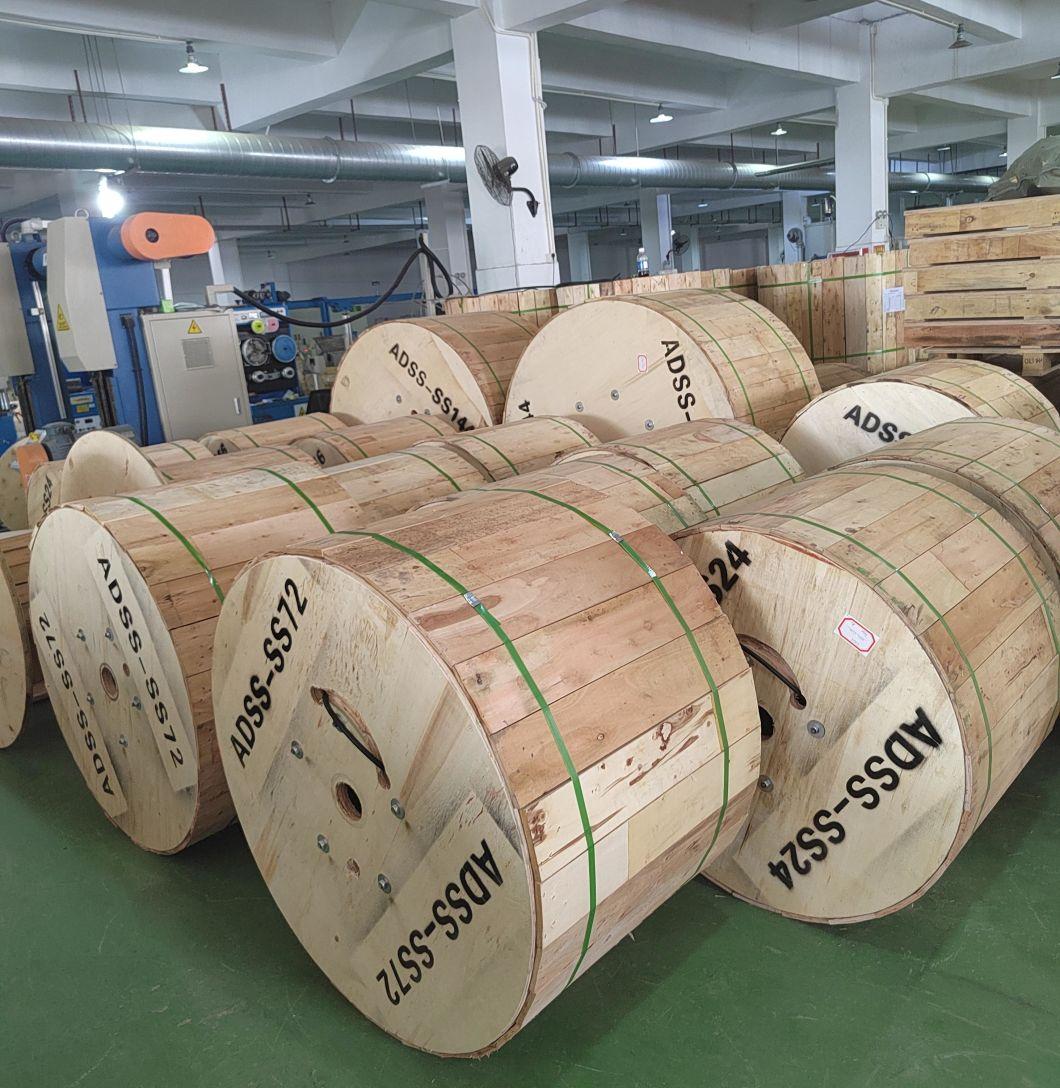

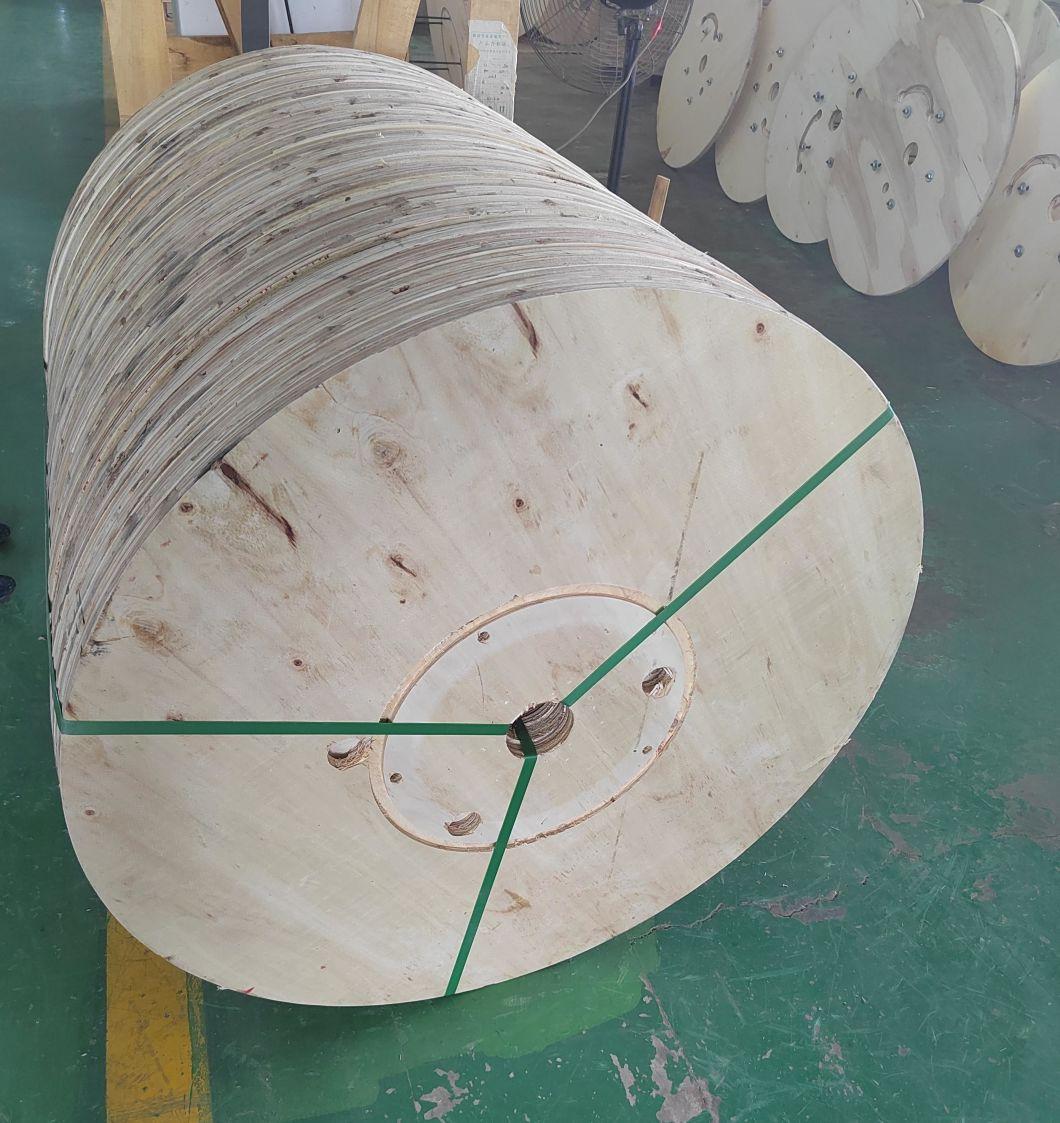

- Package Material：Fumigated Wooden Drum, Polywood Drum
- Transport Package：Fumigated Wooden Drum
- Specification：9.5mm,10.0mm,11.5mm,12.0mm
- Trademark：OEM
- Origin：China
- HS Code：8544700000
- Production Capacity：8000km Per Month
Description
Reference of outer diameter (mm)Reference of weight Ref.daily max.working Max allowable working tension KN Break strength KN Strength member CSA mm² Modulus of elasticty KN/mm² Heat expansion coefficient×10-6/k Suitable span kg/km (m) PE Sheath AT Sheath A B C D 12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100 13 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150 13.3 137 148 3 8 20 10.35 9.45 1.3 300 200 290 200 13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250 13.8 147 159 4.5 12 30 14.3 11.8 1 420 280 400 280 14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320 14.9 171 185 6.75 18 45 22 16.4 0.6 570 380 550 380 15.1 179 193 7.95 22 53 26.4 18 0.3 670 460 650 460 15.5 190 204 9 26 60 32.2 19.1 0.1 750 530 750 510 15.6 194 208 10.5 28 70 33 19.6 0.1 800 560 800 560 16.3 211 226 12.75 34 85 40 20.1 0.1 880 650 880 650 16.8 226 242 15.45 41 103 48 24 -0.4 1000 750 1000 760 17.2 236 253 16.2 45 108 51 25.1 -0.5 1100 800 1100 830 17.9 249 266 18 50 120 58.8 26.1 -0.6 1180 880 1180 900 Storage/Operating Temperature : -40ºC to + 70ºC Bandwidth Effective modal bandwidth 10 Gb/s Link Length Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm Typical Maximum Typical Maximum 1300nm Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m G652D 0.5/0.4 0.6/0.5 / / / / / G657A1 0.5/0.4 0.6/0.5 / / / / / G657A2 0.4/0.3 0.5/0.4 / / / / / G657B3 0.5/0.4 0.6/0.5 / / / / / 62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / / 50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / / OM1 50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / / OM2 OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150 OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300 OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550
FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.
2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
