PVC Insulated Non Sheathed Cables Electrical Flexible Cable Wire 10mm
HENAN BAOFENG CABLE CO., LTD.- Type：Insulated
- Conductor Type：Flexible
- Application：Overhead
- Conductor Material：Copper
- Sheath Material：None or PVC
- Insulation Material：PVC
Base Info
- Model NO.：HO7V-K
- Material Shape：Round Wire
- Certification：ISO9001, CE, CCC, RoHS
- Brand：Hnbf Cable
- Colour：Black, Red, Yellow or Others
- Rated Voltage：300,500V 450,750V 500,500V
- Standard：IEC, ASTM, IEC, BS, DIN, GB,T etc
- Operating Temperature Range：75°c for PE or 90°c for XLPE
- Number of Cores：1 Core, 2 Core, 3 Core
- Class of Conductor：Class 1, Class 2 or Class 5
- Insulation：PVC
- Sample：Free Sample
- Transport Package：Roll
- Specification：10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1
- Trademark：HNBF Cable
- Origin：China Henan
- HS Code：8544492100
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
Basic Info.
Model NO. HO7V-K Material Shape Round Wire Certification ISO9001, CE, CCC, RoHS Brand Hnbf Cable Colour Black, Red, Yellow or Others Rated Voltage 300/500V 450/750V 500/500V Standard IEC, ASTM, IEC, BS, DIN, GB/T etc Operating Temperature Range 75°c for PE or 90°c for XLPE Number of Cores 1 Core, 2 Core, 3 Core Class of Conductor Class 1, Class 2 or Class 5 Insulation PVC Sample Free Sample Transport Package Roll Specification 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1 Trademark HNBF Cable Origin China Henan HS Code 8544492100 Production Capacity 500 Kilometer/Kilometers Per MonthProduct Description
Product Description
pvc insulated non sheathed cables electrical flexible cable wire 10mm
1). Voltage: 300/500V, 450/750V
2). Application:electric equipment, household, and electrical appliance.

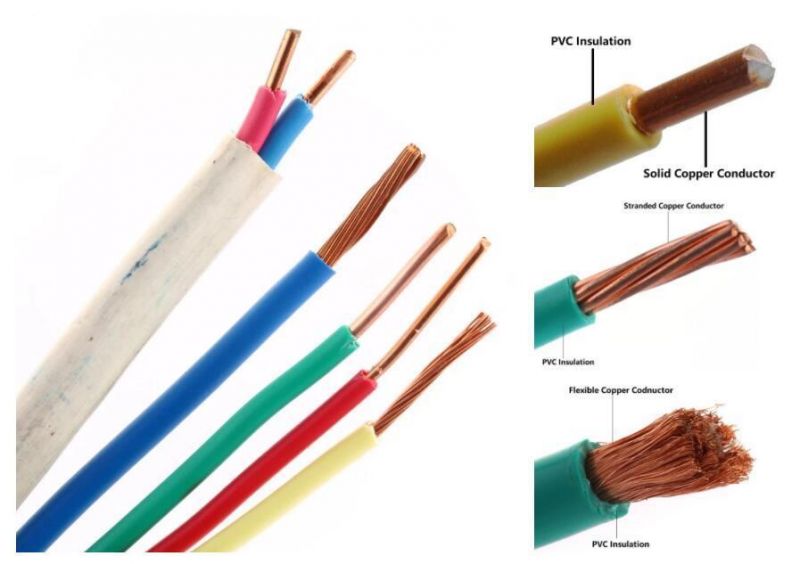

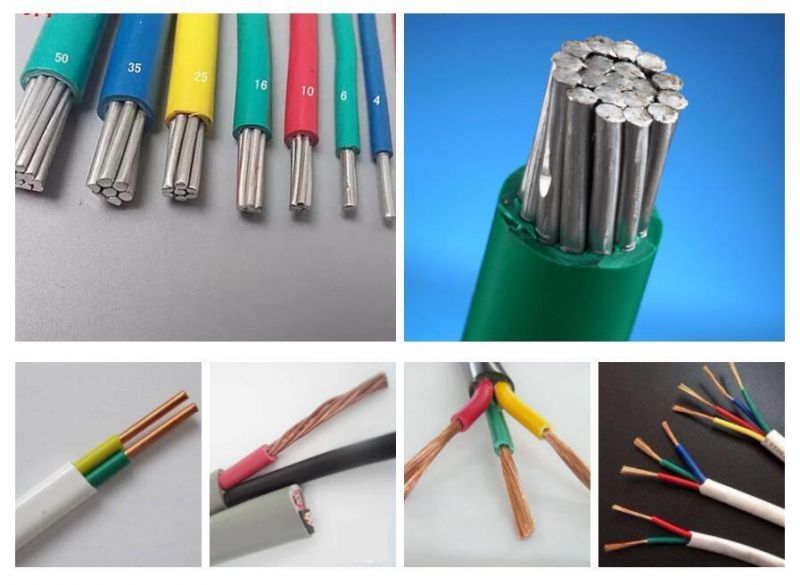

3). Specification (Electrical wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVC insulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrical wire
4). Standards :IEC60227 DIN VDE0281-5 BS6004/6007/6360N AS/NZS etc.
5). Norminal cross section size of conductor:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2

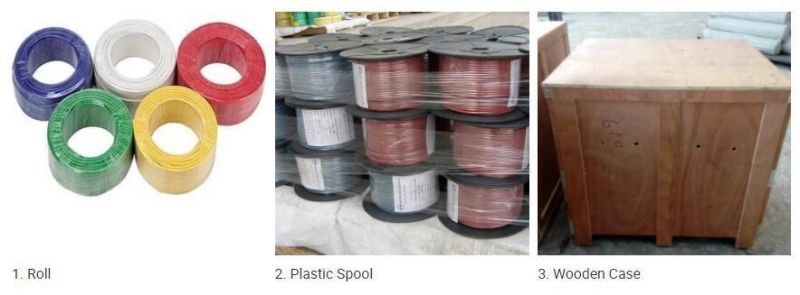

Packing Details : Roll, Plastic Spool, Wooden Case or your requirement.
Delivery Details : 3-30 days.
Our main products:
* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.
* Power Cable including low voltage and high voltage up to 35kV and lower.
Our the other products:
*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.
