Overhead Bare Aluminum Conductor ASTM Standard Drake 795mcm ACSR Conductor
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead, Construction, Power Station
- Conductor Material：Aluminum
- Sheath Material：Bare Conductor
- Insulation Material：Bare
Base Info
- Model NO.：ACSR Conductor
- Material Shape：Round Wire
- Range of Application：Power Distribution and Transmission
- Certification：ISO9001, CCC, ISO14001, BV, SGS
- Brand：Rmjt
- Product Name：Overhead Bare Aluminum Conductor ASTM Standard Dra
- ACSR Conductor Voltage：Low Voltage, Medium Voltage, High Voltage
- Core No：7~91
- Shipment Terms：Fob CNF CIF
- Color：Silver or Gray
- Standard：ASTM, CSA, BS, DIN, IEC, NFC
- Related Voltage：0.6,1kv; 8.7,15kv; 12,20kv; 21,35kv; 26,35kv
- Type of Company：Professional Manufacturer
- ACSR Code：Turkey, Swan, Robin, Lbis, Drake,Rabbit, Dog, Goat
- Advantages：High Quality, Competitive Price, Fast Delivery
- Transport Package：Wooden Drum or as Request
- Specification：10-1500mm2
- Trademark：RMJT
- Origin：China
- HS Code：7614100000
- Production Capacity：5000000km,Year
Description
mm²mm mm mm mm kg/km kg Ω/km Wren 8 8.37 9.81 6×1.33 1×1.33 3.99 1.33 33.8 340 3.4017 Turkey 6 13.3 15.48 6×1.68 1×1.68 5.03 1.68 53.7 540 2.1135 Swan 4 21.15 24.71 6×2.12 1×2.12 6.35 2.12 85.4 846 1.3278 Swanate 4 21.15 26.52 7×1.96 1×2.61 6.53 2.61 99.7 1067 1.3133 Sparrow 2 33.62 39.23 6×2.67 1×2.67 8.03 2.67 136 1289 0.8343 Sparate 2 33.62 42.13 7×2.47 1×3.30 8.26 3.3 159 1650 0.8251 Robin 1 42.41 49.48 6×3.00 1×3.00 9.02 3 171 1612 0.6621 Raven 1/0 53.51 62.39 6×3.37 1×3.37 10.11 3.37 216 1987 0.5243 Quail 2/0 67.44 78.65 6×3.78 1×3.78 11.35 3.78 273 2401 0.416 Pigeon 3/0 85.02 99.23 6×4.25 1×4.25 12.75 4.25 344 3006 0.3304 Penguin 4/0 107 125 6×4.77 1×4.77 14.3 4.77 433 3787 0.2618 Owl 266.8 135 153 6×5.36 7×1.79 16.09 5.37 507 4330 0.2109 Waxwing 266.8 135 143 18×3.09 1×3.09 15.47 3.09 431 3117 0.2119 Partridge 266.8 135 157 26×2.57 7×2.00 16.31 5.98 547 5113 0.21 Oatrich 300 152 177 26×2.73 7×2.12 17.27 6.36 614 5755 0.1867 Piper 300 152 188 30×2.54 7×2.54 17.78 7.62 697 7000 0.1902 Merlin 336.4 171 180 18×3.47 1×3.47 17.37 3.47 544 3931 0.168 Linnet 336.4 171 198 26×2.89 7×2.25 18.31 6.74 689 6730 0.1663 Oriole 336.4 171 210 30×2.69 7×2.69 18.82 8.07 784 7865 0.1654 Chickadee 397.5 201 213 18×3.77 1×3.77 18.87 3.77 642 4499 0.1421 Ibis 397.5 201 234 26×3.14 7×2.44 19.89 7.32 814 7488 0.1411 Lark 397.5 201 248 30×2.92 7×2.92 20.47 8.77 927 9202 0.1401 Pelican 477 242 255 18×4.14 1×4.14 20.68 4.14 771 5347 0.1184 Flicker 477 242 273 24×3.58 7×2.39 21.49 7.16 914 7790 0.1178 Hawk 477 242 281 26×3.44 7×2.67 21.79 8.03 977 8880 0.1171 Hen 477 242 298 30×3.20 7×3.20 22.43 9.61 1112 10783 0.1165 Heron 500 253 312 30×3.28 7×3.28 22.96 9.84 1162 11090 0.1141 Osprey 556.5 282 298 18×4.47 1×4.47 22.33 4.47 899 6233 0.1014 Parakeet 556.5 282 319 24×3.87 7×2.58 23.22 7.73 1067 8999 0.101 Dove 556.5 282 328 26×3.72 7×2.89 23.55 8.66 1140 10019 0.1007 Eagle 556.5 282 348 30×3.46 7×3.46 24.21 10.39 1298 12606 0.1001 Peacock 605 307 346 24×4.03 7×2.69 24.21 8.03 1161 9771 0.0928 Squab 605 307 357 26×3.87 7×3.01 24.54 9.04 1240 11018 0.0925 Teal 605 307 376 30×3.61 19×2.16 25.25 10.82 1398 13567 0.0919 Duck 605 307 346 54×2.69 7×2.69 24.21 8.07 1158 10210 0.0944 Kingbird 636 322 340 18×4.78 1×4.78 23.88 4.78 1028 7128 0.0895 Rook 636 322 364 24×4.14 7×2.76 24.82 8.28 1219 10298 0.0883 Grosbeak 636 322 375 26×3.97 7×3.09 25.15 9.27 1302 11427 0.0897 Egret 636 322 396 30×3.70 19×2.22 25.88 11.1 1471 14302 0.0876 Goose 636 322 364 54×2.76 7×2.76 24.84 8.28 1218 10730 0.0898 Flamingo 666.6 338 382 24×4.23 7×2.82 15.4 8.46 1278 10751 0.0843 Gull 666.6 338 382 54×2.82 7×2.82 25.38 8.46 1276 11140 0.0587 Starling 715.5 363 422 26×4.21 7×3.28 26.7 9.83 1465 12865 0.0781 Redwing 715.5 363 445 30×3.92 19×2.35 27.46 11.76 1653 15649 0.0778 Cuckoo 795 403 455 24×4.62 7×3.08 27.74 9.25 1524 12649 0.0719
Production Progress
Package

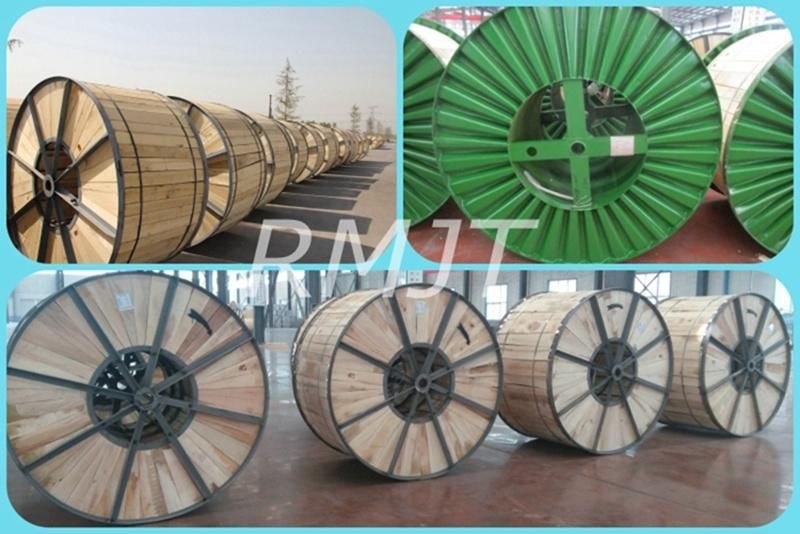

Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Customers Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
About Us

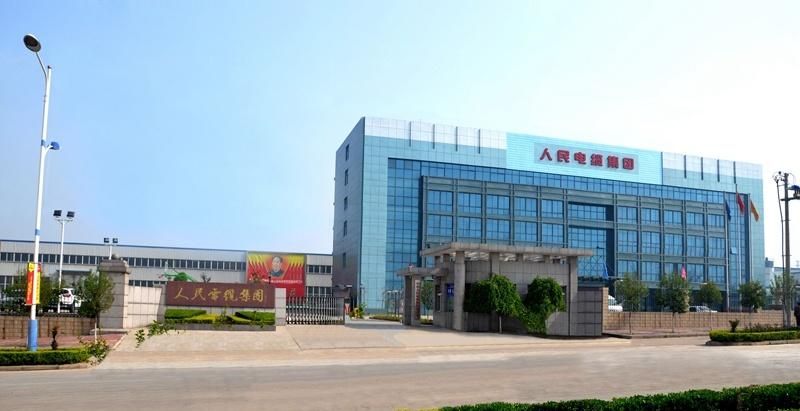

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Our Service:
1.26 years production experience and 13 years export experience .
2.Products certification :ISO,SGS,UL,CE,BV,TUV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Contact us
