Overhead AWG 2/0 Stranded All Aluminum Bare AAC Conductor
People's Cable Group Co., Ltd.- Application:Overhead, Underground, Power Station
- Voltage:Low, Medium, High Voltage
- Current:DC & AC
- Insulation Material:Bare
- Sheath Material:Bare
- Material Shape:Round Wire
Base Info
- Model NO.:AAC conductor
- Wire Core Material:Aluminum
- Certification:ISO9001, CCC, BV, SGS
- Model:Stranded
- Brand:Rmjt
- Product Name:Overhead AWG 2,0 Stranded All Aluminum Bare AAC Co
- Standard:ASTM, CSA, BS, DIN, IEC, NFC
- Advantages:High Quality, Competitive Price, Fast Delivery
- AAC Code:Poppy, Aster, Oxlip, Syringa, Lilac
- OEM:Yes
- Related Voltage:0.6,1kv; 8.7,15kv; 12,20kv; 21,35kv; 26,35kv
- Type of Company:Professional Manufacturer
- Sample:Free
- Exoprt Experience:South America, Africa, Middle East Ect
- Delivery Time:15-25days
- Transport Package:Wooden Drum or Steel Wooden Drum
- Specification:10mm2-1500mm2
- Trademark:RMjT
- Origin:Henan, China
- HS Code:7614900000
- Production Capacity:1000 Tons Each Month
Description
Total AreaStranding and wire diameter Approox. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg. AWG or MCM mm2 mm mm kg/km daN ohm/km PEACHBELL 6 13.29 7/1.554 4.67 37 249 2.1692 ROSE 4 21.16 7/1.961 5.89 58 396 1.3624 IRIS 2 33.61 7/2.474 7.42 93 597 0.8577 PANSY 1 42.39 7/2.776 8.33 117 732 0.6801 POPPY 1/0 53.48 7/3.119 9.36 147 873 0.5390 ASTER 2/0 67.42 7/3.503 10.51 186 1100 0.4276 PHLOX 3/0 85.03 7/3.932 11.80 234 1347 0.3390 OXLIP 4/0 107.23 7/4.417 13.26 296 1698 0.2688 VALERIAN 250 126.71 19/2.913 14.57 349 2062 0.2275 SNEEZEWORT 250 126.71 7/4.80 14.40 349 2007 0.2275 LAUREL 266.8 135.16 19/3.01 15.05 373 2200 0.2133 DAISY 266.8 135.16 7/4.96 14.90 373 2141 0.2133 PEONY 300 152.0 19/3.193 15.97 419 2403 0.1896 TULIP 336.4 170.45 19/3.381 16.91 470 2695 0.1691 DAFFODIL 350 177.35 19/3.447 17.24 489 2804 0.1625 CANNA 397.5 201.42 19/3.673 18.36 555 3184 0.1431 GOLDENTUFT 450 228.0 19/3.909 19.55 629 3499 0.1264 SYRINGA 477 241.68 37/2.882 20.19 666 3849 0.1193 COSMOS 477 241.68 19/4.023 20.12 666 3708 0.1193 HYACINTH 500 253.35 37/2.951 20.65 698 4035 0.1138

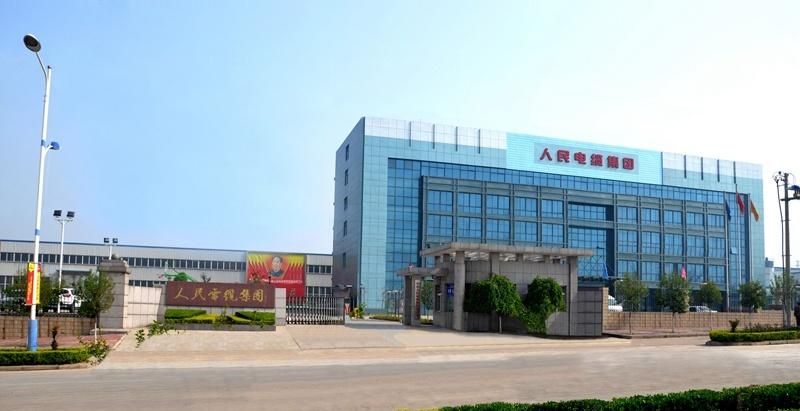

About UsPeople's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Packing & Delivery

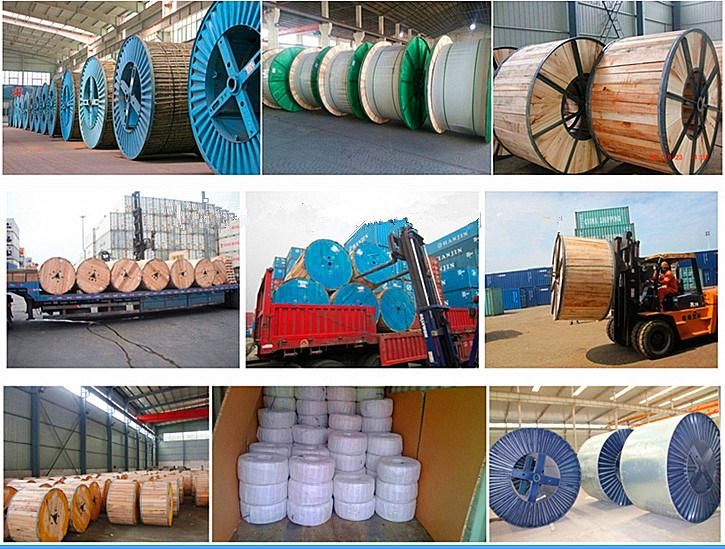

Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.

Customers Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!

Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

Our Service

FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
