• Model NO.：low voltage power cable
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：Cu,Al XLPE,PVC Sta,Swa Power Cable
• Brand：Hongda
• Armor：Steel Tape,Wire Armor
• Core：Single or Multi Cores
• Conductor Material：Cu,Al
• Standard：IEC60502 or IEC60228
• Insulated Color：Red, Blue, Yellow, Green,Black
• Sheath Color：Black
• Quality Guarantee：10 Years
• Manufacture：Yes
• Sample：Yes
• Transport Package：Wooden Drum
• Specification：1.5-1000mm2
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：3000km,Per Months

Basic Info.

Model NO. low voltage power cable Wire Core Material Copper or Aluminum Certification ISO, CCC, CE, RoHS Model Cu/Al XLPE/PVC Sta/Swa Power Cable Brand Hongda Armor Steel Tape/Wire Armor Core Single or Multi Cores Conductor Material Cu/Al Standard IEC60502 or IEC60228 Insulated Color Red, Blue, Yellow, Green/Black Sheath Color Black Quality Guarantee 10 Years Manufacture Yes Sample Yes Transport Package Wooden Drum Specification 1.5-1000mm2 Trademark Hongda Origin China, Henan HS Code 8544492100 Production Capacity 3000km/Per Months

Product Description

Low voltage  PVC insulated power cable with IEC srandard


Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70ºC.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160ºC.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0ºC.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

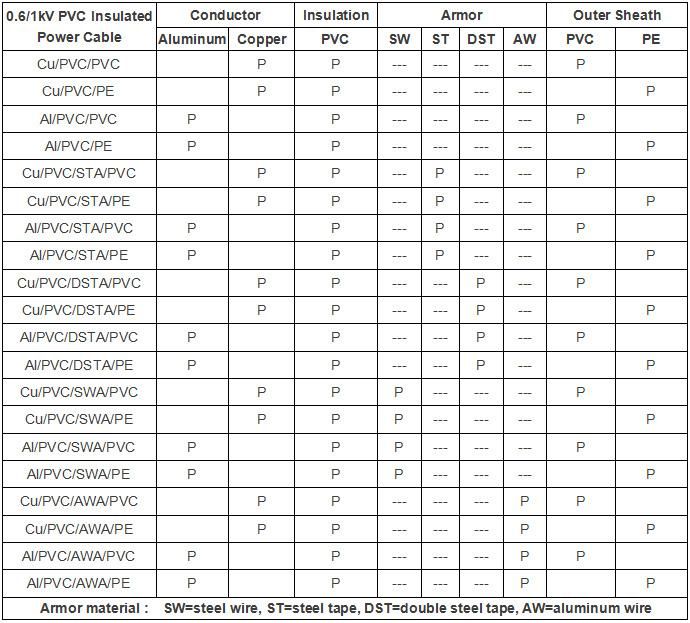

Construction:

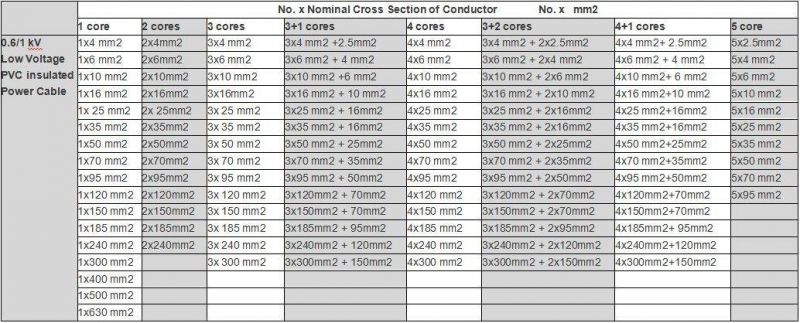

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Standards
GB/12706-2008, IEC60502-1,IEC 60228,IEC60332 BS 5467,IS 1554 , IS 7098 ect.
Hongda cable  can also design and produce for special application requirement.

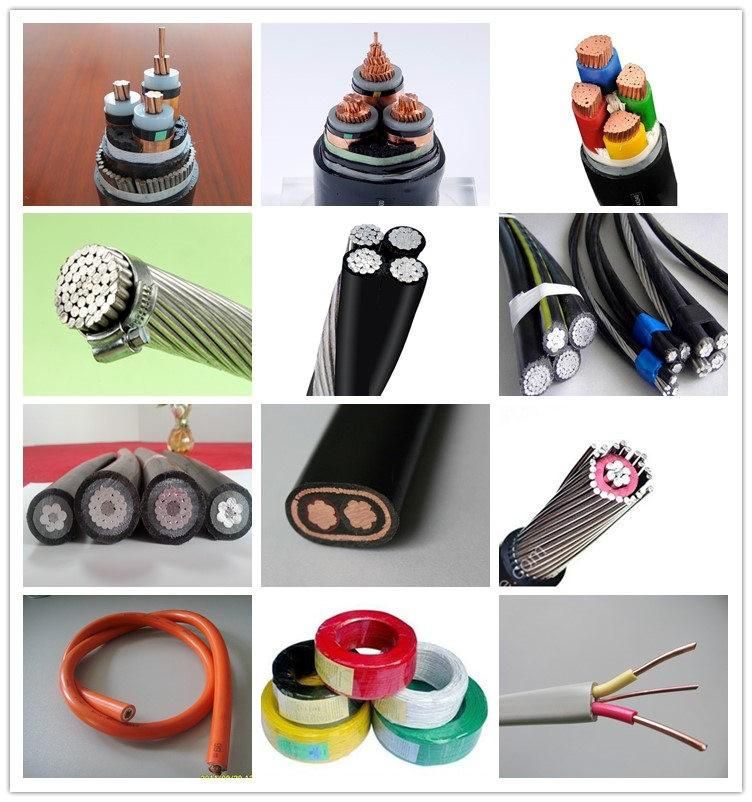

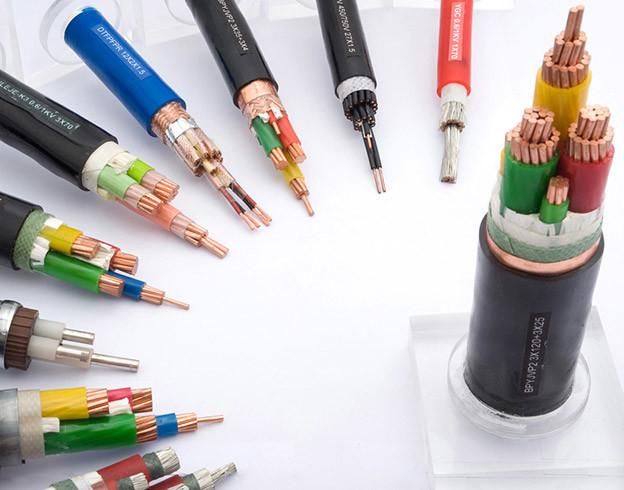

Main products

Chinese Type	Description	Core qty	Conductors range
YJV	Copper conductor, XLPE insulation, PVC outer sheath Power Cable	1 or 3	25~800mm2
YJY	Copper conductor, XLPE insulation, PE outer sheath Power Cable	1 or 3	25~800mm2
ZA-YJV  ZB-YJV  ZC-YJV	Copper conductor, XLPE insulation flame-retardant Power Cable	1 or 3	25~800mm2
WDZA-YJY  WDZB-YJY  WDZC-YJY	Copper conductor, XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1 or 3	25~800mm2

^{Packaging&Delivery}

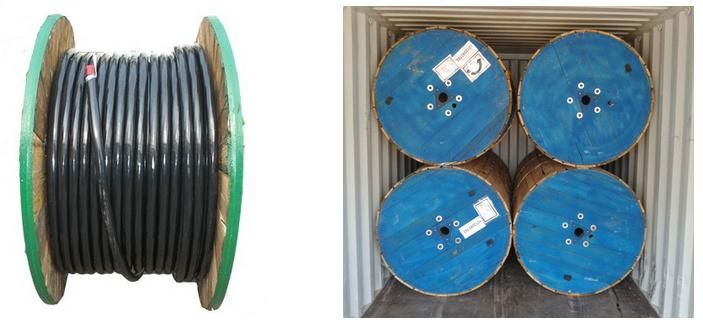

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)

 ^{Contact us}

Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
