• Model NO.：GYJXCH
• Brand：OEM
• Sheath Material：LSZH
• Place of Orign：Guangdong China
• Package：1km,Wooden Drum
• Steel：1.0mm
• Fiber：G652D,G657A1
• Fiber Account：1-2
• Model Number：FTTH
• Jacket：LSZH
• Strengthen Member：FRP or Steel Wire
• Transport Package：Wooden Drum
• Specification：330*330*270
• Trademark：TW-SCIE or OEM
• Origin：Dongguan
• HS Code：854470000
• Production Capacity：200km,Day

Basic Info.

Model NO. GYJXCH Brand OEM Sheath Material LSZH Place of Orign Guangdong China Package 1km/Wooden Drum Steel 1.0mm Fiber G652D,G657A1 Fiber Account 1-2 Model Number FTTH Jacket LSZH Strengthen Member FRP or Steel Wire Transport Package Wooden Drum Specification 330*330*270 Trademark TW-SCIE or OEM Origin Dongguan HS Code 854470000 Production Capacity 200km/Day

Product Description

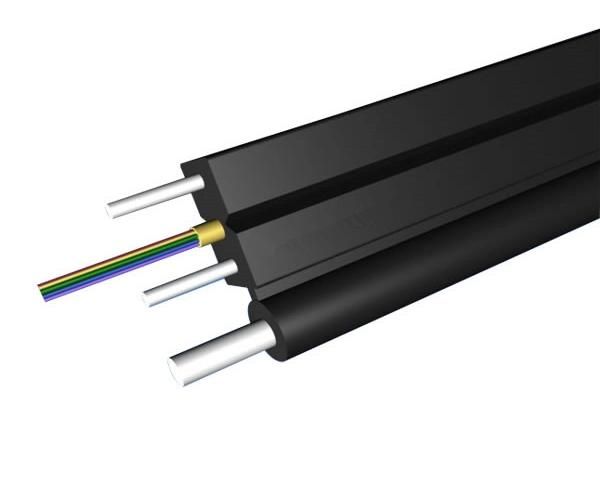

Drop Cable 1 Core with G657A Fiber


Product Description
Should be used Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring


Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands




Customization
--Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
--Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
--Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
--Cable Size: Nominal fiber size, but also other agreed size
--Delivery length: 1km or 2km, but also other agreed length
--Other requirements: Other special requirements agreed

*The cable model specifications, size and strength can made the suitalbe adjust according to the customer's requirements.

Instructions:
1. "Xn" means the table that fiber models. Can use G. 652, G. 657, G. 655 single-mode optical fiber or A1a, A1b multimode fiber;
Delivery length: 1 km, 2km or other user-specified length;
3. According to the YD/T1258.5-2005 jacket color, or it can also be a user of other colors as customers requriements;
4. Jacket materials can also be use other materials as requriements;

Type	Cores	Cable diameter(mm)	Short stretch(N)	Long-term tensile(N)	Short squash(N/100cm)	Long-term squash(N/100cm)	Static	Dynamic	Weight (Kg/Km)
FTTH--1Xn	1	2.0*3.0	30	60	300	1000	15D	30D	8
FTTH--2Xn	2	2.0*3.4	30	60	300	1000	15D	30D	8.5
FTTH--4Xn	4	2.0*3.8	30	60	300	1000	15D	30D	10

TAG:
Single Mode Fiber Optic Cable, 1 Core Outdoor Sm/Mm ,High Quality Drop Cable FTTH
