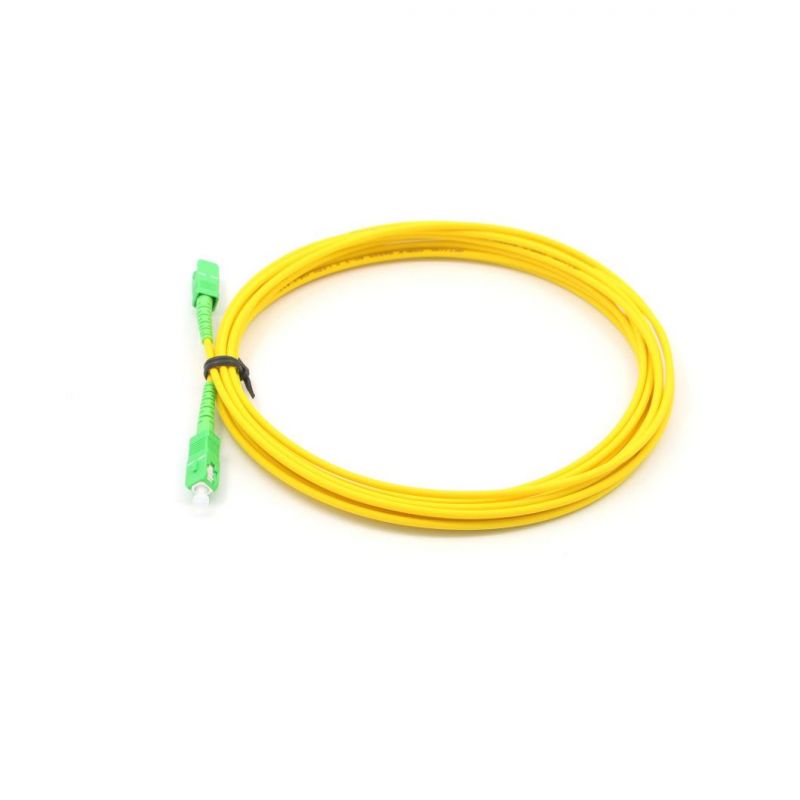

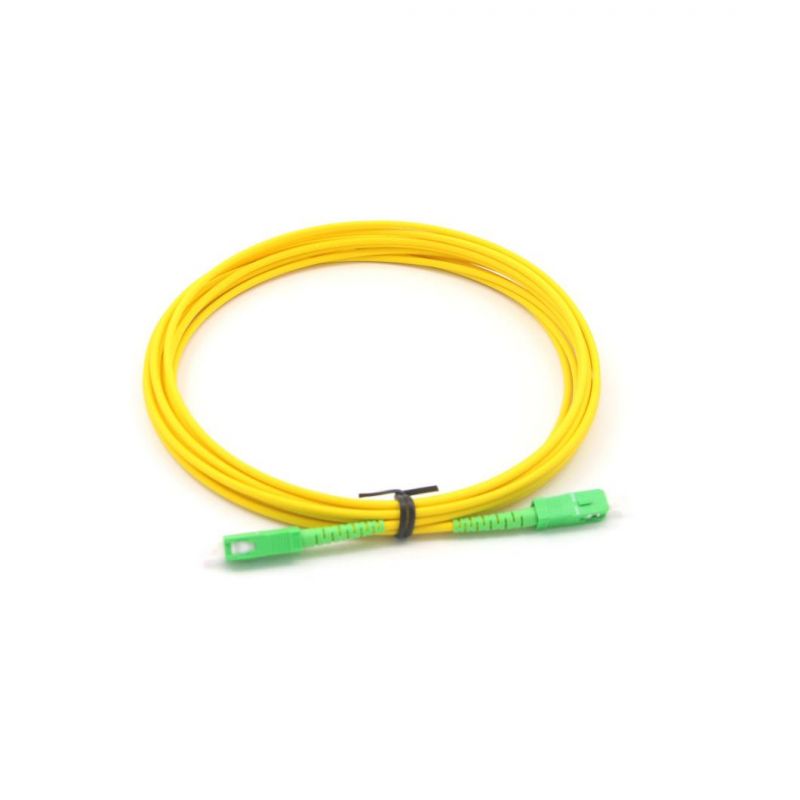

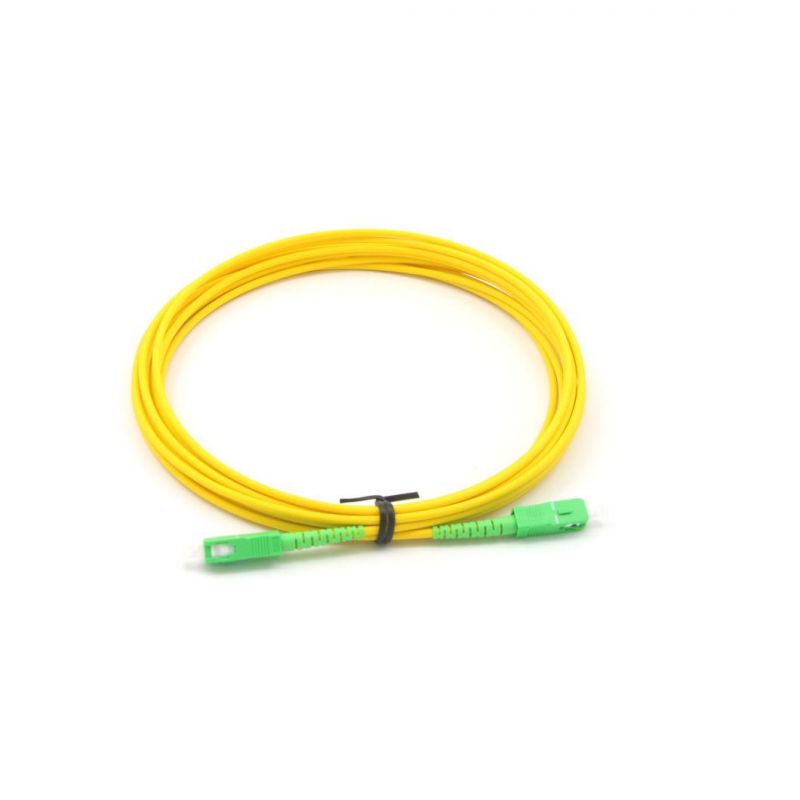

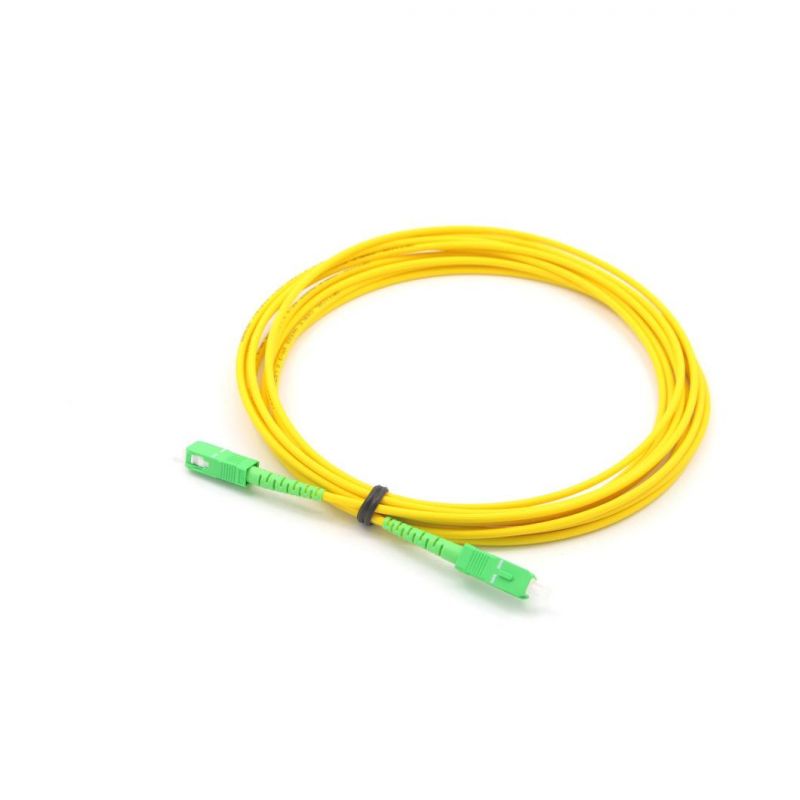

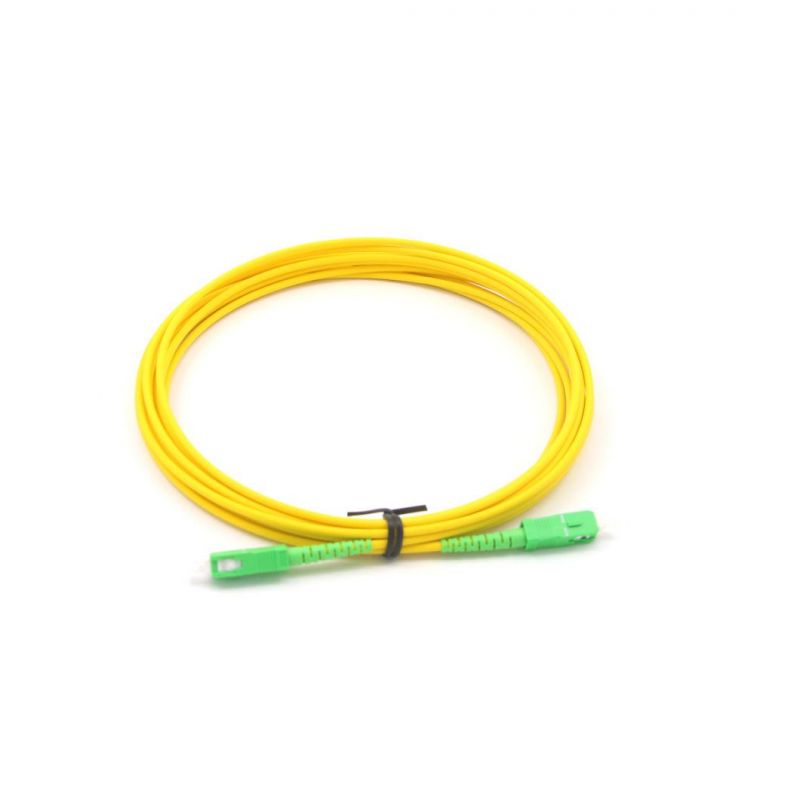

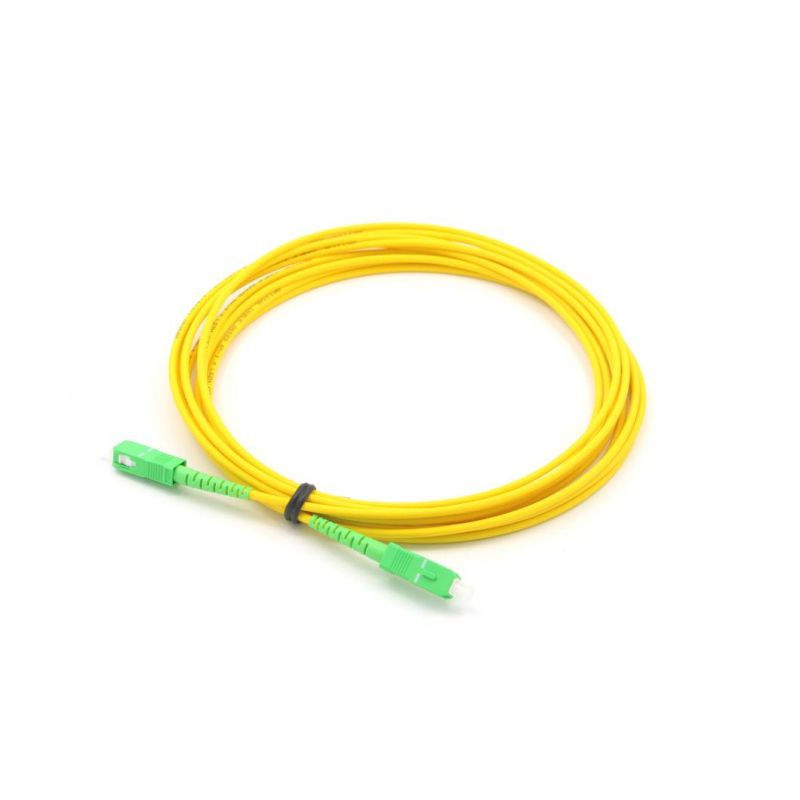

Sc/APC-Sc/APC Optical Fiber Jumpers Cable

Shenzhen KOC Communication Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Sc, LC, FC, St,
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：100N<1000N

Base Info

  • Model NO.：sc,apc
  • Core：Single Core, Double Core,Multicore
  • Certification：RoHS, CE, ISO9001
  • Brand：OEM
  • Sheath Material：LSZH
  • Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
  • Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
  • Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Length：1m, 2m, or Customization
  • Label：Sticker, Paper
  • Transport Package：Zipper Bag, Carton Box
  • Specification：SGS; RoHs
  • Trademark：koc
  • Origin：Made in Shenzhen
  • HS Code：85447000
  • Production Capacity：500000 PCS,Month

Description

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°C


ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)  Sc/APC-Sc/APC Optical Fiber Jumpers CableSc/APC-Sc/APC Optical Fiber Jumpers CableSc/APC-Sc/APC Optical Fiber Jumpers CableSc/APC-Sc/APC Optical Fiber Jumpers CableSc/APC-Sc/APC Optical Fiber Jumpers CableSc/APC-Sc/APC Optical Fiber Jumpers Cable


   Note: The price range is for Patch Cord SC/APC -SC/APC Singlemode G652D Simplex 2mm  1meter.
