• Wire Core Material：Copper Ciad Steel
• Certification：CE, RoHS
• Model：Rg59 Cable
• Brand：OEM
• Inner Conductor：Copper Clad Steel
• Insuiation：Foamed PE
• Outer Condcutor：Aluminum Wires
• Jacket：PVC
• Power Cable：CCA
• Certificate：CE,RoHS
• Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
• Specification：RG59
• Trademark：OEM
• Origin：Hangzhou, China
• HS Code：8544200000
• Production Capacity：24000km,Year

Basic Info.

Wire Core Material Copper Ciad Steel Certification CE, RoHS Model Rg59 Cable Brand OEM Inner Conductor Copper Clad Steel Insuiation Foamed PE Outer Condcutor Aluminum Wires Jacket PVC Power Cable CCA Certificate CE/RoHS Transport Package Packed by Carton/Wooden Drum/Wooden Pallet Specification RG59 Trademark OEM Origin Hangzhou, China HS Code 8544200000 Production Capacity 24000km/Year

Product Description

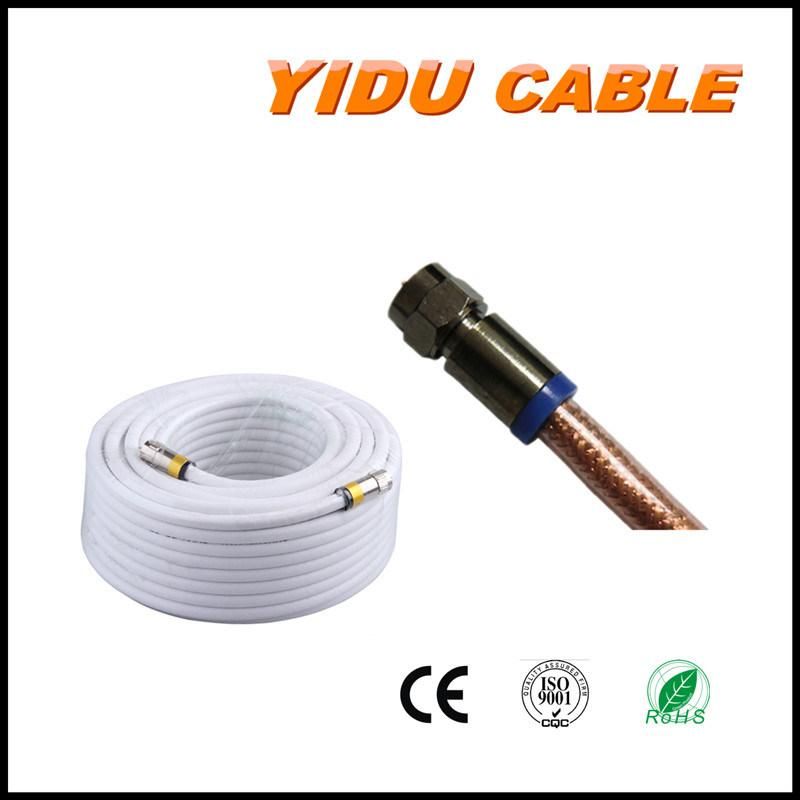

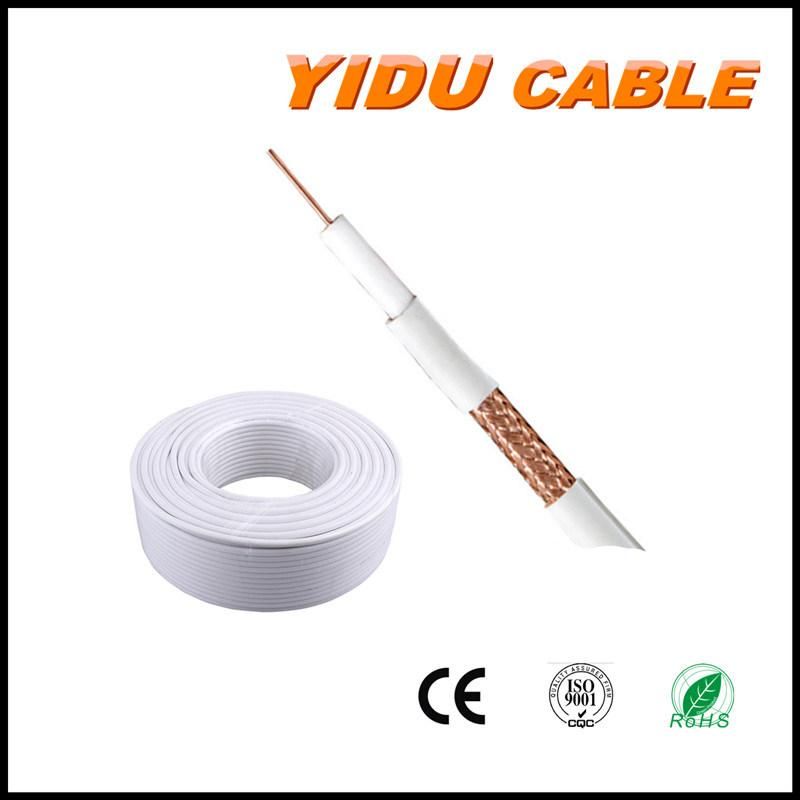

High Quality Ce Approved Rg6u RG6 Coaxial Cable

Coaxial Cable( RG6/RG6U) 17vatc / 19vatc:


Specifications:

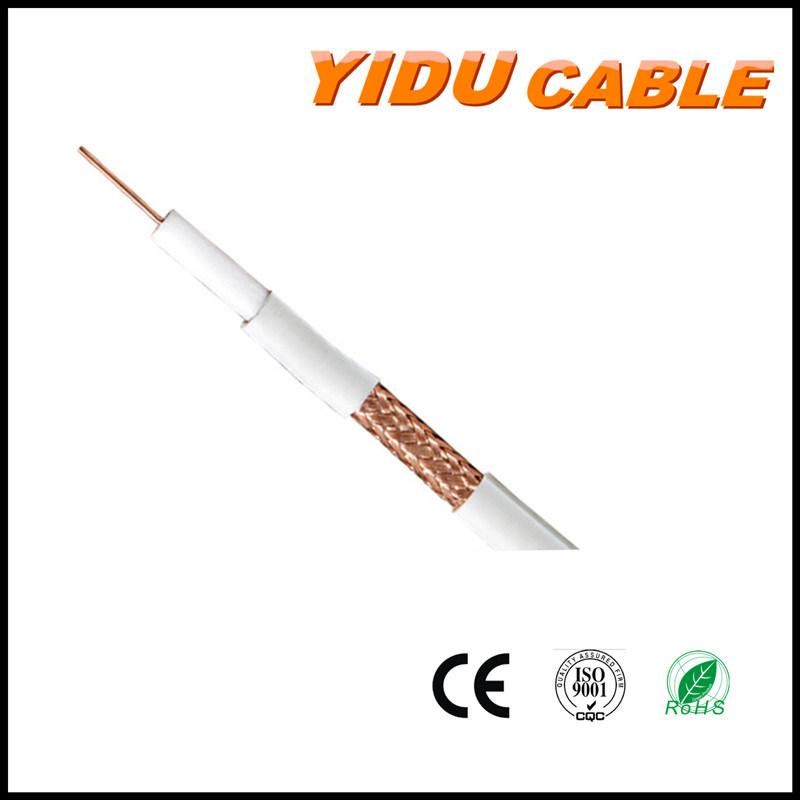

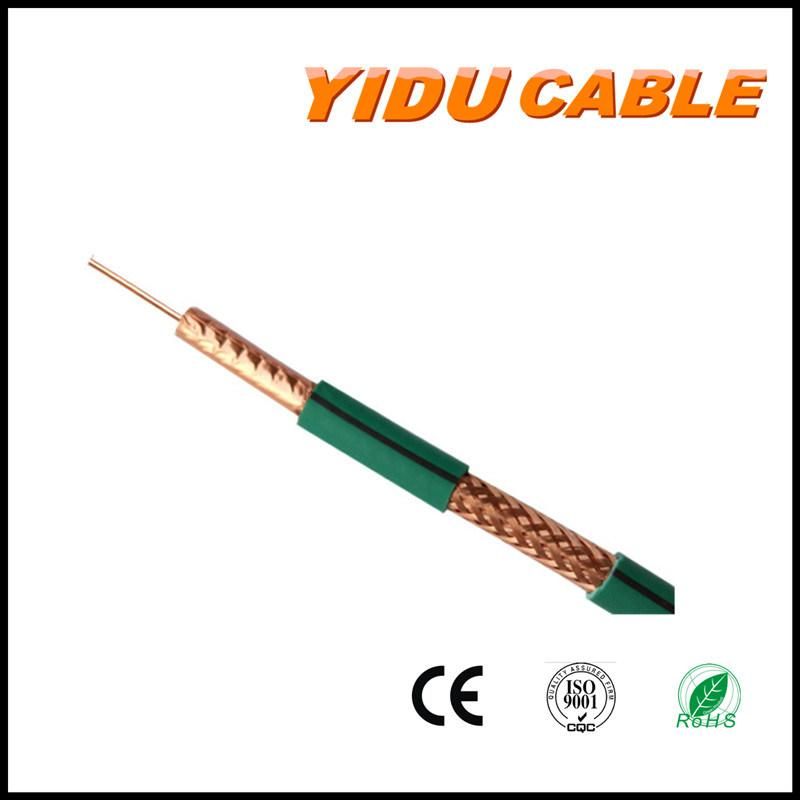

1) 1.02mmCCS +4.57mmFoamed PE +A/P(bonded)+60% AL Braiding + 6.91mmPVC
2) Customers' specifications are welcomed.



Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.



Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.90dB 500MHz: 15.09dB
55MHz: 5.25dB 600MHz: 16.73dB
83MHz: 6.40dB 750MHz: 18.54dB
187MHz: 9.35dB 1000MHz: 21.49dB
211MHz: 10.00dB 1450MHz: 26.16dB
250MHz: 10.82dB 1800MHz: 27.73dB
350MHz: 12.63dB 2100MHz: 31.15dB
400MHz: 13.61dB 2250MHz: 34.03dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

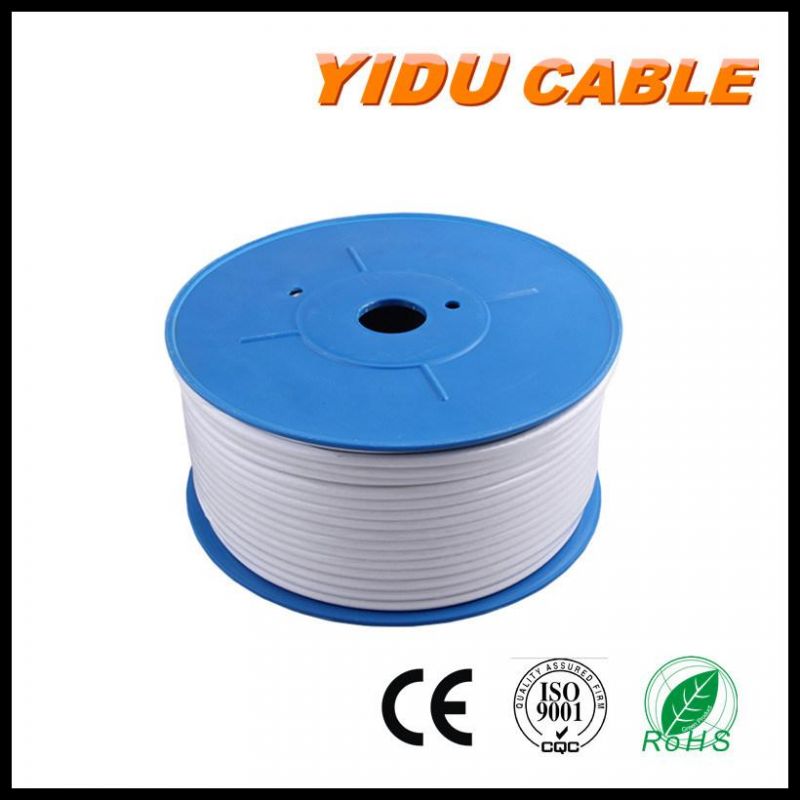

2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Usage: Securitity alarm
Certificate: UL, CE. RoHS


Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
