Jgg 10kv High Voltage Silicone Rubber Cable for Motor Connection
Wuxi Huacheng Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Overhead, Heating, Underground
- Conductor Material:Copper
- Sheath Material:Fiber Glass
- Insulation Material:Sr Rubber
Base Info
- Model NO.:JGG 10KV, UL3640, JGGP
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE
- Brand:Hoochan

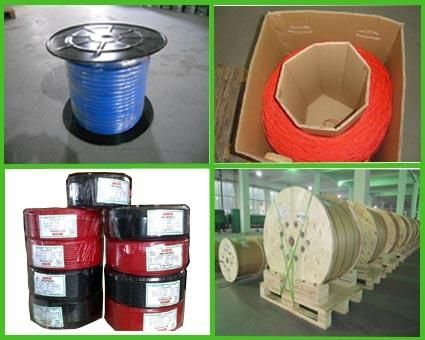

- Transport Package:100-300m Per Drum
- Specification:4-240mm2
- Trademark:Hoochan
- Origin:China
- HS Code:8544492100
- Production Capacity:1200km,Month
Description
sectionconductor insulation wire OD conductor resistance structure diameter nominal thick min. thick nominal allowance 20 C degree mm² No./mm mm mm mm mm mm Ω/KM 0.75 24/0.20 1.15 2.8 2.42 6.75 ±0.25 26.7 1.0 32/0.20 1.34 2.8 2.42 6.95 ±0.25 20 1.5 30/0.25 1.60 3.0 2.6 7.60 ±0.30 13.7 2.0 41/0.25 1.90 3.0 2.6 7.90 ±0.30 9.9 2.5 49/0.25 2.00 3.2 2.78 8.40 ±0.30 8.21 4 56/0.30 2.70 3.2 2.78 9.10 ±0.30 5.09 6 84/0.30 3.30 3.4 2.96 10.10 ±0.30 3.39 10 84/0.40 4.60 3.4 2.96 11.40 ±0.30 1.95 16 126/0.40 5.80 3.6 3.14 13.00 ±0.30 1.24 25 196/0.40 7.30 3.6 3.14 14.5 +0.40 0.795 -0.30 35 276/0.40 8.60 3.8 3.32 16.2 +0.40 0.565 -0.30 50 396/0.40 10.70 3.8 3.32 18.3 +0.50 0.393 -0.30 70 360/0.50 12.40 4.0 3.5 20.4 +0.50 0.277 -0.30 95 475/0.50 14.50 4.0 3.5 22.5 +0.50 0.21 -0.30 120 608/0.50 16.00 5.0 4.4 26.0 +0.60 0.164 -0.30 150 756/0.50 18.00 5.0 4.4 28.0 +0.60 0.132 -0.30 185 925/0.50 20.00 5.2 4.58 30.4 +0.60 0.108 -0.30 240 1221/0.50 23.00 5.5 4.85 34.0 +0.60 0.0817 -0.30
