XLPE Insulated Flexible Tinned Copper Solar Panels Single Core AC DC Photovoltaic Electric Wire Solar PV Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Power Station, Telecommunication, Solar Panel Cable
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：PE
- Sheath Material：PE
- Material Shape：Round Wire
Base Info
- Model NO.：Solar cable
- Wire Core Material：Tinned Wire
- Certification：ISO, CCC, CE, RoHS, UL
- Model：Solar Cable 35mm
- Brand：Superlink ,OEM
- Insulation：PE
- Jacket：PE
- Length：100m,200m,305m,500m
- Color：Black , Red
- Transport Package：100m,200m,305m,500m
- Specification：solar cable 35mm
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：8544492100
- Production Capacity：500km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

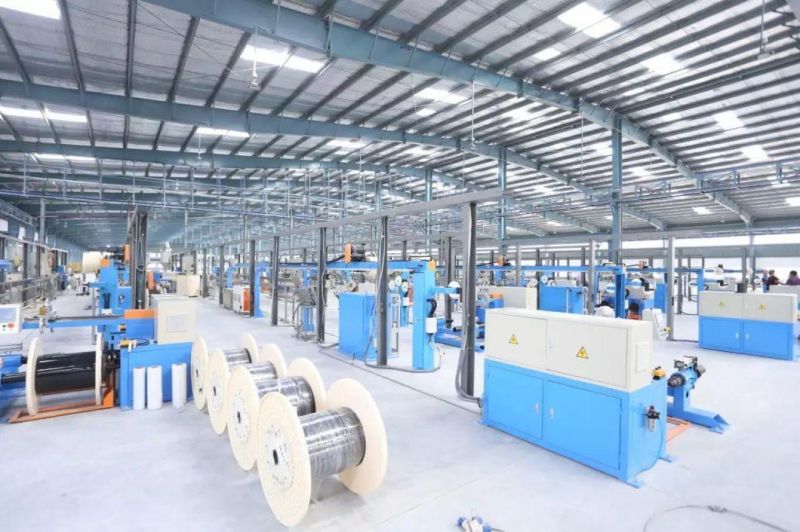

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping. Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
XLPE Insulated Flexible Tinned Copper Solar Panels Single Core AC DC Photovoltaic Electric Wire Solar PV Cable
| Cross Section (mm2) | Conductor Construction (n/mm) | Conductor Stranded OD. (mm) | Cable OD. (mm) | Conductor Max. Resistance AT 20 | Current Carrying Capacity AT 60 |
| 1.5 | 30/0.25 | 1.58 | 4.90 | 13.7 | 30 |
| 2.5 | 49/0.25 | 2.02 | 5.40 | 8.21 | 41 |
| 4.0 | 56/0.285 | 2.50 | 6.00 | 5.09 | 55 |
| 6.0 | 84/0.285 | 3.17 | 6.60 | 3.39 | 70 |
| 10 | 84/0.40 | 4.56 | 8.00 | 1.95 | 98 |
| 16 | 128/0.40 | 5.60 | 9.60 | 1.24 | 132 |
| 25 | 192/0.40 | 6.95 | 11.40 | 0.769 | 176 |
| 35 | 276/0.40 | 8.74 | 13.20 | 0.565 | 218 |
1. What's your company MOQ?- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.

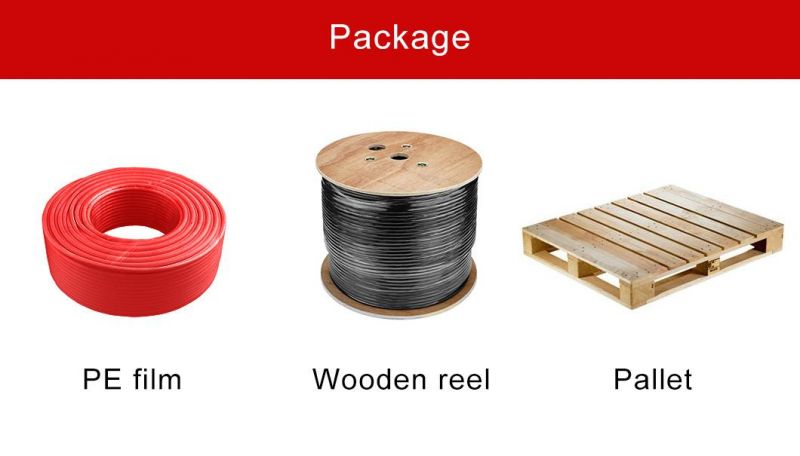

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
