Top Sale 305m Reel Cable Rg8 Rg11 Rg174 Rg213 Rg214 Rg223 Rg58 Rg59 RG6 Coaxial Cable
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Rg213
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：RG213
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Rg213
- Brand：Elesun
- Material of Inner Conductor：Bare Copper
- Structure of Inner Conductor：7,0.75mm
- Material of Insulation：Solid PE
- Diameter of Insulation：7.25mm
- Material of Braiding(Double Shielding)：Bare Copper
- Structure of Braiding(Double Shielding)：144*0.15mm
- Material of Jacket：PVC
- Diameter of Jacket：10.20mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：1500V
- Weight：156kg,Km
- Transport Package：100m,Roll,CTN
- Specification：34*33*19cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description
1.Detailed Description1. Inner Conductor: CU
2. Dielectric: Foam/Solid PE
3. Shield: Bonded, Non-bonded, Single, Double
4. Braid wire material: CU, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.15mm, 0.16mm
6. Braid net: 96, 128 and more
7. Braid coverage: 80%, 90% and more
8. Jacket: PE/PVC
9. Jacket degree: 70,75
10. Customized requirement welcomed.
Top Sale 305M Reel Cable RG8 RG11 RG174 RG213 RG214 RG223 RG58 RG59 RG6 Coaxial Cable

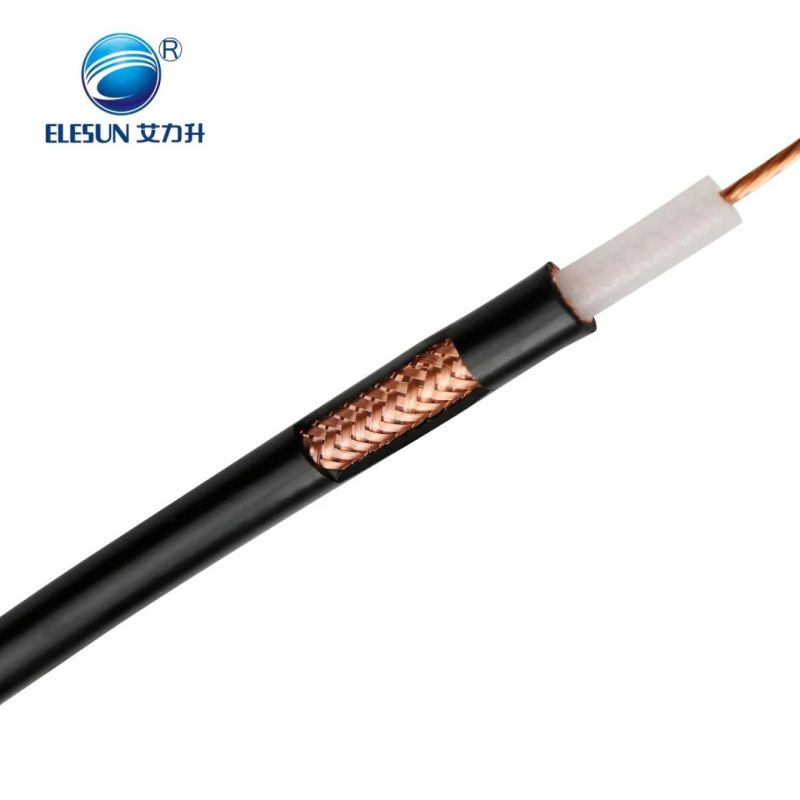

RG213/U coaxial cable specifications
2.Electrical Specifications
| Characteristic Impedance(Ohm) | 75 |
| Nominal Velocity of Propagation (%) | 85 |
| Nominal Capacitance(pF/m) | 50 |
| Sparker Test(VAC) | 4000 |
| SRL(dB, min) | 20 |
3.Application
The RG 213 coax cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG 213 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
4. Packing
1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
