Hot 0.5mm 0.75mm 1mm 1.5mm 2.5mm 4mm 6mm 10mm Single Solid or Stranded Core Copper PVC House Building Electric Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type:Insulated
- Conductor Type:Solid
- Application:Overhead, Underground
- Conductor Material:Copper
- Insulation Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:BV,BVV,BVR,BLV,BVR
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE, CSA
- Brand:Feiya
- Color:Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly:Yes
- Whether Quality Inspection:Provide Inspection Certificate
- Standard:Customized According to Specified National Standar
- OEM/ODM:Accepted
- Core:Single Core and Multicore
- Transport Package:Standard Export Packaging
- Specification:International General Specifications
- Trademark:Fengda
- Origin:Tianjin, China(Mainland)
- HS Code:8544492100
- Production Capacity:5000000km,Year
Description
Product Description:

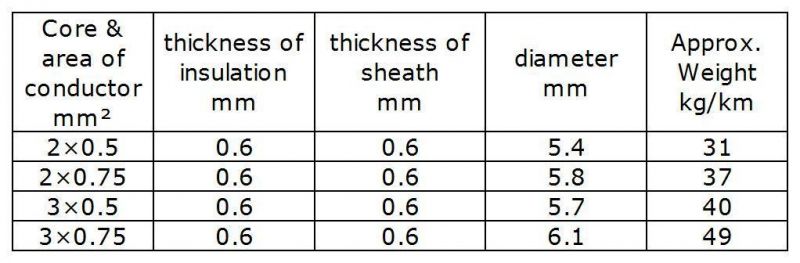

Type: H03VV-F /A03VV-F(60227 IEC 52)
Application: Suitable in dry locations for connections of portable electrical
appliances submitted to weak mechanical strength, such as radio sets and
lighting fittings, not for heating devices.
Conductor: finely stranded flexible bare cooper
Insulation: PVC
Sheath: PVC
Rate voltage: 300/300V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 6 times diameter

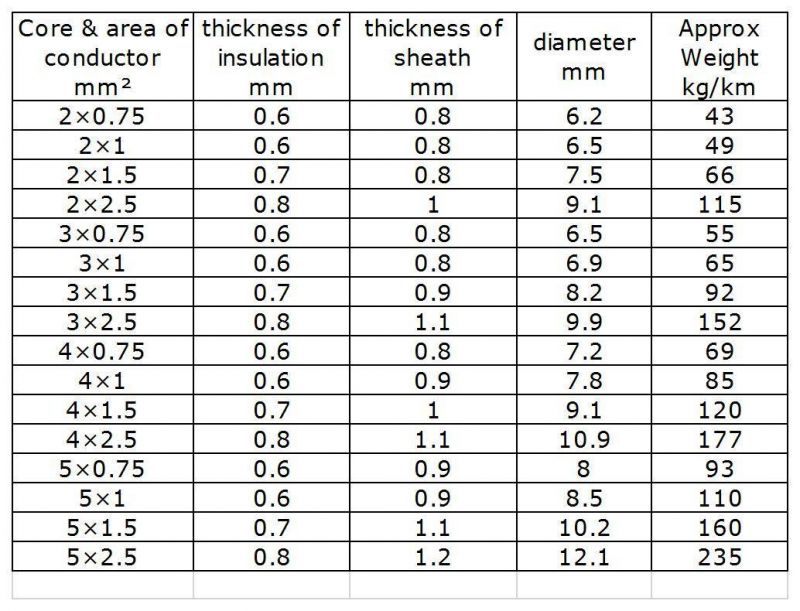

Type: H05VV-F /A05VV-F(60227 IEC 53)
Application: Suitable in dry and humid locations for connections of electrical
appliances submitted to medium level mechanical strength, such as washing
machines, refrigerators, etc. Suitable for heating appliances provided that there
is no risk of contact with hot parts.
Conductor: Flexible Conductor
Insulation: PVC
Sheath: PVC
Rate voltage: 300/500V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 5 times diameter
