• Model NO.：H07V-U , H07V-F, H05V-U
• Certification：ISO, CCC, CE, RoHS, VDE, CSA
• Model：Bvr
• Brand：Fengda
• OEM：Yes
• Packing：100m,Roll
• Color：Black, Red, Yellow, Blue or Customized
• Rated Voltage：300,500V 450,750V
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper
• Trademark：Feiya
• Origin：China
• HS Code：8544
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. H07V-U / H07V-F/ H05V-U Certification ISO, CCC, CE, RoHS, VDE, CSA Model Bvr Brand Fengda OEM Yes Packing 100m/Roll Color Black, Red, Yellow, Blue or Customized Rated Voltage 300/500V 450/750V Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper Trademark Feiya Origin China HS Code 8544 Production Capacity 80000 Meter/Meters Per Month

Product Description

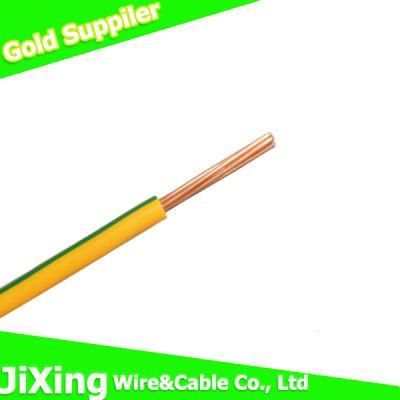

PVC Insulation Cable





 Executive standard

It is manufactured acconding to GB/T 5023-2008,JB/T 8734-2016 standards.(Equivalent national standard of IEC60227).

Application

 B serie are used for fixed laying in engine devices of AC rated voltage 450/750V of lower, R serie are used for household electrical appliances ,small electrical tools, instruments and engine lighting of AC rated voltage 450/750V or lower.
Type of the cables

Type	Designation	Core No.	Production Range mm2	Rated voltage V
60227IEC01(BV)	General purpose single core hard conductor cable without sheath	1	1.5-400	450/750
60227IEC02(RV)	General purpose single core soft conductor cable without sheath	1	1.5-240	450/750
60227IEC05(BV)	70ºC Inner wiring purpose single core solid conductor cable without sheath 70ºC for conductor temperature	1	0.5-1.0	300/500
60227IEC06(RV)	70ºC Inner wiring purpose single core soft conductor cable without sheath 70ºC for conductor temperature	1	0.5-1.0	300/500
60227IEC10(BVV)	Light type PVC sheath cable	2-5	1.5-35	300/500
60227IEC52(RVV)	Light type PVC sheath soft wire	2-3	0.5-0.75	300/300
60227IEC53(RVV)	General PVC sheath soft wire	2-5	0.75-2.5	300/500
BV	Cu conductor PVC insulation cable	1	0.75-1.0	300/500
BLV	Al conductor PVC insulation cable	1	2.5-400	450/750
BVR	Cu conductor PVC insulation soft cable	1	2.5-70	450/750
BVV	Cu conductor insulation and sheath circular cable	1	0.75-10	300/500

BLVV	Al conductor insulation and sheath circular cable	1	2.5-10	300/500
BVVB	Cu conductor insulation and sheath flat cable	2-3	0.75-10	300/500
BLVVB	Al conductor insulation and sheath flat cable	2-3	2.5-10	300/500
RVVP	Cu conductor PVC insulation sheath and shielded soft cable	1-24	0.5-6	300/300



FAQ

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5:How much the Courier freight will be for the samples?

A5:Courier freight depends on the quantity,weight and carton size and your area.
