Aluminum Conductor Steel Reinforced - ACSR Rabbit Conductor Price
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum and Steel Wire
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Power Transmission
- Certification：ISO9001, CE, CCC
- Brand：Rmjt
- Number of Wires：6,1, 26,7, 84,19
- Area：10-1500mm2
- Color：Silver
- Current：DC Cable
- Standard：ASTM BS DIN Jb IEC GB GOST
- Factory Area：300, 000mm2
- Transport Package：Wooden Drum or Steel Wooden Drum
- Specification：ASTM BS CSA DIN IEC
- Trademark：RMJT
- Origin：Henan, China
- HS Code：7614100000
- Production Capacity：10000km,Montb
Description
Code NameKCMIL or AWG Area Steel Ratio Stranding Core
Dia. Overall
Dia. Linear
Mass Rated
Tensile
Strength Max.
D.C.
Resistaneat
20°C Alum. Wire Steel Wire Alum. Total No. Dia. No. Dia. mm² mm² % mm mm mm mm kg/km kN ohm/km Wren 8 8.37 9.76 17 6 1.33 1 1.33 1.33 3.99 33.8 3029 3.43 Warbler 7 10.55 12.32 17 6 1.5 1 1.5 1.5 4.5 42.8 4.14 2.72 Turkey 6 13.3 15.51 17 6 1.68 1 1.68 0.68 5.04 53.8 5.19 2.158 Thrush 5 16.77 19.57 17 6 1.89 1 1.89 1.89 5.67 67.9 6.56 1.711 Swan 4 21.15 24.68 17 6 2.12 1 2.12 2.12 6.36 85.6 8.15 1.357 Swallow 3 26.66 31.11 17 6 2.38 1 2.38 2.38 7.14 107.9 10 1.076 Sparrow 2 33.963 39.22 17 6 2.67 1 2.67 2.67 8.01 136 12.4 0.8534 Robin 1 42.41 49.48 17 6 3 1 3 3 9 171.6 15.3 0.6766 Raven 1/0 53.51 62.43 17 6 3.37 1 3.37 3.37 10.11 216.5 18.9 0.5363 Quail 2/0 67.44 78.67 17 6 3.78 1 3.78 3.78 11.34 273 23.5 0.4255 Pigeon 3/0 85.03 99.21 17 6 4.25 1 4.25 4.25 12.75 344 29.6 0.3375 Penguin 4/0 107.2 125.1 17 6 4.77 1 4.77 4.77 14.31 434 37.3 0.2676 Partridge 266.8 135.2 157.2 16 26 2.57 7 2 6 16.28 546 50 0.2136 Owl 266.8 135.2 152.8 13 6 5.36 7 1.79 5.37 16.09 509 42.3 0.2123 Waxwing 266.8 135.2 142.7 6 18 3.09 1 3.09 3.09 15.45 431 31.2 0.213
BS215 part2Code nameArea Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal
DC
resistance
at
20°C Nominal Alum. Alum. Steel Total Alum. Steel Alum. Steel Total MOLE 10 10.62 1.77 12.39 6/1.50 1/1.50 4.50 29 14 43 4.14 2.076 SQUIRREL 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368 GOPHER 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093 WEASEL 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077 FOX 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.20 0.7822 FERRET 40 42.41 7.07 49.48 6/3.00 1/3.00 9.00 117 55 172 15.20 0.6766 RABBIT 50 52.88 8.82 61.70 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426 MINK 60 63.18 10.53 73.71 6/3.66 1/3.66 10.98 173 82 255 21.80 0.4545 SKUNK 60 63.27 36.93 100.30 12/2.59 7/2.59 12.95 175 290 465 53.00 0.4567 BEAVER 70 74.82 12.47 87.29 6/3.99 1/3.99 11.97 205 97 302 25.70 0.3825 HORSE 70 73.37 42.80 116.17 12/2.79 7/2.79 13.95 203 335 538 61.20 0.3936 RACOON 75 79.20 13.20 92.40 6/4.10 1/4.10 12.30 217 103 320 27.20 0.3622 OTTER 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.80 0.3419 CAT 90 95.40 15.90 111.30 6/4.50 1/4.50 13.50 262 124 386 32.70 0.3007 HARE 100 105.00 17.50 122.50 6/4.72 1/4.72 14.16 288 137 425 36.00 0.2733 DOG 100 105.00 13.50 118.50 6/4.72 7/1.57 14.15 288 106 394 32.70 0.2733 HYENA 100 105.80 20.44 126.20 7/4.39 7/1.93 14.57 290 160 450 40.90 0.2712 LEOPARD 125 131.30 16.80 148.10 6/5.28 7/1.75 15.81 360 132 492 40.70 0.2184 COYOTE 125 132.10 20.10 152.20 26/2.54 7/1.91 15.89 365 157 522 46.40 0.2187 COUGAR 125 130.30 7.25 137.50 18/3.05 1/3.05 15.25 362 57 419 29.80 0.2189 TIGER 125 131.10 30.60 161.70 30/2.36 7/2.36 16.52 362 240 602 58.00 0.2202 WOLF 150 158.00 36.90 194.90 30/2.59 7/2.59 18.13 437 289 726 69.20 0.1828 DINGO 150 158.70 8.80 167.50 18/3.35 1/3.35 16.75 437 69 506 35.70 0.1815 LYNX 175 183.40 42.80 226.20 30/2.79 7/2.79 19.53 507 335 842 79.80 0.1576 CARACAL 175 184.20 10.30 194.50 18/3.61 1/3.61 18.05 507 80 587 41.10 0.1563 PANTHER 200 212.00 49.50 261.50 30/3.00 7/3.00 21.00 586 388 974 92.25 0.1363 LION 225 238.50 55.60 294.20 30/3.18 7/3.18 22.26 659 436 1095 109.60 0.1212 BEAR 250 264.00 61.60 325.60 30/3.35 7/3.35 23.45 730 483 1213 111.10 0.1093 GOAT 300 324.30 75.70 400.00 30/3.71 7/3.71 25.97 896 593 1489 135.70 0.0891 SHEEP 350 374.10 87.30 461.40 30/3.99 7/3.99 27.93 1034 684 1718 155.90 0.07704 ANTELOPE 350 373.10 48.40 421.50 54/2.97 7/2.97 26.73 1032 379 1411 118.20 0.07727 BISON 350 381.80 49.50 431.30 54/3.00 7/3.00 27.00 1056 388 1444 120.90 0.07573 JAGUAR 200 210.60 11.70 222.30 18/3.86 1/3.86 19.30 580 91 671 46.55 0.1367 DEER 400 429.30 100.20 529.50 30/4.27 7/4.27 29.89 1186 785 1971 178.50 0.06726 ZEBRA 400 428.90 55.60 484.50 54/3.18 7/3.18 28.62 1186 435 1621 131.90 0.0674 ELK 450 477.00 111.30 588.30 30/4.50 7/4.50 31.50 1318 872 2190 198.20 0.06056 CAMEL 450 475.20 61.60 536.80 54/3.35 7/3.35 30.15 1314 483 1797 145.70 0.06073 MOOSE 500 528.70 68.50 597.20 54/3.53 7/3.53 31.77 1462 537 1999 161.10 0.0547 Calculated Area Stranding and wire diameter Overall Diameter Linear mass Nominal breaking load Maximum resistance at 20ºC Al/St Al St Total Al St Al St Total mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN ohm/km 16/2.5 15.3 2.5 17.8 6/1.80 1/1.80 5.4 42 20 62 595 1.8780 25/4.0 23.8 4 27.8 6/2.25 1/2.25 6.8 65 32 97 920 1.2002 36/6.0 34.3 5.7 40.0 6/2.70 1/2.70 8.1 94 46 140 1265 0.8352 44/32.0 44.0 31.7 75.7 14/2.00 7/2.40 11.2 122 250 372 4500 0.6573 50/8.0 48.3 8.0 56.3 6/3.20 1/3.20 9.6 132 64 196 1710 0.5946 50/30 51.2 29.8 81 12/2.33 7/2.33 11.7 141 237 378 4380 0.5643 70/12 69.9 11.4 81.3 26/1.85 7/1.44 11.7 193 91 284 2680 0.4130 95/15 94.4 15.3 109.7 26/2.15 7/1.67 13.6 260 123 383 3575 0.3058 95/55 96.5 56.3 152.8 12/3.20 7/3.20 16.0 266 446 712 7935 0.2992 105/75 105.7 75.5 181.5 14/3.10 9/2.25 17.5 292 599 891 10845 0.2735 120/20 121.1 19.8 141.4 26/2.44 7/1.90 15.5 336 158 494 4565 0.2374 120/70 122.0 71.3 193.3 12/3.6 7/3.60 18.0 337 564 901 10000 0.2364 125/30 127.9 29.8 157.7 30/2.33 7/2.33 16.3 353 238 591 5760 0.2259 150/25 148.9 24.2 173.1 26/2.70 7/2.10 17.1 411 194 605 5525 0.1939 170/40 171.8 40.1 211.9 30/2.70 7/2.70 18.9 475 319 794 7675 0.1682 185/30 183.8 29.8 213.6 26/3.00 7/2.33 19.0 507 239 746 6620 0.1571 210/35 209.1 34.1 243.2 26/3.20 7/2.49 20.3 577 273 850 7490 0.1380 210/50 212.1 49.5 261.6 30/3.00 7/3.00 21.0 587 394 981 9390 0.1362 230/30 230.9 29.8 260.7 24/3.50 7/2.33 21.0 638 239 877 7310 0.1249 240/40 243.0 39.5 282.5 26/3.45 7/2.68 21.9 671 316 987 8640 0.1188 265/35 263.7 34.1 297.8 24/3.74 7/2.49 22.4 728 274 1002 8305 0.1094 300/50 304.3 49.5 353.7 26/3.86 7/3.00 24.5 840 396 1236 10700 0.09487 305/40 304.6 39.5 344.1 54/2.68 7/2.68 24.1 843 317 1160 9940 0.0949 340/30 339.3 29.8 369.1 48/3.00 7/2.33 25.0 938 242 1180 9290 0.08509 380/50 382.0 49.5 431.5 54/3.00 7/3.00 27.0 1056 397 1453 12310 0.0851 385/35 386.0 34.1 420.1 48/3.20 7/2.49 26.7 1067 277 1344 10480 0.07573 435/55 434.0 59.3 490.6 54/3.20 7/3.20 28.8 1203 450 1653 13645 0.0748 450/40 448.7 39.5 488.2 48/3.45 7/2.68 28.7 1241 320 1561 12075 0.06656 490/65 490.3 63.6 553.9 54/3.40 7/3.40 30.6 1356 510 1866 15310 0.0643 495/35 494.1 34.1 528.2 45/3.74 7/2.49 29.9 1363 283 1646 12180 0.05846 510/45 510.2 45.3 555.5 48/3.68 7/2.87 30.7 1413 365 1778 13665 0.0566 550/70 550.0 71.3 621.3 54/3.60 7/3.60 32.4 1520 572 2092 17060 0.05259 560/50 561.7 49.5 611.2 48/3.86 7/3.00 32.2 1553 401 1954 14895 0.0514 570/40 565.5 39.5 610.3 45/4.00 7/2.68 32.2 1563 325 1888 13900 0.05108 650/45 698.8 45.3 653.5 45/4.30 7/2.87 34.4 1791 372 2163 15552 0.0442 680/85 678.8 86 764.8 54/4.00 18/2.40 36.0 1866 702 2570 21040 0.0426 1045/45 1045.6 45.3 1090.9 72/4.30 7/2.87 43.0 2879 370 3249 21787 0.0277
5.About Us

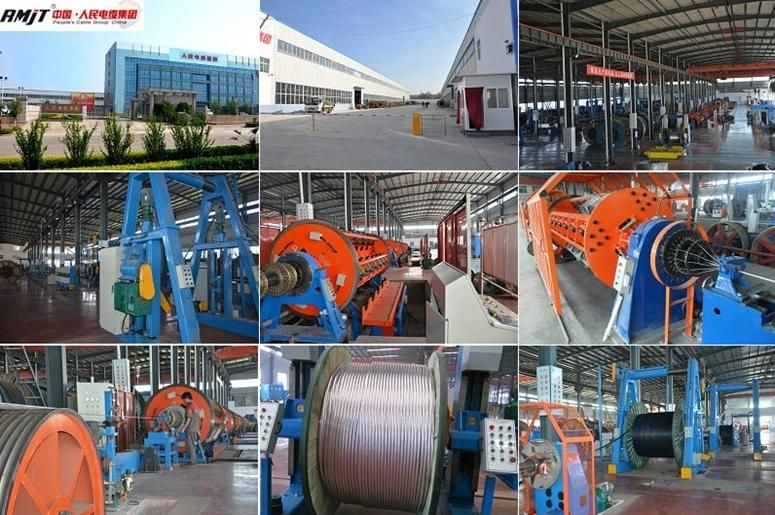

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
6.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
8. FAQ
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
9. Contact Us
People's Cable Group Co.,Ltd
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
