• Model NO.：K
• Material Shape：Flat Wire
• Range of Application：Mine
• Certification：ISO9001, UL, CCC, RoHS, VDE
• Brand：Ualloy
• Types：K
• Temperature Range：-270~1372
• Transport Package：Roll,Wooden Case
• Specification：0.05~2.5mm
• Trademark：Ualloy
• Origin：Zhejiang China
• HS Code：9025900090
• Production Capacity：10000m,Week

Basic Info.

Model NO. K Material Shape Flat Wire Range of Application Mine Certification ISO9001, UL, CCC, RoHS, VDE Brand Ualloy Types K Temperature Range -270~1372 Transport Package Roll/Wooden Case Specification 0.05~2.5mm Trademark Ualloy Origin Zhejiang China HS Code 9025900090 Production Capacity 10000m/Week

Product Description

      Special fiberglass braid impregnated with silicone rubber extension cable
      The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
       This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national
defense industry, etc.
       More details about the product:

Types	K
Conductor Material	+Chromel, -Alumel
Insulation Material	Fiberglass
Jacket	Fiberglass
Conductor diameter	0.05mm to 2.5mm
Temperature range	-200ºC-1200ºC
Standard	IEC584-2

       Other sizes are available upon your request.

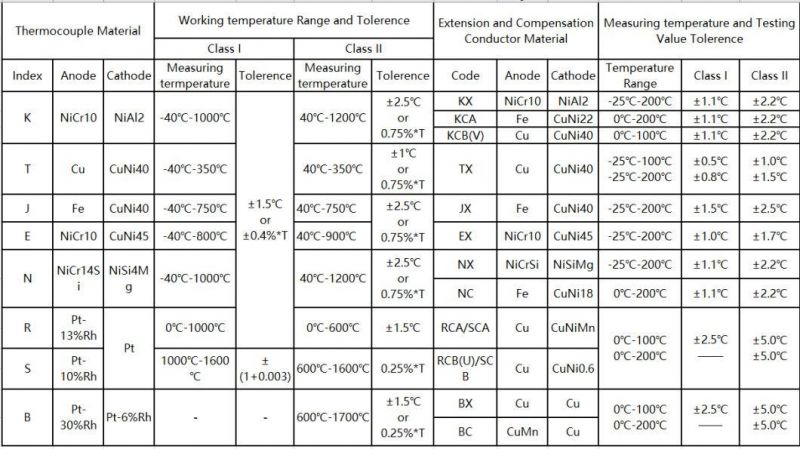

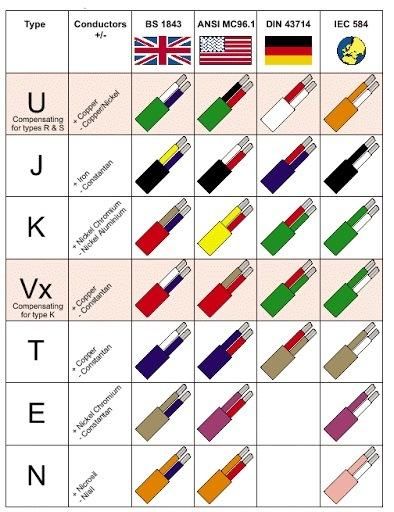

       Type ,designation and kind of thermocouples
