Kapton Insulated Type J Thermocouple Cable with Different Diameter
Hangzhou Ualloy Material Co., Ltd.- Type:Insulated
- Conductor Type:Solid
- Application:Overhead, Heating, Underground
- Conductor Material:Fe and CuNi45
- Sheath Material:Kapton
- Insulation Material:Kapton
Base Info
- Model NO.:J
- Material Shape:Round Wire
- Range of Application:Mine
- Certification:ISO9001, CE, CCC, RoHS
- Brand:Ualloy
- Types:J
- Temperature Range:-210~1200
- Transport Package:Roll,Wooden Case
- Specification:0.05~2.5mm
- Trademark:Ualloy
- Origin:Zhejiang China
- HS Code:9025900090
- Production Capacity:10000m,Week
Description
Basic Info.
Model NO. J Material Shape Round Wire Range of Application Mine Certification ISO9001, CE, CCC, RoHS Brand Ualloy Types J Temperature Range -210~1200 Transport Package Roll/Wooden Case Specification 0.05~2.5mm Trademark Ualloy Origin Zhejiang China HS Code 9025900090 Production Capacity 10000m/WeekProduct Description
Kapton Insulated Type J Thermocouple Cable with different diameterThe products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national
defense industry, etc.
More details about the product:
Types | J |
Conductor Material | +Fe, -CuNi45 |
Insulation Material | Kapton |
Jacket | Kapton |
Conductor diameter | 0.05mm to 2.5mm |
Temperature range | -200ºC-1200ºC |
Standard | IEC584-2 |

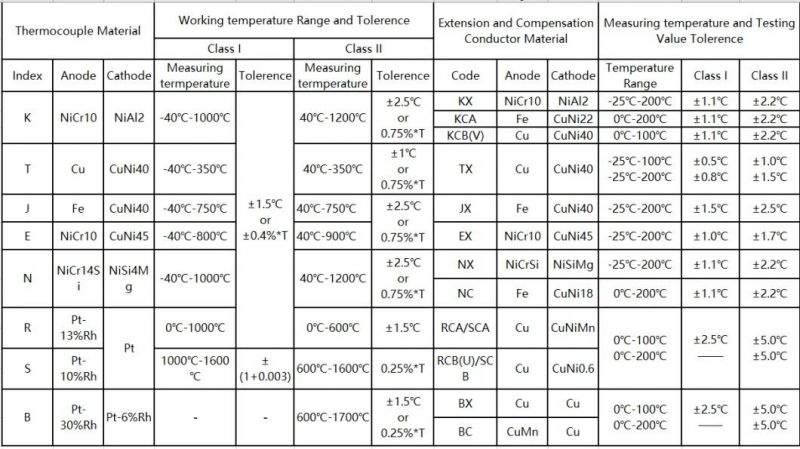

Type ,designation and kind of thermocouples
