UTP FTP SFTP CAT6 LAN Wire
Hangzhou Hongfeng Cable Co., Ltd.- Application:Local Communication Cable, Fiber Optic Cable, Long Distance Symmetric Cable, Submarine Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Cat 6
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:CAT6
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, UL
- Model:CAT6
- Brand:Hf,OEM
- Insulation:PE
- Jacket:PVC
- Color:Any Color

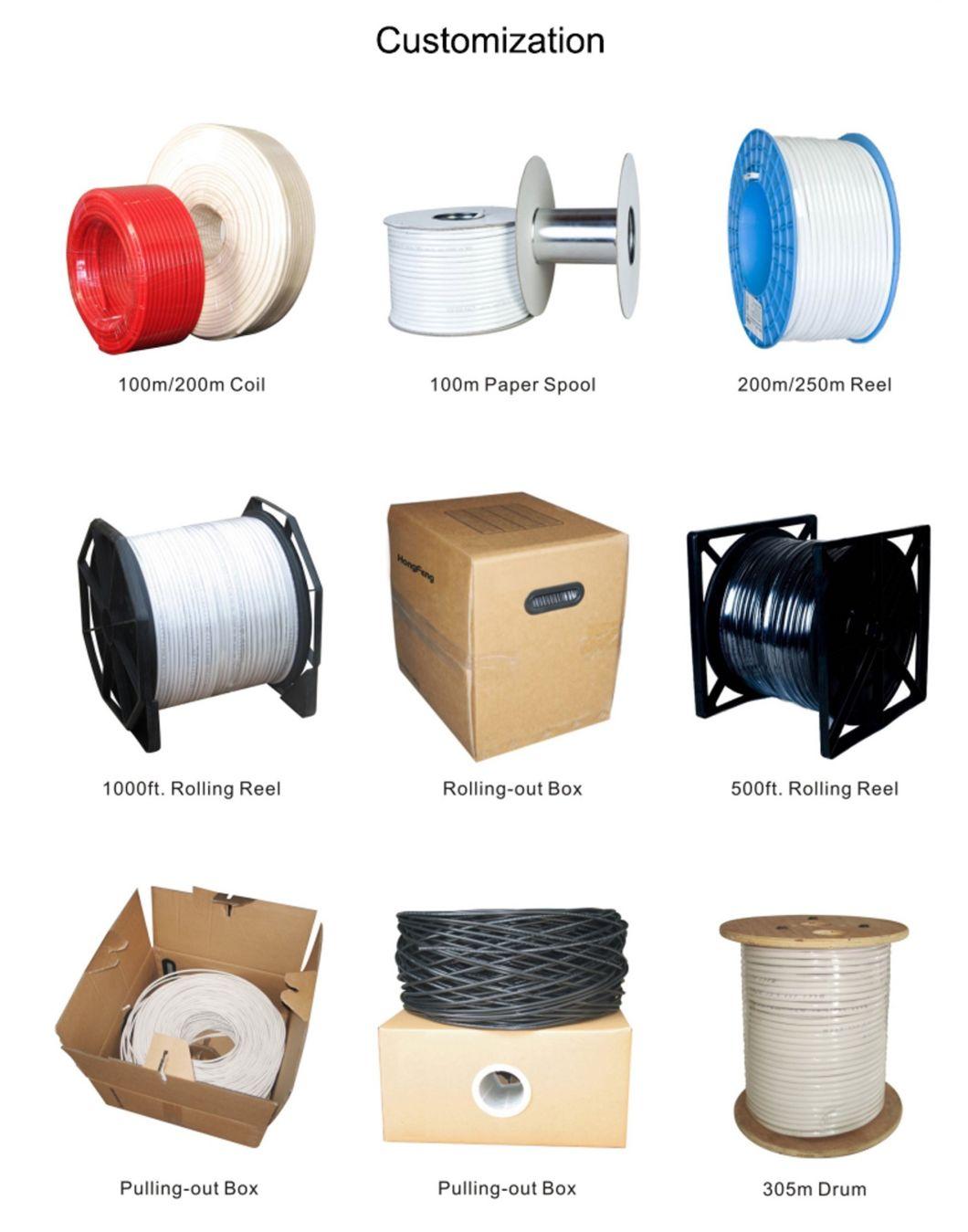

- Transport Package:1)100m,Coil, 6 Coils,CTN 2)305m,Wooden Drum
- Specification:Cat6
- Trademark:HF,OEM
- Origin:Hangzhou, Zhejiang China
- HS Code:8544491100
- Production Capacity:1000000kilometer
Description

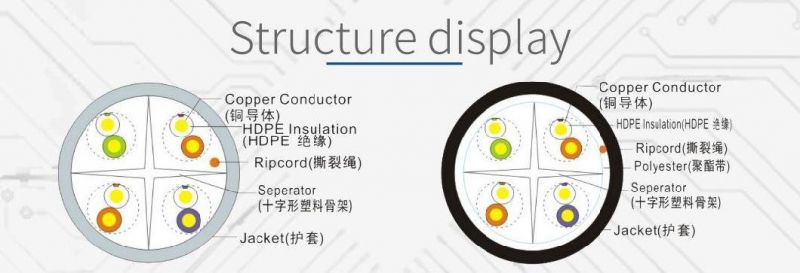

ConductorMaterial 99.99% OFC/ Bare Copper Diameter 23AWG 0.56mm ± (0.01mm) Insulation Material HDPE Diameter 1.03mm (± 0.01mm) Color Orange - White/ Orange Blue - White/ Blue Green - White/ Green Brown - White/ Brown Cross/ Separator Material HDP Color Transparent Rip Cord Material Nylon Jacket Material High-class PVC Thickness ≥ 0.65mm Diameter 6.3mm (±0.2mm) Color Any Color is Available
custom speaker wire cable for sale
1. Various kinds of wire harness, speaker cable hifi, speaker wire cable , speaker cable for sale, m12 8pin cable, cable harness assembly and accept OEM/ODM design.
2. Both local and original components available, according to customers' requirement
3. UL,CE,VDE certificated,all materials comply with RoHS and REACH,and ISO9001 certificates
4. Sample lead time 10-15 days
5. 100% electrical tests before delivery
6. Production lead time normally 2-3 weeks
Structure | Material | Specification |
Core No. | - | 4 |
Conductor | BC | 23AWG |
Insulation | PE | 1.04mm |
1st Shield | Selectable | - |
2nd Shield | Selectable | - |
Drain Wire | - | - |
Jacket | PVC | 5.7mm |
Cable Type | Structure(mm) | Insulation thickness(mm) | Approx overall dia.(mm) |
FTP CAT5E | 4x0.48 | 0.92 | 6.4 |
FTP CAT5E | 4x0.50 | 0.94 | 6.5 |
FTP CAT5E | 4x0.52 | 0.96 | 6.5 |
UTP CAT5E | 4x0.48 | 0.9 | 5.2 |
UTP CAT5E | 4x0.50 | 0.91 | 5.3 |
UTP CAT5E | 4x0.52 | 0.93 | 5.3 |
FTP CAT6 | 4x0.50 | 0.98 | 7.3 |
FTP CAT6 | 4x0.55 | 1.03 | 7.4 |
FTP CAT6 | 4x0.57 | 1.05 | 7.4 |
UTP CAT6 | 4x0.50 | 0.96 | 6.3 |
UTP CAT6 | 4x0.55 | 1.01 | 6.4 |
UTP CAT6 | 4x0.57 | 1.03 | 6.4 |
custom speaker wire cable for sale
1. Various kinds of wire harness, speaker cable hifi, speaker wire cable , speaker cable for sale, m12 8pin cable, cable harness assembly and accept OEM/ODM design.
2. Both local and original components available, according to customers' requirement
3. UL,CE,VDE certificated,all materials comply with RoHS and REACH,and ISO9001 certificates
4. Sample lead time 10-15 days
5. 100% electrical tests before delivery
6. Production lead time normally 2-3 weeks
