1 Core Single Mode FTTH Drop Cable
DONGGUAN TW-SCIE CO., LTD.- Application:Communication, Art, Sensor, Medicine
- Material Shape:Flat Wire
- Allowed Lateral Pressure:>1000(N,100mm)
- Allowed Tensile Strength:>10000N
- Core:Multicore
- Certification:RoHS, UL, CE, ISO9001, VDE, CCC
Base Info
- Model NO.:GJYXCH Drop Cable
- Brand:OEM
- Sheath Material:PE
- Place of Orign:Guangdong China

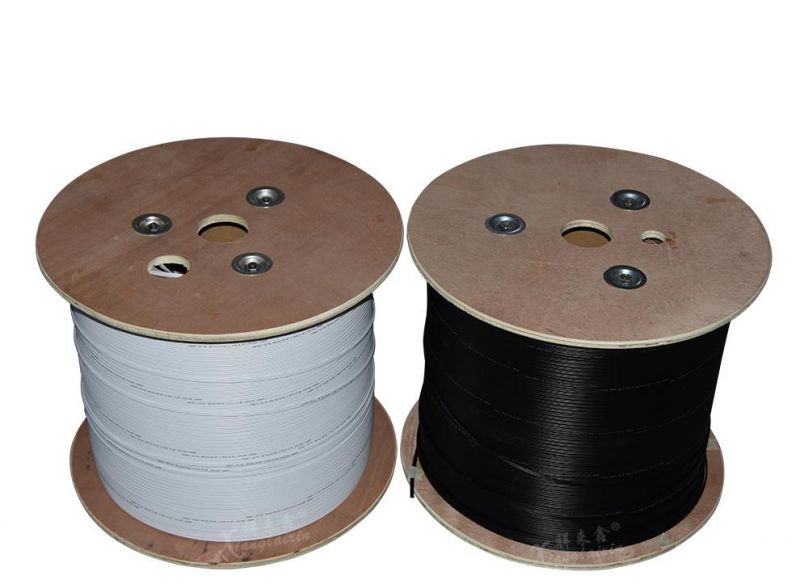

- Package:2km,Wooden Drum
- Steel:1.2mm
- Fiber:G652D,G657A1
- Fiber Account:1
- Shape or Structure:Can Be Produced as Per Buyer′s Request
- Model Number:FTTH
- Jacket:PVC or LSZH
- Transport Package:Wooden Drum
- Trademark:TW-SCIE or OEM
- Origin:Dongguan
- HS Code:854470000
- Production Capacity:200km,Day
Description
Basic Info.
Model NO. GJYXCH Drop Cable Brand OEM Sheath Material PE Place of Orign Guangdong China Package 2km/Wooden Drum Steel 1.2mm Fiber G652D,G657A1 Fiber Account 1 Shape or Structure Can Be Produced as Per Buyer′s Request Model Number FTTH Jacket PVC or LSZH Transport Package Wooden Drum Trademark TW-SCIE or OEM Origin Dongguan HS Code 854470000 Production Capacity 200km/DayProduct Description
1 Core Single Mode FTTH Drop CableProduct Description
Should be used Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring
Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands
Customization
--Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
--Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
--Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
--Cable Size: Nominal fiber size, but also other agreed size
--Delivery length: 1km or 2km, but also other agreed length
--Other requirements: Other special requirements agreed
*The cable model specifications, size and strength can made the suitalbe adjust according to the customer's requirements.
Instructions:
1. "Xn" means the table that fiber models. Can use G. 652, G. 657, G. 655 single-mode optical fiber or A1a, A1b multimode fiber;
Delivery length: 1 km, 2km or other user-specified length;
3. According to the YD/T1258.5-2005 jacket color, or it can also be a user of other colors as customers requriements;
4. Jacket materials can also be use other materials as requriements;
Type | Cores | Cable diameter(mm) | Short stretch(N) | Long-term tensile(N) | Short squash(N/100cm) | Long-term squash(N/100cm) | Static | Dynamic | Weight (Kg/Km) |
FTTH--1Xn | 1 | 2.0*3.0 | 30 | 60 | 300 | 1000 | 15D | 30D | 8 |
FTTH--2Xn | 2 | 2.0*3.4 | 30 | 60 | 300 | 1000 | 15D | 30D | 8.5 |
FTTH--4Xn | 4 | 2.0*3.8 | 30 | 60 | 300 | 1000 | 15D | 30D | 10 |
TAG:
Drop Fiber Cable, 1 Core Cable, High Quality Drop Cable FTTH
