DIN 48206 Aluminium Alloy Conductor Steel Reinforced Aacsr
People's Cable Group Co., Ltd.- Application：Overhead, Underground, Power Station
- Voltage：Low, Medium, High Voltage
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：AACSR Conductor
- Wire Core Material：Aluminum
- Certification：ISO9001, CCC, BV, SGS
- Model：Stranded
- Brand：Rmjt
- Product Name：DIN 48206 Aluminium Alloy Conductor Steel Reinforc
- Standard：ASTM, CSA, BS, DIN, IEC, NFC
- Advantages：High Quality, Competitive Price, Fast Delivery
- Code Name：Oak, Elm. Holly, Deodar,Sorbus
- OEM：Yes
- Related Voltage：0.6,1kv; 8.7,15kv; 12,20kv; 21,35kv; 26,35kv
- Type of Company：Professional Manufacturer
- Sample：Free
- Exoprt Experience：South America, Africa, Middle East Ect
- Delivery Time：15-25days
- Transport Package：Wooden Drum or Steel Wooden Drum
- Specification：10mm2-1500mm2
- Trademark：RMjT
- Origin：Henan, China
- HS Code：7614900000
- Production Capacity：1000 Tons Each Month
Description
Steel Cross SectionNumber Diameter Number Diameter Overall Linear Rated Max.D.C. Resistance Cross Section of Alloy of Alloy of Steel of Steel Diameter Mass Tensile at 20ºC Wires Wires Wires Wires Strength mm² mm² mm² - mm - mm mm kg/km daN Ω/km 163 140 23 26 2.62 7 2.04 16.6 560 7500 0.24 173 140 33 30 2.44 7 2.44 17.1 650 8740 0.24 186 160 26 26 2.8 7 2.18 17.7 645 8560 0.21 198 160 38 30 2.61 7 2.61 18.3 740 10600 0.21 209 180 29 26 2.97 7 2.31 18.8 725 9510 0.187 222 180 42 30 2.76 7 2.76 19.3 825 11200 0.187 232 200 32 26 3.13 7 2.43 19.8 800 10600 0.168 247 200 47 30 2.91 7 2.91 20.4 920 12400 0.168 260 224 36 26 3.31 7 2.57 21 900 11800 0.15 276 224 52 30 3.08 7 3.08 21.6 1025 13900 0.15 291 250 41 26 3.5 7 2.72 22.2 1010 12900 0.135 308 250 58 30 3.26 7 3.26 22.8 1145 15600 0.135 326 280 46 26 3.7 7 2.88 23.4 1140 14400 0.12 345 280 65 30 3.45 7 3.45 24.2 1280 17100 0.12 367 315 52 26 3.93 7 3.06 24.9 1276 16300 0.107 387 315 72 30 3.66 19 2.2 25.6 1433 19000 0.107 413 355 58 26 4.17 7 3.24 26.4 1433 18300 0.095 436 355 81 30 3.88 19 2.33 27.2 1614 21100 0.095 465 400 65 26 4.43 7 3.45 28.1 1612 20700 0.0842 491 400 91 30 4.12 19 2.47 28.8 1816 23700 0.0842 509 450 59 54 3.26 19 1.98 29.5 1703 21500 0.0748 563 500 63 54 3.43 19 2.06 30.9 1873 22900 0.0673 631 560 71 54 3.63 19 2.18 32.7 2101 25700 0.0601 710 630 80 54 3.85 19 2.31 34.6 2365 28600 0.0534 800 710 90 54 4.09 19 2.45 36.8 2665 32200 0.0474 901 800 101 54 4.34 19 2.6 39 3000 36300 0.042 973 900 73 84 3.69 19 2.21 40.6 3062 35500 0.0374 1081 1000 81 84 3.89 19 2.33 42.8 3395 39100 0.0337 1211 1120 91 84 4.12 19 2.47 45.3 3803 43900 0.03 1352 1250 102 84 4.35 19 2.61 47.8 4250 49000 0.027
About UsPeople's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

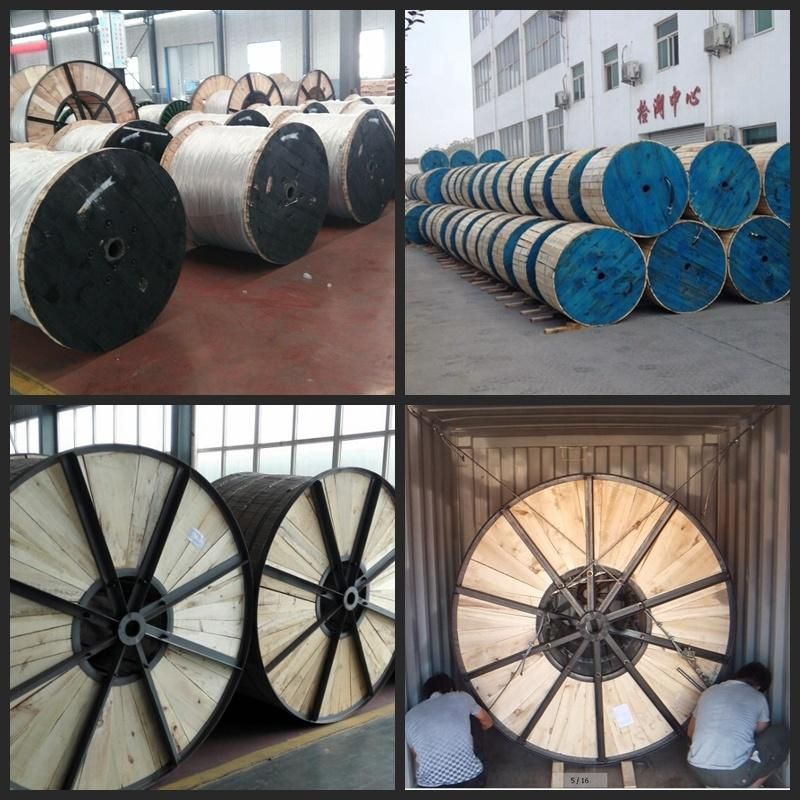

Packing & Delivery
Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Customers Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Our Service:
1.26 years production experience and 13 years export experience .
2.Products certification :ISO,SGS,UL,CE,BV,TUV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
