• Model NO.：RRU patch cord
• Core：Multicore
• Certification：RoHS, UL, ISO9001
• Brand：OEM
• Sheath Material：LSZH
• Jacket Materials：LSZH,Ofnr,PVC,PE
• Outer Diameter of Fiber Cable：4.8mm-7.0mm
• Ferrule Materials：Ceramic
• Cable Assemblies：Pigtail,Simplex,Duplex,Fan-out Patch Cord
• Transport Package：Carton Box
• Specification：2 cores
• Trademark：Fiberlink
• Origin：China
• HS Code：8544700000
• Production Capacity：1000000 Per Month

ItemDataInsertion Loss≤0.3dBMechanical life500cyclesWorking temperature-40°C~+70°CStorage temperature-40°C~+70°COperating temperature-10°C~+50°CProtection LevelIP67Tensile DataTensile between junction and fiber cable≥180NOut shell inflaming retardingUL94 V-0Out shell UvioresistantUL 746CAuthenticationMeet with RoHS

Fiber CountCable Dimension
mmCable Weight
kg/kmTensile
NCrush
N/100mmMin. Bend Radius
mmTemperatureLong TermShort TermLong TermShort TermDynamicStatic27.042.32004001100220020D10D-30-+70Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;

Fiber Count                                                 2 FibersFiber TypeSM G657A, or MM 50/125 or MM 62.5/125BufferDiameter900um±10umMaterialLSZHSimplex cableDiameter2.0mm±0.1mmMaterialLSZHColorSM: Blue and Yellow
MM: Orange and GreyFillerDiameter2.0mm±0.1mmMaterialLSZHColorBlackStrength MemberKevlarJacketDiameter7.0±0.1mmMaterialLSZHColorBlack

2. Connector Specification
2.1 Single mode

ITEMPARAMETERConnector typeLC/UPC, SC/UPC, FC/UPC, ST/UPCLC/APC, SC/APC, FC/APC, ST/APCInsertion Loss<=0.2db<=0.3dbReturn Loss>=50db>=60dbFiber modeSingle-modeOperating wavelength1310, 1550nmTest wavelength1310, 1550nmRepeatability<=0.1Interchangeability<=0.2dBDurability<=0.2dBFiber Length1m, 2m….. other length optionalLength and tolerance10cmOperating Temperature-40C ~ +85CStorage Temperature-40C ~ +85C

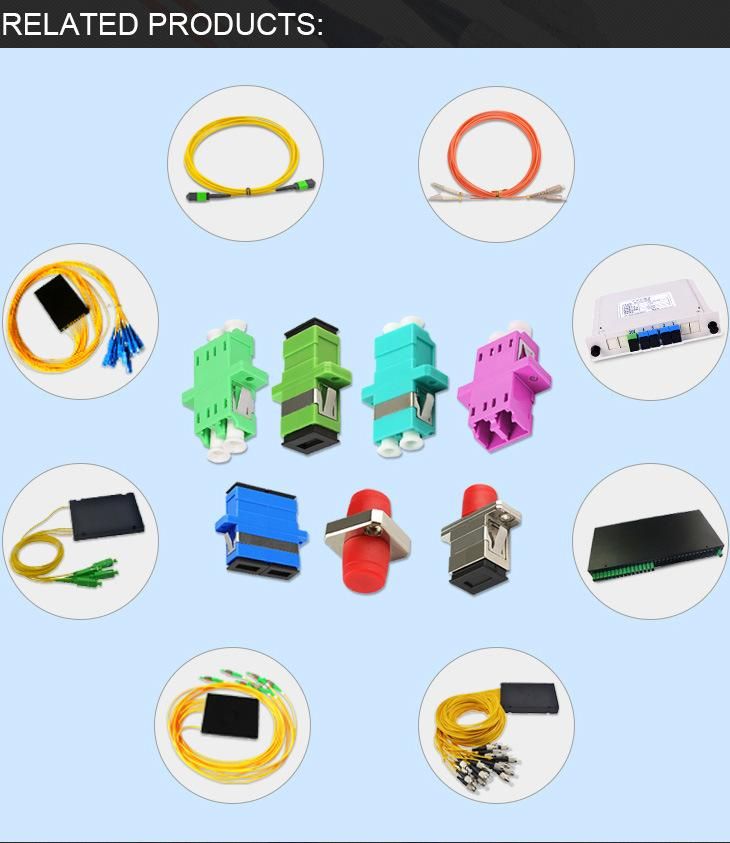

2.2 Multi modeITEMPARAMETERConnector typeLC/UPC, SC/UPC, FC/UPC, ST/UPC OptionalFiber modeMulti-modeOperating wavelength850, 1300nmTest wavelength850, 1300nmInsertion Loss<=0.2dbReturn Loss>=35dbRepeatability<=0.1Interchangeability<=0.2dBDurability<=0.2dBFiber Length1m, 2m….. other length optional.Length and tolerance10cmOperating Temperature-40C ~ +85C Related products

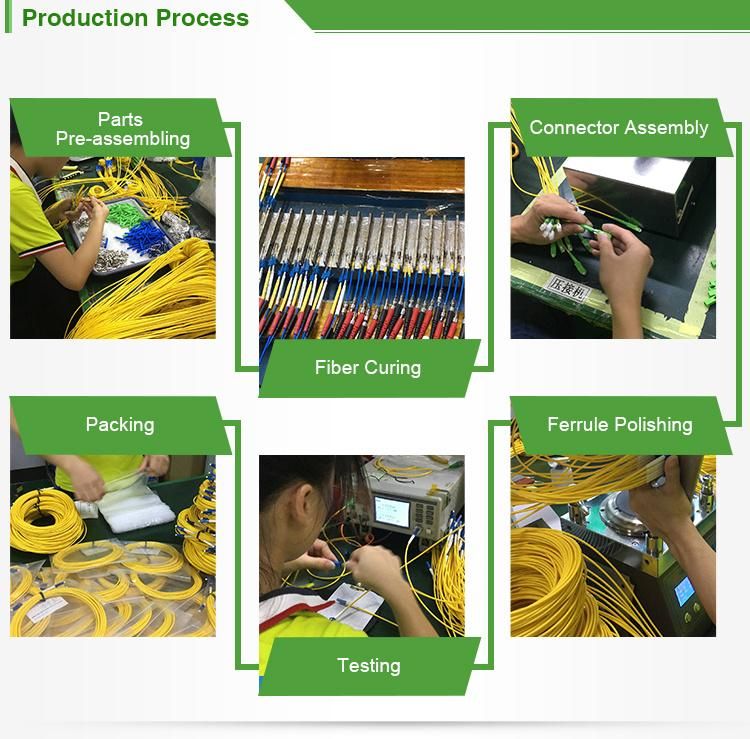

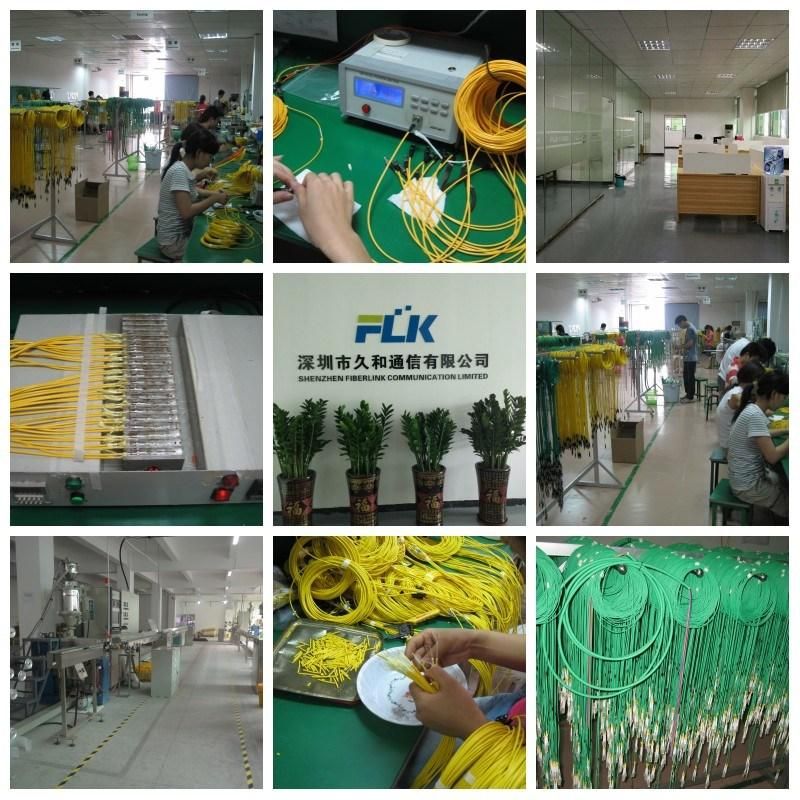

Our fiber patch cord production line:


Certifications




Shipping:



Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
