50/125, 62.5/125 4/8/12/24 Core Multimode Fiber Optic Cable GYTS
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Multi-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：Short Term 1000n; Long Term 300n
- Allowed Tensile Strength：Short Term 1500n; Long Term 600n
Base Info
- Model NO.：GYTS Fiber Optic Cable
- Core：Multi Core
- Certification：RoHS, ISO9001, Reach, Tlc etc.
- Brand：Tw-Scie or OEM
- Sheath Material：MDPE , HDPE , LSZH PE
- Model No：GYTS Fiber Optic Cable
- Fiber Count：4 Core
- Brand Name of Fiber：Corning, Yofc, as Your Requiremen
- Loose Tube Material：PBT
- Loose Tube Filling Material：Jerry
- Color of Loose Tube：Orange, Green, Brown etc
- Central Strength Member：Steel Wire or FRP
- Single Armour Material：Corrugated Steel Tape
- Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
- Installation Style：Duct, Aerial
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, Guangdong, China (Mainland)
- HS Code：854470000
- Production Capacity：200km,Day
Description
Overview
Detailed Photos
Product Description
Features & Application:
Excellent optical, mechanical & environmental performance;
High strength-to-weight ratio;
High tensile strength;
High crush strength;
Corrosion resistance;
Very light weight;
Very flexible bending radius;
Long haul / backbone application;
Optical Fiber Technical data:
Fiber Num.Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-30 9.8 95 10 times O. D. 20 times O. D. 1500 600 1000 300 32-36 10.3 115 38-60 10.7 115 62-72 11.3 140 74-96 12.9 175 98-120 14.4 210 122-144 15.8 245 146-216 16.3 260 218-240 19.5 345 242-288 21.7 415

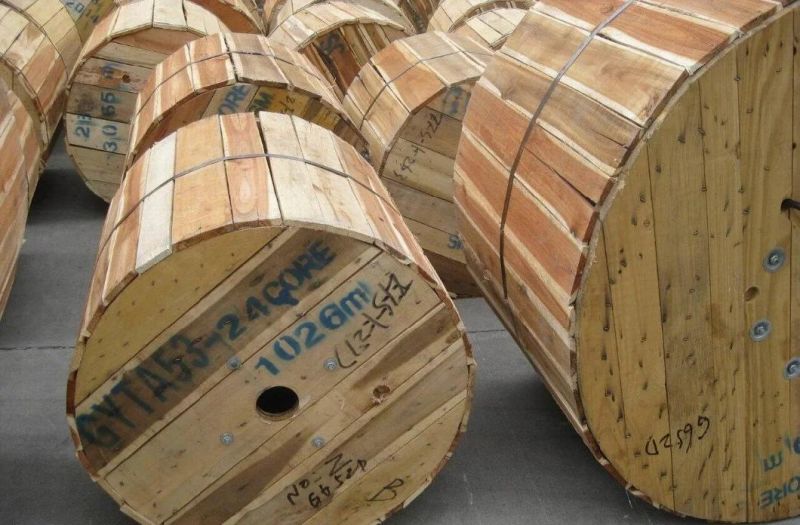

GYTS 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers.
If any questions, please feel free to contact us. We would reply you within 24 hours. Looking forward to doing business with you.
GYTS 50/125,62.5/125 4 Core Multimode Fiber Optic Cable Details:
Product Description
This GYTS Optical Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTS type Fiber Optical Cables are designed for easy and economical installation.
Features & Application:
Excellent optical, mechanical & environmental performance;
High strength-to-weight ratio;
High tensile strength;
High crush strength;
Corrosion resistance;
Very light weight;
Very flexible bending radius;
Long haul / backbone application;
Optical Fiber Technical data:
Fiber Num.
GYTS 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers.
If any questions, please feel free to contact us. We would reply you within 24 hours. Looking forward to doing business with you.
