RF Cable, Coaxial Cable for Connecting The Communication Antennas (TOP-SMA-C07)

TOP Electronic Industry Co., Ltd.
  • Application：Local Communication Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：Cat 5
  • Certification：RoHS
  • Connector：SMA

Base Info

  • Model NO.：TOP-SMA-C07
  • Cable：1.13 1.37
  • Transport Package：100PCS,Bag
  • Specification：CE, ROHS
  • Trademark：TOP
  • Origin：Shen Zhen
  • HS Code：8517707090
  • Production Capacity：100000PCS,Month

Description

Basic Info.

Model NO. TOP-SMA-C07 Cable 1.13 1.37 Transport Package 100PCS/Bag Specification CE, ROHS Trademark TOP Origin Shen Zhen HS Code 8517707090 Production Capacity 100000PCS/Month

Product Description

Connector: SMA(F)-IPEX/UFL/GSC

Cable: 1.13 /1.37

Length: 10cm/15CM/20CM or others


Connnector
SMA(F)- IPEX/UFL/GSC


Cable
1.13/ 1.37


Length
10CM/15CM/20CM


RF Cable /RF coaxial cable/ pigtail cable

RF pigtail cable is used for all RF/wireless equipments.
RF pigtail cable
GSM System
GPS Navigation system
Wireless communication system
Car radio
LAN System

COMPATIBLE CONNECTORS:
SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
BNC,FAKRA,GT5,U.FL, GSC,IPEX etc

COMPATIBLE CABLES:
IMPEDANCE 50Ω/75Ω/93Ω
RG405/U, RG402/U, RG316/U, RG223/U
RG188/U, RG179/U, RG174/U, RG142/U
RG141/U, RG59/U, RG58/U, RG8/U, RG6/U
1.13CABLE.

 Specification                             Value
Frequency RangeDC to 6GHz (VSWR 1.3 max)
Impedance50 ohms
Temperature-40° to +85° C
Rated VoltageAC 60V
Contact Resistance20m ohm max - signal and ground
Withstand Voltage AC 200V
Insulation Resistance500M ohm minimum/DC 100V
VSWR< 1.2:1 @ 2400MHz
IL < 1.0dB @ 2400MHz

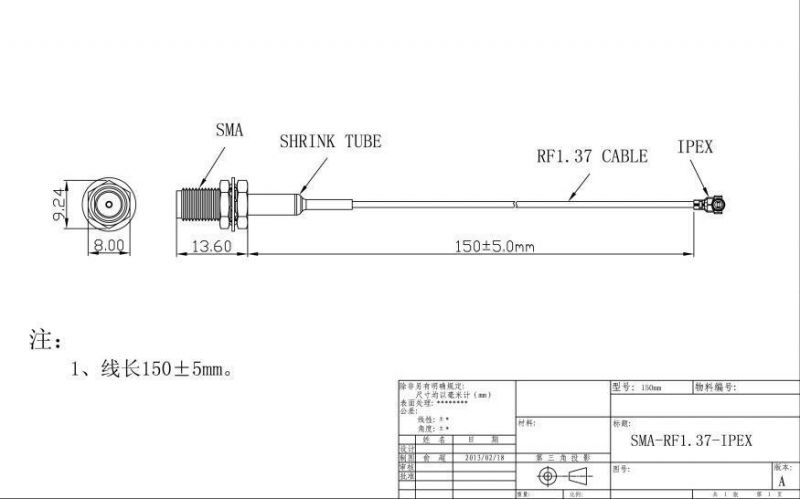

Drawing:


RF Cable, Coaxial Cable for Connecting The Communication Antennas (TOP-SMA-C07)

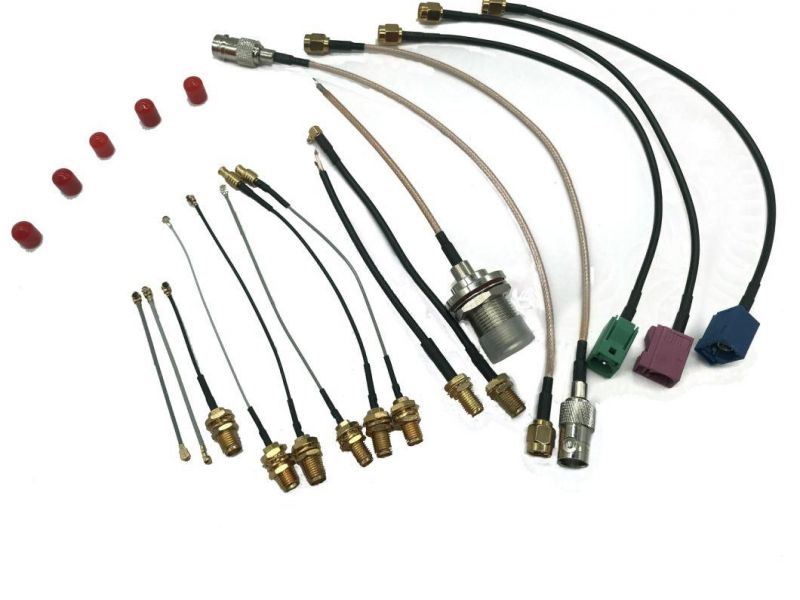

more  cables for reference:
RF Cable, Coaxial Cable for Connecting The Communication Antennas (TOP-SMA-C07)



Our  Cable :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price


FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .

2.  How about the defective rate ?
Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.

Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
