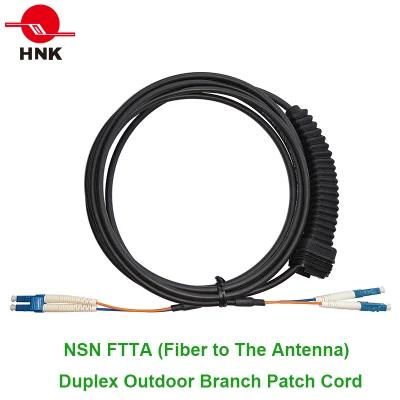

Nsn Duplex LC Arbitrary Bending Connector 5.0mm Ftta Patch Cord

HNK Optic Equipment Co., LIMITED
  • Application：Communication
  • Type：Singlemode or Multimode
  • Connection Structure：Sc, FC, St, LC, Mu, E2000, DIN
  • Material Shape：Round
  • Allowed Lateral Pressure：1100 N,100mm ~ 2200 N,100mm
  • Allowed Tensile Strength：200n ~ 400n

Base Info

  • Model NO.：NSN-LC
  • Core：Duplex
  • Certification：RoHS, UL, CE, ISO9001
  • Sheath Material：LSZH
  • Connector：According to Requirement
  • Cable Length：According to Requirement
  • Branch Cable Length：According to Requirement
  • Transport Package：PE Bag +Carton
  • Specification：RoHS
  • Trademark：HNK or OEM
  • Origin：Shenzhen, China
  • HS Code：90011000
  • Production Capacity：100000PCS,Month

Description

≥98N
Ordering Information

Using the available configurations amend/create product codes using the formula below.
Part Number: NSNPC-AA-BB-CDE

Ordering Guide

AABBCDE
Connector TypeConnector TypeFiber TypeCable LengthBranch Cable Length
FP, SP, SA, LPFP, SP, SA, LPOM1=62.5/125 OM1, OM2=50/125 OM2
OM3=50/125 OM3, OM4=50/125 OM4
G652D=9/125 G652D, G657A=9/125 G657A		003=3M
020=20M
100=100M		02=0.2M
...
10=1M

Connector Type Code

CodeConnector CodeConnector CodeConnector CodeConnector
FPFC/PCFAFC/APCLPLC/PCLALC/APC
SPSC/PCSASC/APCTPST/PCTAST/APC

Ordering Sample
Part NumberDescription
NSNPC-LP-LP-G657A30005LC/PC-LC/LPC NSN FTTA Duplex Outdoor Branch Patch Cord,
Singlemode G657A, 300M, Branch Cable 0.5M.
