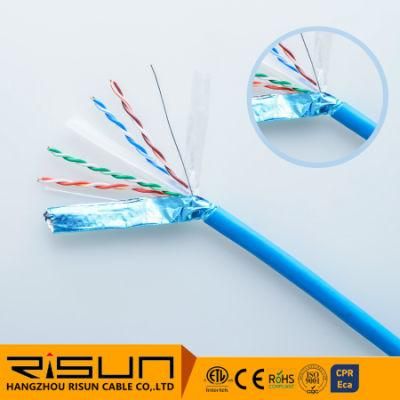

305m Wooden Reel FTP CAT6 LAN Cable with Carton

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：FTP Cat6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Brand：Risun or OEM
  • Insulation：HDPE
  • Filler：Yes
  • Shield：Al,Pet Foil
  • Drain：Tc
  • UV, Jelly, Fr：Available
  • Transport Package：305m,Pull Box, 2boxes,CTN.
  • Specification：ETL, CE, RoHS, SGS, ISO9001
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, Zhejiang, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa



Electrical Properties:

Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%



Technical Performance:

    Frequency          Attenuation         RL    Next        PS Next         (MHz)         (≤dB/100M)        (≥dB)     (≥dB)         (≥dB)            4               3.8         23.0    66.3          63.3           10               6.0         25.0    60.3          57.3           16               7.6         25.0    57.2          54.2           20               8.5         25.0    55.8          52.8         31.2              10.7         23.6    52.9          49.9         62.5              15.4         21.5    48.4          45.4         100              19.8         20.1    45.3          42.3         200              29.0         18.0    40.8          37.8         250              32.8         17.3    39.3           36.3

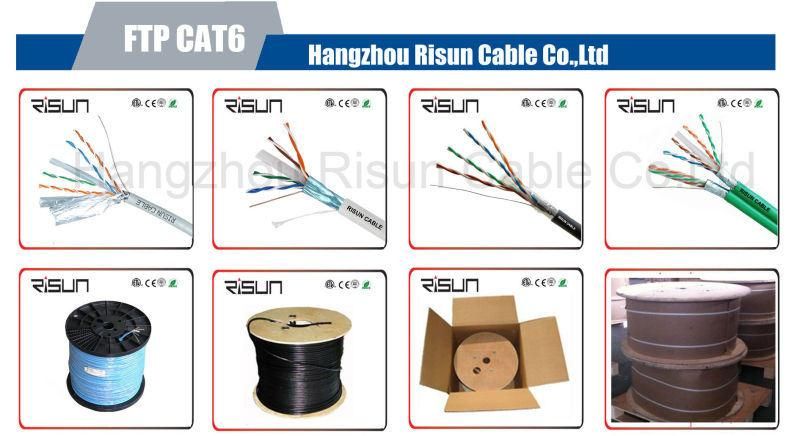

305m Wooden Reel FTP CAT6 LAN Cable with Carton

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.


305m Wooden Reel FTP CAT6 LAN Cable with Carton
305m Wooden Reel FTP CAT6 LAN Cable with Carton



Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.
