• Model NO.：GYTS 288 Core Optical Fiber Cable
• Certification：RoHS, ISO9001, Reach, Tlc etc
• Brand：Tw-Scie or OEM
• Sheath Material：MDPE , HDPE , LSZH
• Model No：GYTS 288 Core Optical Fiber Cable
• Fiber Count：2-288 Core Optical Fiber Cable
• Brand Name of Fiber：Corning, Yofc, as Your Requirement
• Loose Tube Material：PBT
• Loose Tube Filling Material：Jerry

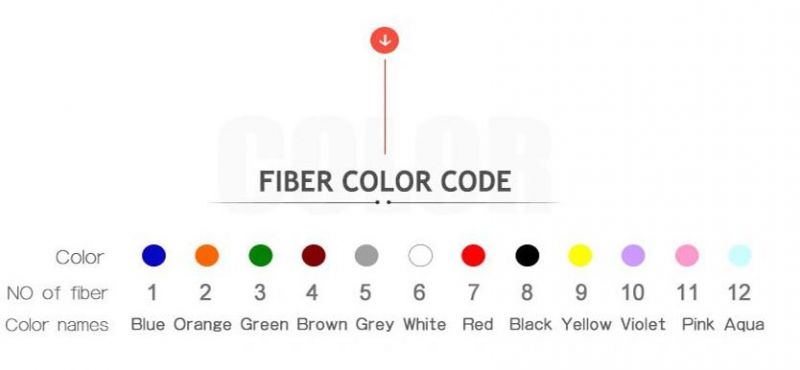

• Color of Loose Tube：Red, Black, Yellow, Viol Blue etc
• Central Strength Member：Steel Wire or FRP
• Single Armour Material：Corrugated Steel Tape
• Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
• Installation Style：Duct &Aerial
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, Guangdong, China (Mainland)
• HS Code：854470000
• Production Capacity：200km,Day

Overview Detailed Photos

GYTS Duct Anti-crush 288 Core Optical Fiber Cable Details:

Product Description

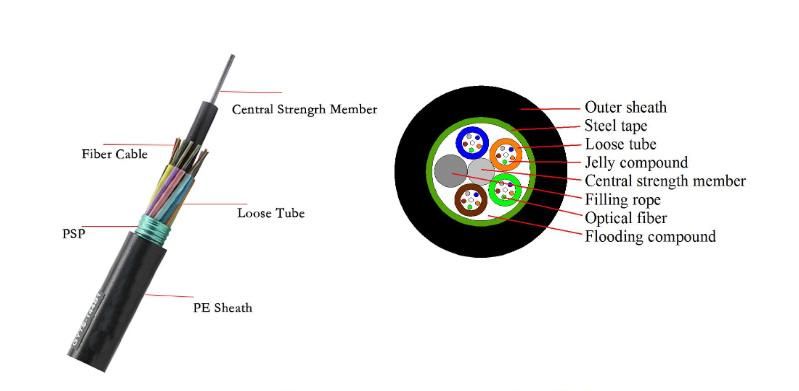

This GYTS Duct Anti-crush 288 Core Optical Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTS Duct Anti-crush 288 Core Optical Fiber Cable are designed for easy and economical installation.

GYTS Duct Anti-crush 288 Core Optical Fiber Cable Features:
Excellent optical, mechanical & environmental performance
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible  bending radius
 Application

GYTS Duct Anti-crush 288 Core Optical Fiber Cable Application:

Long haul / backbone application
Duct or aerial installation
 Technical Data

GYTS Duct Anti-crush 288 Core Optical Fiber Cable Technical data:

Fiber Num.Outer diameter (mm)Weight (kg/km)Min. Bending radius(mm)Tension (N)Crash loading (N/100mm)StaticDynamicShort termLong termShort termLong term2-309.89510 times O. D.20 times O. D.1500600100030032-3610.311538-6010.711562-7211.314074-9612.917598-12014.4210122-14415.8245146-21616.3260218-24019.5345242-28821.7415

 Packaging & Shipping

GYTS Duct Anti-crush 288 Core Optical Fiber Cable Packaging Detail:

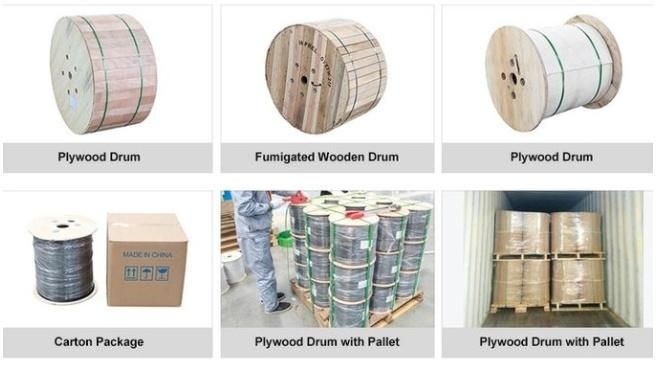

GYTS 2-288 Core Optical Fiber Cable package are  wooden drum.  Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers.


Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

 Certifications

REACH

ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate


 Company Profile

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Please contact with us for this GYTS Duct Anti-crush 288 Core Optical Fiber Cable.
