Yh Flexible Copper Welding 35mm2 H05rn-F H07rr-F Rubber Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Welding Machine
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：Rubber Cable
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC
- Brand：Rmjt
- Product Name：Welding Cable
- Transport Package：as Your Request
- Specification：10mm2-240mm2
- Trademark：RMJT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：5000km Each Month
Description
NameMain applications Working temperature
of core ≤0C YH Natural Rubber Sheath for Welding Cable Always used indoor 65 YHF Neoprene Rubber Sheath Welding Cable Always used outdoor 65 Synthetic elastomer Sheath Welding Cable Model Name Main Usage YQ YQW Light Model Rubber Sheath Flexible Cable Used for light portable electric equipment and tools YZ YZW Middle Model Rubber Sheath Flexible Cable Used for various portable electric equipment and tools YC YCW Heavy Model Rubber Sheath Flexible Cable Used for various portable electric equipment which can
bear larger mechnical force effect .
No./diameter of stranding(mm)Nominal sheath thickness (mm) Overall diameter(mm) Max. conductor resistance at 20ºC(Ω/km) Min. Max. Without tinned With tinned 10 322/0.20 1.8 7.5 9.7 1.91 1.95 16 513/0.20 2.0 9.2 11.5 1.16 1.19 25 798/0.20 2.0 10.5 13.0 0.758 0.780 35 1121/0.20 2.0 11.5 14.5 0.536 0.552 50 1596/0.20 2.2 13.5 17.0 0.379 0.390 70 2214/0.20 2.4 15.0 19.5 0.268 0.276 95 2297/0.20 2.6 17.0 22.0 0.198 0.204 120 1702/0.30 2.8 19.0 24.0 0.161 0.164 150 2135/0.30 3.0 21.0 27.0 0.129 0.132 185 1443/0.40 3.2 22.0 29.0 0.106 0.108 240 1908/0.40 3.8 25.0 35.0 0.0801 0.0817
Nominal strandingNominal overall diameter Approx. net weight (LBS/1000ft) Max. conductor resistance at 20ºC(Ω/km) AWG mm inch mm 6 259/30 259/0.254 0.430 10.92 152 1.33 4 418/30 418/0.254 0.475 12.07 215 0.84 2 646/30 646/0.254 0.540 13.72 296 0.53 1 836/30 836/0.254 0.580 14.73 360 0.42 1/0 1032/30 1032/0.254 0.615 15.62 424 0.33 2/0 1290/30 1290/0.254 0.655 16.64 513 0.26 3/0 1672/30 1672/0.254 0.720 18.29 644 0.21 4/0 2066/30 2066/0.254 0.780 19.81 824 0.17
Company Information

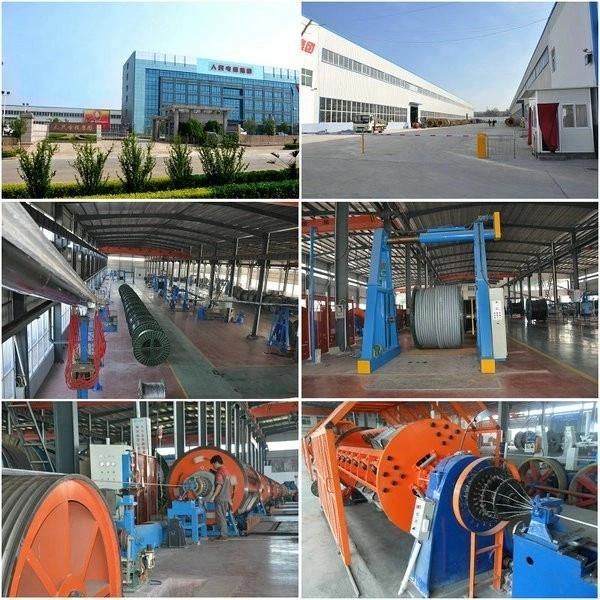

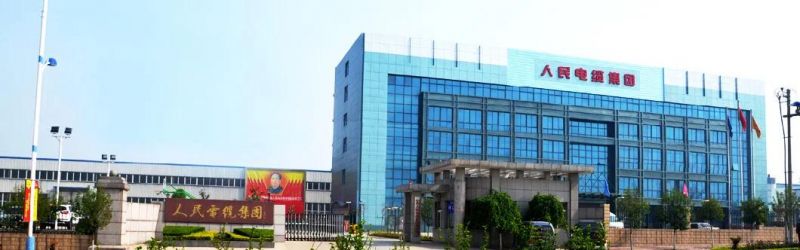

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
As one of the country's regional enterprise has the domestic first-class production system,Professional high school producton of low-voltage wire and cable series,the main products are cable of rail transportation,aviation special cables,solar photovoltaic special cables,computer cables,LSZH cables,overhead conductors of large cross-section,special signal transmission cable,35kv and the following cross-linked polyethylene insulated power cables,PVC ACSR 100 varieties,more than 3000 specifications.Products supporting the national grid,the Minitry of Railways,Ministry of Water Resources and other national key projects as well as more than a dozen countries and regions in Southeast Asia,the Middle East,South America and other large and medium-sized construction projects,customers have been trusted.
