Bare Stranded Conductor All Aluminum Conductor AAC AAAC Cable
HENAN BAIFA ELECTRIC POWER CO., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AAC
- Material Shape：Round Wire
- Range of Application：Overhead,Power Station
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Hnbf Power
- Transport Package：Export Wooden Drum or Rolls
- Specification：Customerized
- Trademark：HNBF Power
- Origin：China
- HS Code：7614900000
- Production Capacity：50000 Meters Per Day
Description

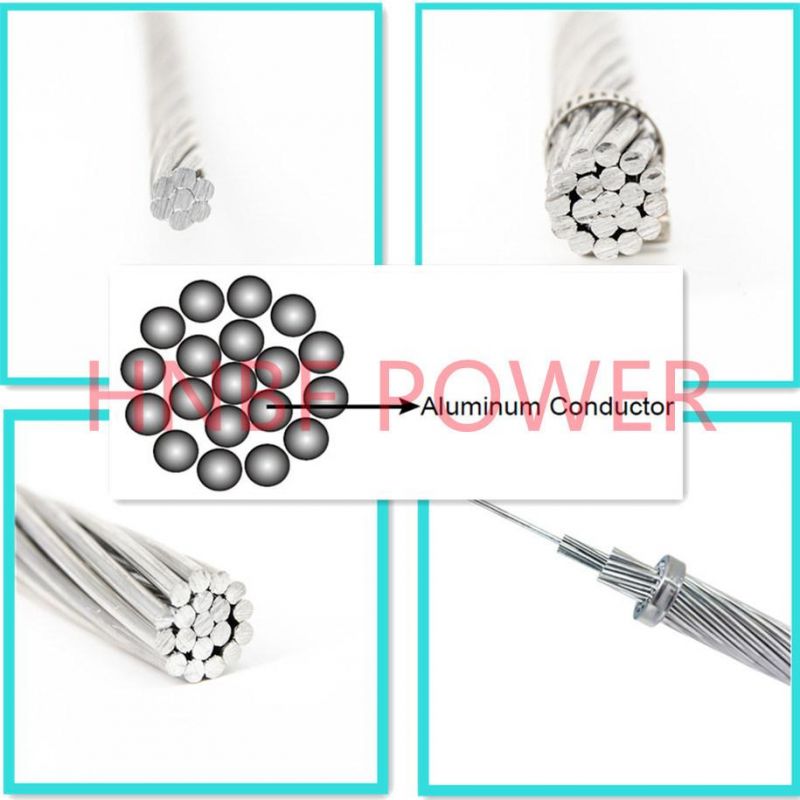

(AAC)All aluminum conductor
English Model: AAC ;Chinese Model :LJ. Full name All Aluminum Conductor . It's made of one or more hard drawn aluminum alloy twisted together. Material :Aluminum .
Application
AAC conductors have good mechanical properties and electrical conductivity, set up by iron tower or telegraph pole. AAC Conductor have been widely used in power transmission lines with various voltage levels,.Under the same weight. AAC is with higher DC resistance and lower cost than copper conductor. They are also suitable for laying across rivers, valleys and the places where special geographical features exist.
Advantage
1.Can be used for low, medium and high voltage overhead lines.
2.Simple structure, convenient installation and maintenance.
3.Excellent corrosion resistance.
4.Low cost, large transmission capacity.

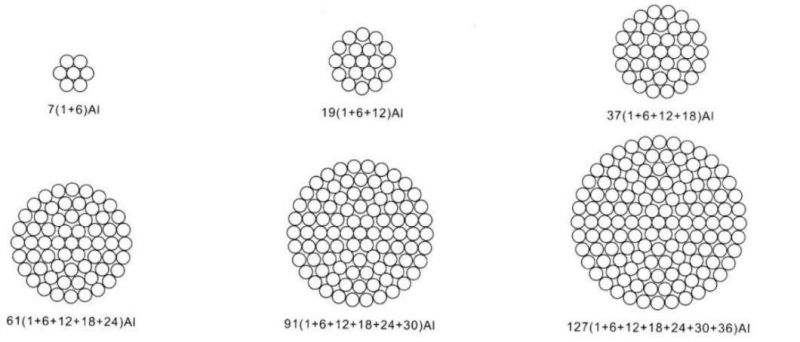

Structure
Standard:BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 (Part)
1. IEC 61089: Round wire concentric lay overhead electrical stranded conductors
2. DIN 48 201-5: All Aluminium Conductors
3. BS 215-1: Aluminium strander conductors
4. ASTM B231: Stranded Specification for Concentric-Lay-Stranded Aluminium 1350 Conductors
5. AS 1531: Conductors-Bare overhead-Aluminium and aluminium alloy

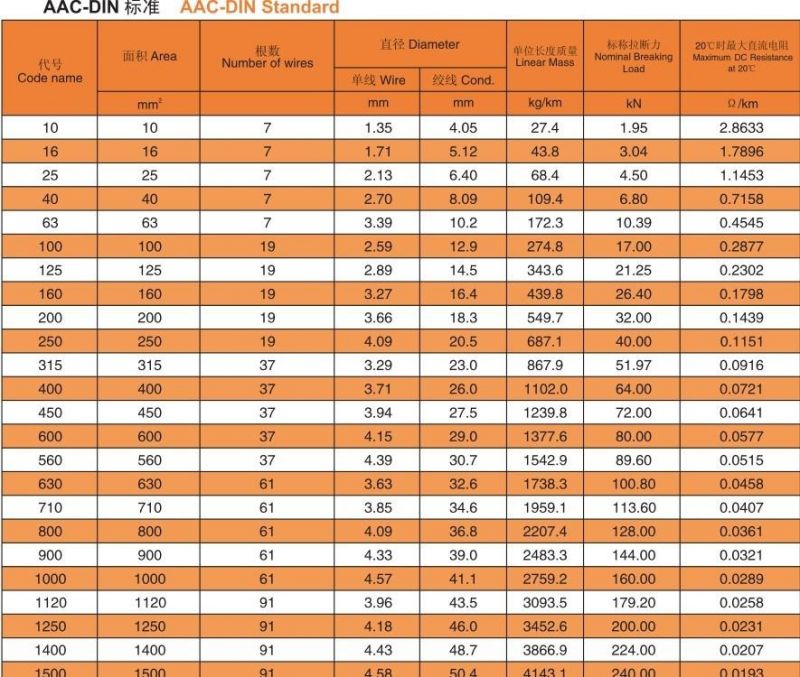

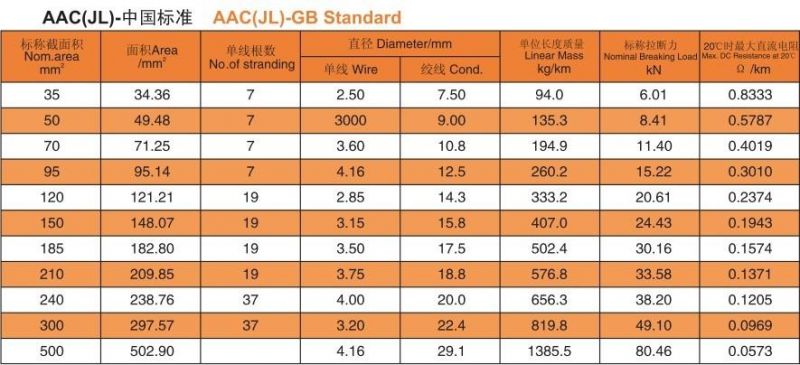

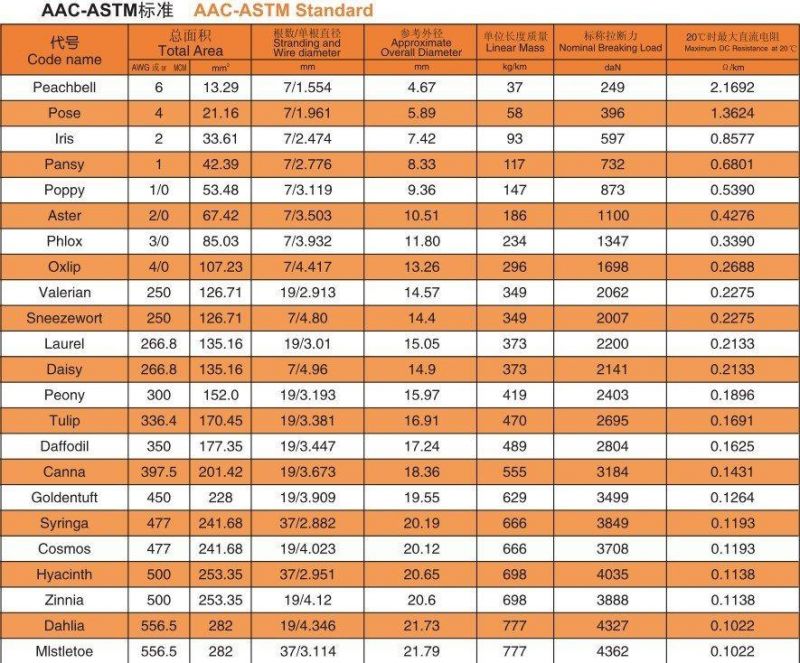

Technical Parameters
Our company
Henan Baifa Electric Power Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together. It's factory Henan Xunda Cable Co., Ltd was established in 2001, and is located in the Science & Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. The traffic & transportation are extremely convenient with beautiful environment there.
Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.
About Us Henan Baifa Electric Power Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together. It's factory Henan Xunda Cable Co., Ltd was established in 2001, and is located in the Science & Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. The traffic & transportation are extremely convenient with beautiful environment there.
Our corporation has passed the ISO9001 quality management system certification, ISO14001 environmental management system certification and GB / T28001-2001 occupational health and safety management system certification, CE European Union Product Certification, CCC China Compulsory Certification, PCCC Power Product Certification, and Flame and Fire Retardant Cable Certification, Coal Safety Certification, High-tech New Enterprise in Henan Province and China Famous Brand.
We have the advanced production and testing equipment made from China and abroad countries, completed scientific management system, and mature production technology with strict controlling of raw materials, to provide qualified and reputed products and services for customers. The annual production capacity is 2,600,000.00 km cables and wires. In our factory, there are above 200 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. With strong technical forces indeed, we have many technical and production workers to make sure the production demand. The main products we can produce are Aerial Bundled Cables (ABC), bare conductors (AAC, AAAC, ACSR, ACAR, ACS, CCS, GUY WIRE, STAY WIRE, STEEL WIRE etc.) , power cables and special cables including all the four series products.
Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Canada, Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.
Our principle is quality first, customer is God, to make them satisfied. Our goal is Baifa Power, Powering Strongly, to make the worldwide power grid operating orderly
