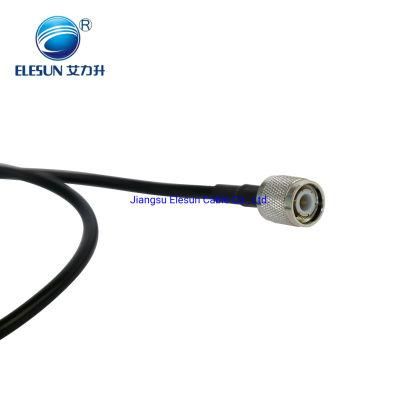

Factory OEM High Frequency Low Loss Coaxial Cable LMR600 LMR400 LMR300 LMR240 LMR195 LMR100 for Antenna System
Jiangsu Elesun Cable Co., Ltd.- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
Base Info
- Model NO.：ALSR400
- Type：Alsr400
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Alsr400
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,2.74mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：7.24mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：144*0.15mm
- Material of Jacket：PE, PVC, LSZH, Fr-PVC, Fr-LSZH
- Diameter of Jacket：10.29mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：2500V
- Swr(0-2500MHz)：≤1.2
- Min.Bending Radius：51.5mm
- Transport Package：150m,Roll,CTN
- Specification：38*38*30
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
- Package size per unit product：29.00cm * 29.00cm * 26.00cm
- Gross weight per unit product：12.000kg
Description
ALSR400(LMR400) low loss coaxial cable specificationsMaterial of Inner Conductor BC (Bare Copper) Structure of Inner Conductor 1/2.74mm Material of Insulation FPE(Foam PE) Diameter of Insulation 7.24mm 1st Shielding Aluminum Tape Material of Braiding(2nd Shielding) TC (Tinned Copper) Structure of Braiding(2nd Shielding) 144*0.15mm Material of Jacket PE, PVC, LSZH,FR-PVC,FR-LSZH Diameter of Jacket 10.29mm Working temp -40ºC/80ºC Impedance 50Ω±2 Voltage 2500V SWR(0-2500MHz) ≤1.2 Min.Bending Radius 51.5mm
