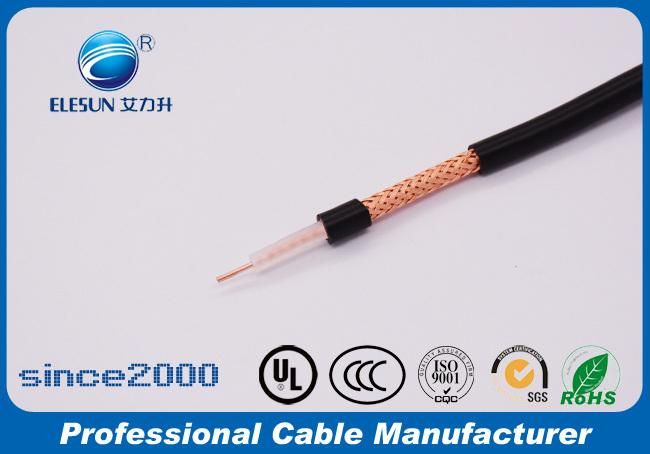

Rg58 50ohm Low Loss RF Coaxial Cable

Jiangsu Elesun Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Rg58
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG58
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：Rg58
  • Brand：Elesun
  • Material of Inner Conductor：Bare Copper
  • Structure of Inner Conductor：1,0.90mm
  • Material of Insulation：Solid PE
  • Diameter of Insulation：2.95mm
  • Material of Braiding(Shielding)：CCA, Bare Copper, Tinned Copper
  • Structure of Braiding(Shielding)：96*0.12mm
  • Material of Jacket：PVC
  • Diameter of Jacket：5.0mm
  • Working Temp：-40ºC,80ºC
  • Impedance：50Ω±2
  • Voltage：1900V
  • Weight：40kg,Km
  • Transport Package：500m,Roll,CTN
  • Specification：32.5*31*16.5cm
  • Trademark：ELESUN
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：10000m,Day

Description

Rg58 50ohm Low Loss RF Coaxial CableDescription:
. Standard Mil-c-17
. Equivalent to :SYV-50-3(GB Standard)
. Insulation Material: Solid PE
. Impedance:50Ω±2
. Color: Black, White

Typical Application:Transmission of data signals in applications such as antenna feed cables or Ethernet backbones, it is often used for low-power signal and RF connections.

Best Feature:
RG-58/U cable has a characteristic impedance of 50Ω. "RG" was originally a unit indicator for bulk RF cable in the U.S. military's Joint Electronics Type Designation System. The material of conductor is usually bare copper, the shielding is braided Bare Copper wire or Tinned Copper (70% to 95% coverage)
The outside diameter of RG-58 is around 5mm. RG58/U weighs around 40g/m, exhibits approximately 82pF/m capacitance. The maximum voltage is 300 V. RG-58 cable has a solid center conductor. The RG-58A/U features a flexible 7 or 19 strand center conductor.

Custom Service:
RG58coax cable is often combined with BNC connectors and N connectors,please contact with us for free sample of RG58 coaxial cable assembly.


RG58 50ohm low loss rf coaxial cable for communication
 RG58/U coaxial cable specificationsMaterial of Inner ConductorBare CopperStructure of Inner Conductor1/0.90mmMaterial of Insulation Solid PEDiameter of Insulation2.95mmMaterial of Braiding(Shielding)CCA, Bare Copper, Tinned CopperStructure of Braiding(Shielding)96*0.12mmMaterial of Jacket PVCDiameter of Jacket5.0mmWorking temp-40ºC/80ºCImpedance50Ω±2Voltage1900VWeight 40KG/KM
