Sac 25/4.2 35/6.2 50/8 70/11 95/16 120/19 ACSR Conductors Gohst 839
Henan Kingyear Aluminum Industrial Co., Ltd.- Type：Bare

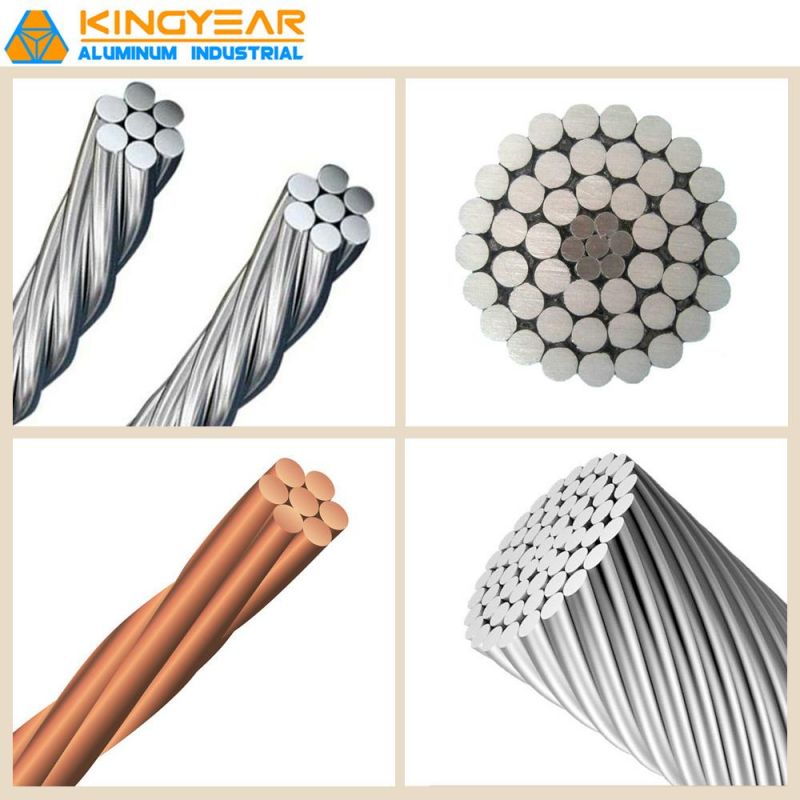

- Conductor Type：Stranded

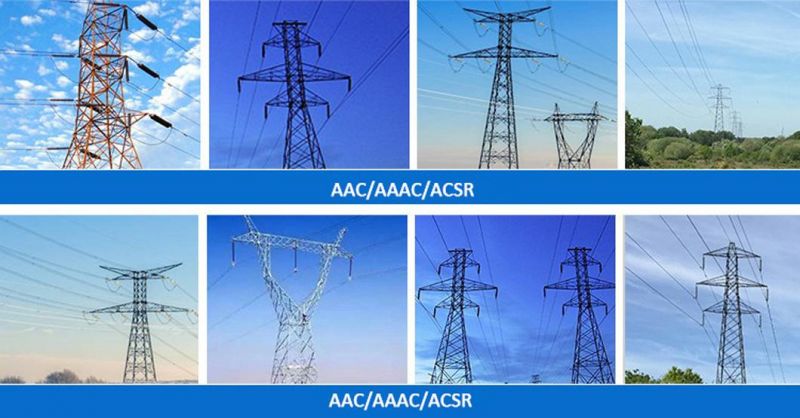

- Application：Overhead
- Conductor Material：Aluminum
- Insulation Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：SAC Conductor
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Standard：BS 215, ASTM B232, DIN 48204
- Delivery：7-25days After Received The Prepayment
- Hot Sale Countries：Philippine, Yemen, Vietnam, Indonesia
- Transport Package：Wooden Drum or Roll, Iron Drum
- Specification：10mm2-1500mm2
- Trademark：KINGYEAR
- Origin：Henan, China
- HS Code：7614100000
- Production Capacity：500km,Month
Description
Totalmm² mm² mm² mm² mm mm mm mm kg/km kg/km kg/km kn ohm/km Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 4.5 29 14 43 4.14 2.076 Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368 Gopher 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093 Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077 Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.2 0.7822 Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 9 117 55 172 15.2 0.6766 Rabbit 50 52.88 8.82 61.7 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426 Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 10.98 173 82 255 21.8 0.4545 Skunk 60 63.27 36.93 100.3 12/2.59 7/2.59 12.95 175 290 465 53 0.4567 Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 11.97 205 97 302 25.7 0.3825 Horse 70 73.37 42.8 116.17 12/2.79 7/2.79 13.95 203 335 538 61.2 0.3936 Racoon 75 79.2 13.2 92.4 6/4.10 1/4.10 12.3 217 103 320 27.2 0.3622 Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.8 0.3419 Cat 90 95.4 15.9 111.3 6/4.50 1/4.50 13.5 262 124 386 32.7 0.3007 Hare 100 105 17.5 122.5 6/4.72 1/4.72 14.16 288 137 425 36 0.2733 Dog 100 105 13.5 118.6 6/4.72 7/1.57 14.15 288 106 394 32.7 0.2733 Hyena 100 105.8 20.44 126.2 7/4.39 7/1.93 14.57 290 160 450 40.9 0.2712 Leopard 125 131.3 16.8 148.1 6/5.28 7/1.75 15.81 360 132 492 40.7 0.2184 Cougar 125 130.3 7.25 137.5 18/3.05 1/3.05 15.25 362 57 419 29.8 0.2189 Tiger 125 131.1 30.6 161.7 30/2.36 7/2.36 16.52 362 240 602 58 0.2202 Wolf 150 158 36.9 194.9 30/2.59 7/2.59 18.13 437 289 726 69.2 0.1828 Dingo 150 158.7 8.8 167.5 18/3.25 1/3.35 16.75 437 69 506 35.7 0.1815 Lynx 175 183.4 42.8 226.2 30/2.79 7/2.79 19.53 507 335 842 79.8 0.1576 Caracal 175 184.2 10.3 194.5 18/3.61 1/3.61 18.05 507 80 587 41.1 0.1563 Lion 225 238.3 55.6 294.2 30/3.18 7/3.18 22.26 659 436 1095 109.6 0.1212 Bear 250 264 61.6 325.6 30/3.35 7/3.55 23.45 730 483 1213 111.1 0.1093 Goat 300 324.3 75.7 400 30/3.71 7/3.71 25.97 896 593 1489 135.7 0.08911 Sheep 350 374.1 87.3 461.4 30/3.99 7/3.99 27.93 1034 684 1718 155.9 0.07704 Antelope 350 373.1 48.4 421.5 54/2.97 7/2.97 26.73 1032 379 1411 118.2 0.07727 Bison 350 381.8 49.5 431.3 54/3.00 7/3.00 27 1056 388 1444 120.9 0.07573 Jaguar 200 210.6 11.7 222.3 18/3.86 1/3.86 19.3 580 91 671 46.55 0.1367 Deer 400 429.3 100.2 529.5 30/4.27 7/4.27 29.89 1186 785 1971 178.5 0.06726 Zebra 400 428.9 55.6 484.5 54/3.18 7/3.18 28.62 1186 435 1621 131.9 0.0674 Elk 450 477 111.3 588.3 30/4.50 7/4.50 31.5 1318 872 2190 198.2 0.06056 Camel 450 475.2 61.6 536.8 54/3.35 7/3.35 30.15 1314 483 1797 145.7 0.06073 Moose 500 528.7 68.5 597.2 54/3.53 7/3.53 31.77 1462 537 1999 161.1 0.0547
FAQ
Q:I didn't find the ACSR Bare Conductor Cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
As a leading manufacture in China,Our customers come from around the world,Welcome to visit us at any time!
Just leave your message if you are interested in our products,We will contact you very soon!
-----------------------------------------------------
-----------------------------------------------------
