ACSR Conductor Aluminium Conductor Steel Reinforced for Overhead Line
People's Cable Group Co., Ltd.- Type:Bare
- Conductor Type:Stranded
- Application:Overhead
- Conductor Material:Aluminium
- Sheath Material:Bare
- Insulation Material:Bare
Base Info
- Model NO.:Gopher,Fox, Rabbit, Mink,Dog,Tiger, Wolf,Lynx,Bear
- Material Shape:Round Wire
- Range of Application:Overhead
- Certification:ISO9001, CE, CCC, BV
- Brand:Rmjt
- Voltage:High Voltage
- Structure:Racoon, Hare, Dingo, Panther, Moose
- Product Name:Aluminum Conductor Steel Reinforced
- Usage:Power Transimision
- OEM or ODM:Yes
- Country:China
- Standard:ASTM, IEC, DIN, BS
- Transport Package:Wooden Drum
- Specification:ASTM BS GB IEC DIN
- Trademark:RMJT
- Origin:China
- HS Code:7614100000
- Production Capacity:10000000meters,Year
Description
Aluminum Conductors Steel Reinforced BS 215 Part 2Code name Area Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal DC resistance at 20 deg. Nominal Alum. Alum. Steel Total Alum. Steel Alum. Steel Total mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km MOLE 10 10.62 1.77 12.39 6/1.50 1/1.50 4.50 29 14 43 4.14 2.076 SQUIRREL 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368 GOPHER 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093 WEASEL 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077 FOX 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.20 0.7822 FERRET 40 42.41 7.07 49.48 6/3.00 1/3.00 9.00 117 55 172 15.20 0.6766 RABBIT 50 52.88 8.82 61.70 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426 MINK 60 63.18 10.53 73.71 6/3.66 1/3.66 10.98 173 82 255 21.80 0.4545 SKUNK 60 63.27 36.93 100.30 12/2.59 7/2.59 12.95 175 290 465 53.00 0.4567 BEAVER 70 74.82 12.47 87.29 6/3.99 1/3.99 11.97 205 97 302 25.70 0.3825 HORSE 70 73.37 42.80 116.17 12/2.79 7/2.79 13.95 203 335 538 61.20 0.3936 RACOON 75 79.20 13.20 92.40 6/4.10 1/4.10 12.30 217 103 320 27.20 0.3622 OTTER 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.80 0.3419 CAT 90 95.40 15.90 111.30 6/4.50 1/4.50 13.50 262 124 386 32.70 0.3007 HARE 100 105.00 17.50 122.50 6/4.72 1/4.72 14.16 288 137 425 36.00 0.2733 DOG 100 105.00 13.50 118.50 6/4.72 7/1.57 14.15 288 106 394 32.70 0.2733 HYENA 100 105.80 20.44 126.20 7/4.39 7/1.93 14.57 290 160 450 40.90 0.2712 LEOPARD 125 131.30 16.80 148.10 6/5.28 7/1.75 15.81 360 132 492 40.70 0.2184 COYOTE 125 132.10 20.10 152.20 26/2.54 7/1.91 15.89 365 157 522 46.40 0.2187 COUGAR 125 130.30 7.25 137.50 18/3.05 1/3.05 15.25 362 57 419 29.80 0.2189 TIGER 125 131.10 30.60 161.70 30/2.36 7/2.36 16.52 362 240 602 58.00 0.2202 WOLF 150 158.00 36.90 194.90 30/2.59 7/2.59 18.13 437 289 726 69.20 0.1828 DINGO 150 158.70 8.80 167.50 18/3.35 1/3.35 16.75 437 69 506 35.70 0.1815 LYNX 175 183.40 42.80 226.20 30/2.79 7/2.79 19.53 507 335 842 79.80 0.1576 CARACAL 175 184.20 10.30 194.50 18/3.61 1/3.61 18.05 507 80 587 41.10 0.1563 PANTHER 200 212.00 49.50 261.50 30/3.00 7/3.00 21.00 586 388 974 92.25 0.1363 LION 225 238.50 55.60 294.20 30/3.18 7/3.18 22.26 659 436 1095 109.60 0.1212 BEAR 250 264.00 61.60 325.60 30/3.35 7/3.35 23.45 730 483 1213 111.10 0.1093 GOAT 300 324.30 75.70 400.00 30/3.71 7/3.71 25.97 896 593 1489 135.70 0.0891 SHEEP 350 374.10 87.30 461.40 30/3.99 7/3.99 27.93 1034 684 1718 155.90 0.07704 ANTELOPE 350 373.10 48.40 421.50 54/2.97 7/2.97 26.73 1032 379 1411 118.20 0.07727 BISON 350 381.80 49.50 431.30 54/3.00 7/3.00 27.00 1056 388 1444 120.90 0.07573 JAGUAR 200 210.60 11.70 222.30 18/3.86 1/3.86 19.30 580 91 671 46.55 0.13670 DEER 400 429.30 100.20 529.50 30/4.27 7/4.27 29.89 1186 785 1971 178.50 0.06726 ZEBRA 400 428.90 55.60 484.50 54/3.18 7/3.18 28.62 1186 435 1621 131.90 0.06740 ELK 450 477.00 111.30 588.30 30/4.50 7/4.50 31.50 1318 872 2190 198.20 0.06056 CAMEL 450 475.20 61.60 536.80 54/3.35 7/3.35 30.15 1314 483 1797 145.70 0.06073 MOOSE 500 528.70 68.50 597.20 54/3.53 7/3.53 31.77 1462 537 1999 161.10 0.05470

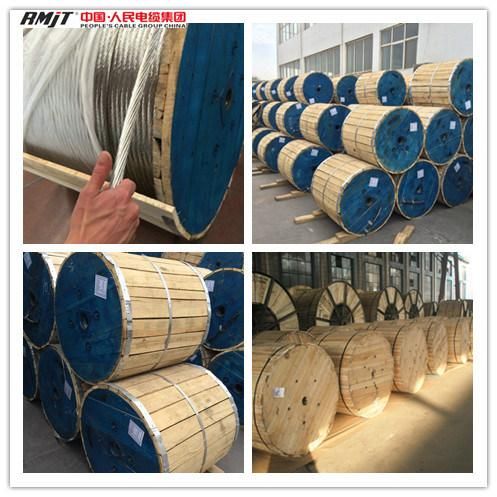

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.

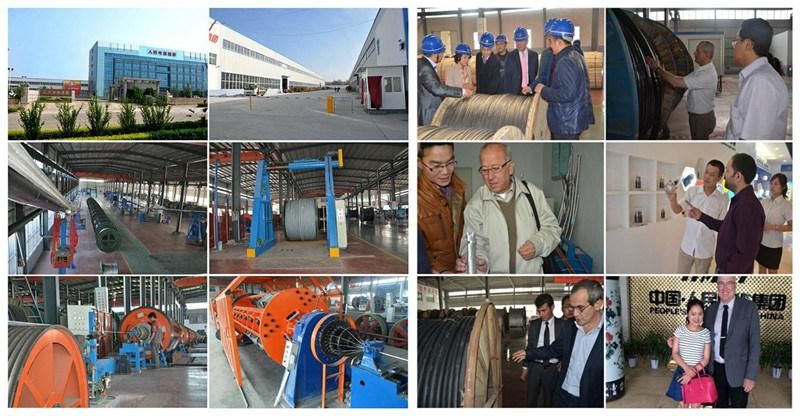

5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Certificate
As first rank of the cable supplier in China, we have obtained CE, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

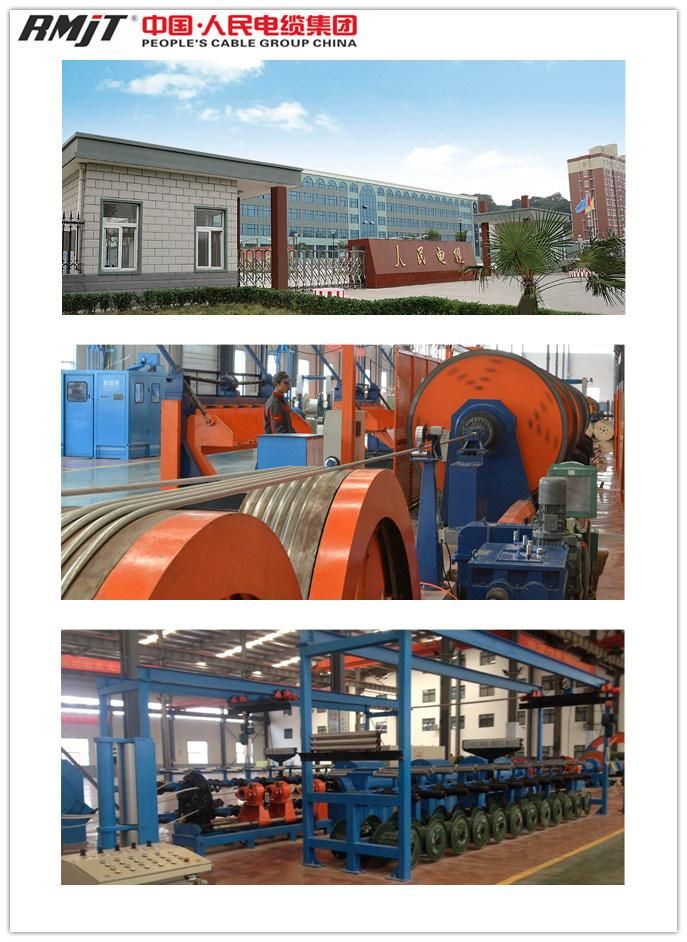

7.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
8.Contacts
Vivian Wong
T: 86-371-55632835 | M: 86-17719852022
