50 Ohm Plenum-Rated Fire-Retardant Coaxial Cable
Shaoxing Shihang Electronic Cable Co., Ltd.- Application:Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PE
- Type:Plenum Coax
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:SHC-50-400-P
- Wire Core Material:Copper Clad Aluminum
- Certification:ISO, RoHS
- Model:Shc-50-400-P
- Brand:OEM
- Transport Package:Rolls, a Couple of Torus Stacks
- Trademark:SHC
- Origin:China
- HS Code:8544200000
Description
Overview
Product Description Material Diameter

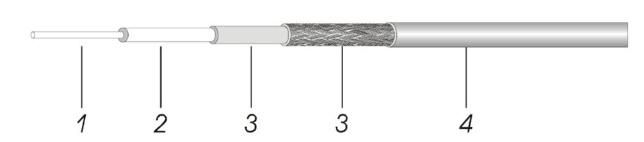

mm Center Conductor Solid BCCAI -- 1 2.74±0.025 Dielectric Foam FEP -- 2 7.24±0.13 Outer Conductor Aluminum Foil+ Tinned Copper braid -- 3 Nom.8.13 Jacket FR PVC(Orange) -- 4 10.16±0.2 Electrical CharacteristicsCut off Frequency GHz 15 Velocity % 76 Dielectric constant 1.73 Time Delay nS/M 4.40 Impedance Ω 50 Capacitance pF/m 81 Inductance µH/m 0.22 Shielding Effectiveness dB >90 Voltage Withstand VDC 2500 Jacket Spark VAC 8000 Peak Power kW 16 Mechanical and Environmental CharacteristicsBend Radius: Installation mm 25.4 Bend Radius: Repeated mm 101.6 Bending Movement N-m 1.36 Tensile Strength kg 54.5 Flat Plate Crush kg/mm 3.31 Operating Temp. ºC -5~+75 Storage Temp.ºC ºC -5~+75 Installation Temp.ºC ºC -5~+75 RoHS/REACH Compatible UL Approved Compatible Return Loss ≤ dB (0.03~3000MHz) ≤-18 Key PerformanceAttenuation & Average Power @ MHz Typical Attenuation
dB / 100m Max. Attenuation
dB / 100m Avg. kW 150 7.4 8.1 1.48 220 8.9 9.8 1.22 400 11.2 12.4 0.96 450 12.9 14.2 0.84 900 18.4 20.2 0.59 1000 19.5 21.4 0.56 1500 23.9 26.29 0.45 1800 26.5 29.15 0.41 2000 27.9 30.7 0.39 2500 31.4 34.5 0.34 3400 37.0 40.7 0.29 5800 50.0 55 0.22
Product Parameters
Construction
mm
dB / 100m
dB / 100m
