Concentric Cable 3 Core 8AWG Copper Tape Power Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper ,Al ,Alloy
- Sheath Material：PVC,PE
- Insulation Material：XLPE,PE,PVC
Base Info
- Model NO.：Electric Cable
- Material Shape：Round Wire
- Range of Application：Electric Service Entrance
- Certification：CCC
- Brand：Rmjt
- Material：Aluminum ,Copper ,Alloy, XLPE,PE
- Standard：ASTM, NFC ,IEC
- Transport Package：Export Drum, Coil, Carton
- Specification：2*6, 2*8, 2*10AWG, 3*6, 3*8, 3*10AWG
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：1000km Per Month
Description
ASTM 600/1000v
CoreAWG Structure Size (mm) Copper cable (kg/km) Conductor Insulation Concentric conductor Outer sheath Single wire XLPE Single wire UV-PVC No. Dia. Thick No. Dia. Thick Dia. 1 16 7 0.49 1.14 39 0.321 1.14 6.82 81.46 1 10 7 0.98 1.14 34 0.511 1.14 8.67 172.04 1 8 7 1.23 1.14 25 0.643 1.14 9.68 221.58 1 6 7 1.55 1.14 25 0.813 1.14 10.98 160.50 1 4 7 1.96 1.14 27 1.020 1.14 12.62 509.26 IEC 60502-1 IEC 60228 600/1000v Size (mm2) Structure Size mm Copper cable (kg/km) Concuctor Insulation Concentric conductor Outer sheath Single wire Dia. PVC Single wire UV-PVC No. Dia. Thick No. Dia. Thick Dia. (kg/km) 10 7 1.35 4.05 1.55 20 0.85 1.4 11.79 301.55 16 7 1.7 5.1 1.55 32 0.85 1.4 12.84 431.7 25 7 2.14 6.42 1.6 29 1.13 1.5 15.02 647.46 Aluminum Cable 16 7 1.7 5.1 1.55 26 1.13 1.4 13.42 244.16 25 7 2.14 6.42 1.6 29 1.13 1.5 15.02 307.3 35 19 1.53 7.65 1.65 27 1.35 1.6 16.99 390.15
Production Process:
XLPE/PVC/PE Insulated Concentric cable producing process is drawing ,extruding ,stranding and cabling,and our factory possess 2 subsidiaries,Zhitian factory is professional insulated cable workshop .

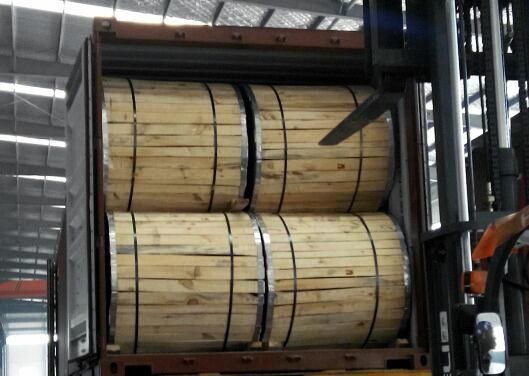

Package:
Package in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
About us:
People's Cable Group Co., Ltd.Was founded in 2007, located in Zhengzhou Gongyi economic development zone.Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

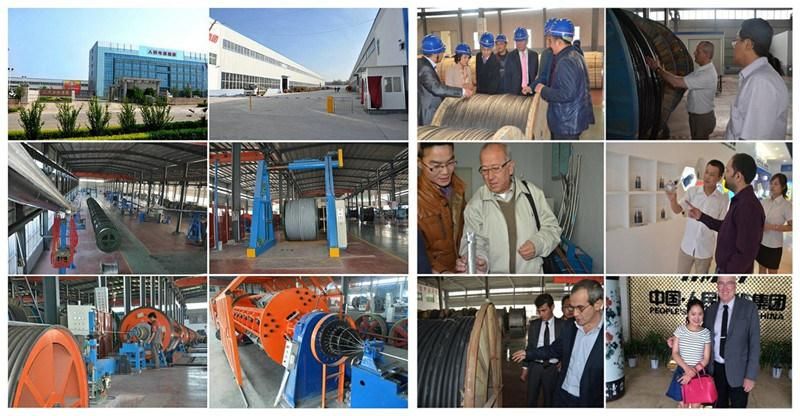

Customer Visit :
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
