Standard Thhn Thwn Tw Thw Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Solid, Strnd
- Application：Building, Machine, Industry
- Conductor Material：Copper, Al, Copper Clad Aluminum
- Sheath Material：Nylon, PVC
- Insulation Material：PVC
Base Info
- Model NO.： THHN THWN TW THW
- Material Shape：Round and Flat
- Range of Application：Building, Machine, Industry
- Certification：ISO9001, CCC, BV
- Brand：Rmjt
- Color：Black, Red, Yellow, White, etc.

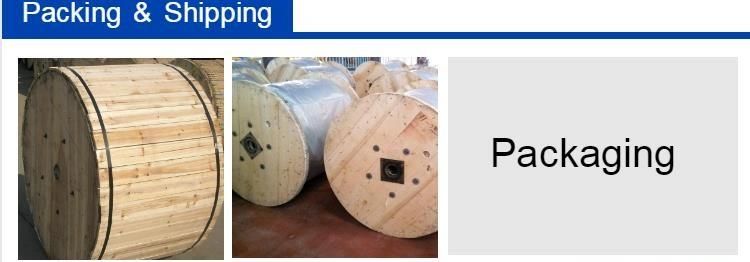

- Transport Package：Coil, Carton, Reel, Bag
- Specification：0.75mm2-240mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：2000km,Day
Description
AWG/MCMmm2 Conductor Insulation Shealth Total Weight Single Wire OD. PVC Nylon No. Dia. thick min min OD. Thick mils mm OD. mm mm mil mm mm mil mm mm mil mm mm kg/km 16 1.31 1 1.29 1.29 15 0.38 0.51 14 0.36 2.05 4 0.1 2.25 16.73 14 2.08 1 1.626 1.626 15 0.38 0.51 14 0.36 2.386 4 0.1 2.586 24.53 12 3.29 1 2.048 2.048 15 0.38 0.51 14 0.36 2.808 4 0.1 3.008 36.61 10 5.26 1 2.589 2.589 20 0.51 0.64 19 0.48 3.609 4 0.1 3.809 58 16 1.67 7 0.551 1.653 15 0.38 0.51 14 0.36 2.413 4 0.1 2.613 21.5 14 2.08 7 0.615 1.845 15 0.38 0.51 14 0.36 2.605 4 0.1 2.805 25.84 12 3.30 7 0.775 2.325 15 0.38 0.51 14 0.36 3.085 4 0.1 3.285 38.51 10 5.26 7 0.978 2.934 20 0.51 0.64 19 0.48 3.954 4 0.1 4.154 60.82 9 6.63 7 1.098 3.294 20 0.51 0.64 19 0.48 4.314 5 0.13 4.574 75.34 8 8.32 7 1.23 3.69 30 0.76 0.9 28 0.71 5.21 5 0.13 5.47 98.69 7 10.47 7 1.38 4.14 30 0.76 0.9 28 0.71 5.66 5 0.13 5.92 120.76 6 13.21 7 1.55 4.65 30 0.76 0.9 28 0.71 6.17 5 0.13 6.43 148.58 5 16.65 7 1.74 5.22 30 0.76 0.9 28 0.71 6.74 6 0.15 7.04 183.78 4 21.12 7 1.96 5.88 40 1.02 1.1 35 0.89 7.92 6 0.15 8.22 235.76 2 33.54 7 2.47 7.41 40 1.02 1.1 35 0.89 9.45 6 0.15 9.75 359.83 16 1.23 19 0.287 1.435 15 0.38 0.51 14 0.36 2.195 4 0.1 2.395 16.72 14 2.04 19 0.37 1.85 15 0.38 0.51 14 0.36 2.61 4 0.1 2.81 25.35 12 3.30 19 0.47 2.35 15 0.38 0.51 14 0.36 3.11 4 0.1 3.31 38.27 10 5.19 19 0.59 2.95 20 0.51 0.64 19 0.48 3.97 4 0.1 4.17 59.86 9 6.50 19 0.66 3.3 20 0.51 0.64 19 0.48 4.32 5 0.13 4.58 73.64 8 8.17 19 0.74 3.7 30 0.76 0.9 28 0.71 5.22 5 0.13 5.48 95.16 7 10.53 19 0.84 4.2 30 0.76 0.9 28 0.71 5.72 5 0.13 5.98 120.74 6 13.19 19 0.94 4.7 30 0.76 0.9 28 0.71 6.22 5 0.13 6.48 145.02 5 16.45 19 1.05 5.25 30 0.76 0.9 28 0.71 6.77 6 0.15 7.07 180.78 4 21.13 19 1.19 5.74 40 1.02 1.1 35 0.89 7.78 6 0.15 8.08 229.38 3 26.40 19 1.33 6.45 40 1.02 1.1 35 0.89 8.49 6 0.15 8.79 280.88 2 33.58 19 1.5 7.26 40 1.02 1.1 35 0.89 9.3 6 0.15 9.6 350.23 1 42.12 19 1.68 8.15 50 1.27 1.38 45 1.14 10.69 7 0.18 11.05 447.22 1/0 53.30 19 1.89 9.14 50 1.27 1.38 45 1.14 11.68 7 0.18 12.04 555.15 2/0 67.07 19 2.12 10.3 50 1.27 1.38 45 1.14 12.84 7 0.18 13.2 687.52 3/0 84.53 19 2.38 11.6 50 1.27 1.38 45 1.14 14.14 7 0.18 14.5 854.27 4/0 107.18 19 2.68 13 50 1.27 1.38 45 1.14 15.54 7 0.18 15.9 1068.65 250 125.72 37 2.08 14.2 60 1.52 1.67 55 1.4 17.24 8 0.2 17.64 1272.29 300 151.06 37 2.28 15.5 60 1.52 1.67 55 1.4 18.54 8 0.2 18.94 1512.81 350 177.29 37 2.47 16.8 60 1.52 1.67 55 1.4 19.84 8 0.2 20.24 1761.4 400 202.53 37 2.64 17.9 60 1.52 1.67 55 1.4 20.94 8 0.2 21.34 1999.42 500 252.89 37 2.95 19.7 60 1.52 1.67 55 1.4 22.74 8 0.2 23.14 2470.99 600 304.24 61 2.52 22 70 1.78 1.94 65 1.65 25.56 9 0.23 26.02 2998.91 650 328.87 61 2.62 22.9 70 1.78 1.94 65 1.65 26.46 9 0.23 26.92 3231.59 750 378.30 61 2.81 24.6 70 1.78 1.94 65 1.65 28.16 9 0.23 28.62 3697.59 1000 506.04 61 3.25 28.4 70 1.78 1.94 65 1.65 31.96 9 0.23 32.42 4896.32
TW THWTW THW
600V 60ºC
UL 83 UL 1581
Type TW and THW may be used for general purpose wiring for power and
lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations.
Maximum voltage rating= 600 VMAXIMUM CONDUCTOR TEMPERATURE type oil wet dry TW 60ºC 60ºC 60ºC THW 75ºC 75ºC 75ºC MTW* 60ºC 60ºC 90ºC * 1AWG AND LARGER ONLY mm2 Conductor Conductor Insulation Total Weight Type Single Wire OD. PVC kg/km No. Dia. Thick mm Thick min OD. mils 18 0.82 solid 1 1.02 1.02 30 0.76 0.89 0.7 2.54 14.82 16 1.31 solid 1 1.29 1.29 30 0.76 0.89 0.7 2.81 20.27 14 2.09 solid 1 1.63 1.63 30 0.76 0.89 0.7 3.15 28.6 12 3.33 solid 1 2.06 2.06 30 0.76 0.89 0.7 3.58 41.48 10 5.27 solid 1 2.59 2.59 30 0.76 0.89 0.7 4.11 60.93 8 8.35 solid 1 3.26 3.26 45 1.14 1.22 1 5.54 98.99 6 13.33 solid 1 4.12 4.12 60 1.52 1.67 1.4 7.16 162.23 4 21.16 solid 1 5.19 5.19 60 1.52 1.67 1.4 8.23 240.34 18 0.82 B 7 0.386 1.158 30 0.76 0.89 0.7 2.678 15.65 16 1.31 B 7 0.488 1.464 30 0.76 0.89 0.7 2.984 21.43 14 2.08 B 7 0.615 1.845 30 0.76 0.89 0.7 3.365 30.1 12 3.30 B 7 0.775 2.325 30 0.76 0.89 0.7 3.845 43.38 10 5.26 B 7 0.978 2.934 30 0.76 0.89 0.7 4.454 64.02 8 8.32 B 7 1.23 3.69 45 1.14 1.22 1 5.97 103.92 6 13.21 B 7 1.55 4.65 60 1.52 1.67 1.4 7.69 169.62 4 21.12 B 7 1.96 5.88 60 1.52 1.67 1.4 8.92 252.44 2 33.54 B 7 2.47 7.41 60 1.52 1.67 1.4 10.45 379.53 1 42.62 B 19 1.69 8.18 80 2.03 2.11 1.8 12.24 480.75 1/0 53.30 B 19 1.89 9.19 80 2.03 2.11 1.8 13.25 586.71 2/0 67.70 B 19 2.13 10.34 80 2.03 2.11 1.8 14.4 727.52 3/0 85.24 B 19 2.39 11.61 80 2.03 2.11 1.8 15.67 897.84 4/0 107.18 B 19 2.68 13 80 1.52 1.67 1.4 16.44 1097.15 250 126.94 B 37 2.09 14.2 95 2.41 2.56 2.2 19.02 1340.08 300 152.39 B 37 2.29 15.54 95 2.41 2.56 2.2 20.36 1586.07 350 177.29 B 37 2.47 16.79 95 2.41 2.56 2.2 21.61 1825.98 400 202.53 B 37 2.64 17.96 95 2.41 2.56 2.2 22.78 2068.12 500 252.89 B 37 2.95 20.04 95 2.41 2.56 2.2 24.86 2548.31 600 304.24 B 61 2.52 22 110 2.79 2.89 2.5 27.58 3084.92 750 380.99 B 61 2.82 24.64 110 2.79 2.89 2.5 30.22 3816.9 1000 506.04 B 61 3.25 28.4 110 2.79 2.89 2.5 33.98 5002.6
About us

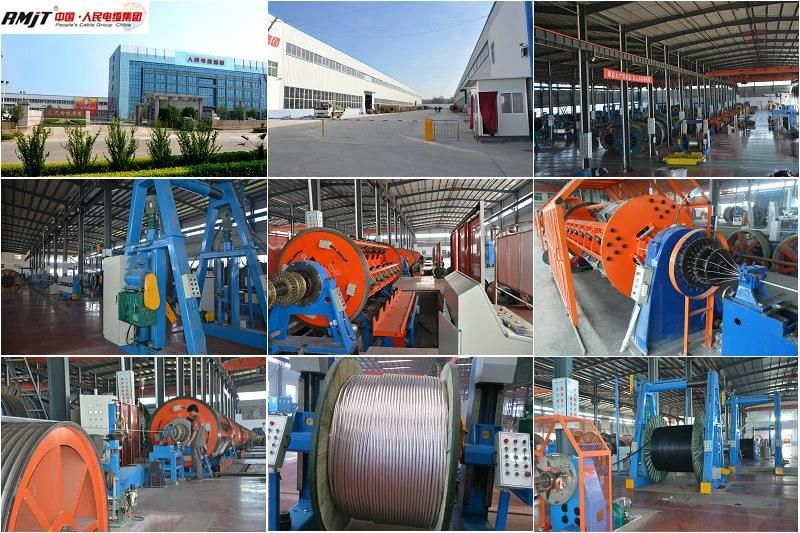

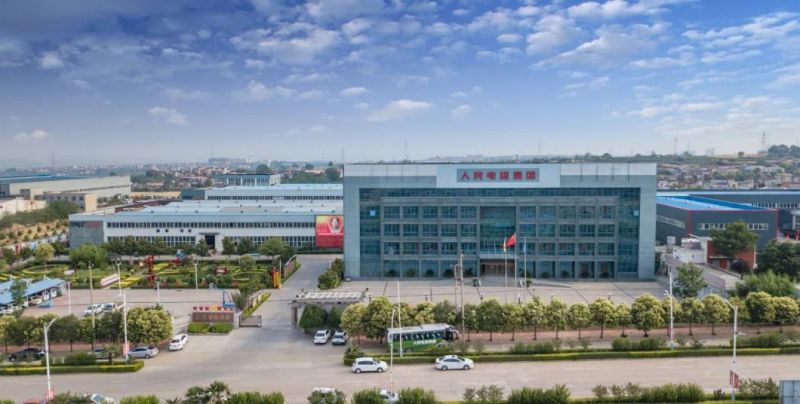

People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.
Certificate
People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
TW THWTW THW
600V 60ºC
UL 83 UL 1581
Type TW and THW may be used for general purpose wiring for power and
lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations.
Maximum voltage rating= 600 V
About us
People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.
Certificate
People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
