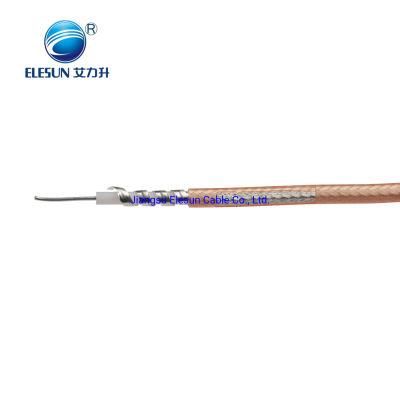

Factory OEM High Performance LSR200 LSR240 Coaxial Cable with SMA Male-SMA Female Connector for Telecom
Jiangsu Elesun Cable Co., Ltd.- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
Base Info
- Model NO.：LSR240
- Type：Alsr240
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Alsr240
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,1.42mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：3.81mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：112*0.12mm
- Material of Jacket：PE, PVC, LSZH
- Diameter of Jacket：6.10mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：1500V
- Swr(0-2500MHz)：≤1.2
- Min.Bending Radius：12.7mm
- Transport Package：250m,Roll,CTN
- Specification：38*38*20cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
- Package size per unit product：29.00cm * 29.00cm * 26.00cm
- Gross weight per unit product：15.000kg
Description

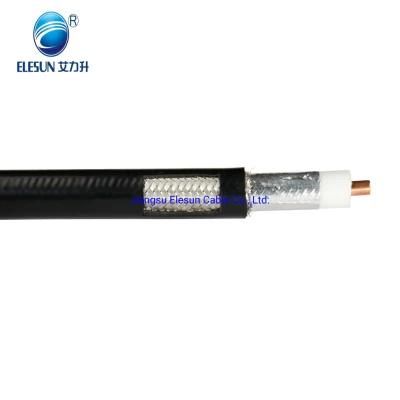

A LSR240 low loss coaxial cable specificationsMaterial of Inner Conductor BC (Bare Copper) Structure of Inner Conductor 1/1.42mm Material of Insulation FPE(Foam PE) Diameter of Insulation 3.81mm 1st Shielding Aluminum Tape Material of Braiding(2nd Shielding) TC (Tinned Copper) Structure of Braiding(2nd Shielding) 112*0.12mm Material of Jacket PE, PVC, LSZH Diameter of Jacket 6.10mm Working temp -40ºC/80ºC Impedance 50Ω±2 Voltage 1500V SWR(0-2500MHz) ≤1.2 Min.Bending Radius 12.7mm
