ACSR AAC AAAC Acar Bare Conductor
People's Cable Group Co., Ltd.- Type:Bare
- Conductor Type:Stranded
- Application:Overhead
- Conductor Material:Aluminum
- Sheath Material:Aluminum Alloy
- Insulation Material:Bare
Base Info
- Model NO.:AAAC Bare conductor
- Material Shape:Round Wire
- Range of Application:Overhead
- Certification:ISO9001
- Brand:Rmjt
- Model No.:AAAC Conductor
- Standard:ASTM B399 DIN4201
- Construction:Aluminium Alloy Cable Strand
- Voltage:High Voltage
- Material:Aluminium Alloy 6201
- Payment:20%T,T or L,C
- Colour:Sliver
- Delivery Time:20 Days
- MOQ:1 Ton
- Transport Package:Wooden Drum
- Specification:10MM2~500MM2 AAAC conductor
- Trademark:RMJT
- Origin:China
- HS Code:7614900000
- Production Capacity:30ton,Day
Description
Basic Info.
Model NO. AAAC Bare conductor Material Shape Round Wire Range of Application Overhead Certification ISO9001 Brand Rmjt Model No. AAAC Conductor Standard ASTM B399 DIN4201 Construction Aluminium Alloy Cable Strand Voltage High Voltage Material Aluminium Alloy 6201 Payment 20%T/T or L/C Colour Sliver Delivery Time 20 Days MOQ 1 Ton Transport Package Wooden Drum Specification 10MM2~500MM2 AAAC conductor Trademark RMJT Origin China HS Code 7614900000 Production Capacity 30ton/DayProduct Description
ACSR AAC AAAC ACAR Bare conductor1.Application
All Aluminum Alloy Conductor aaac cable Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR
2.Standard
AAAC-6201 bare conductor meets or exceeds the following ASTM standards
DIN 48201 Concentric-Lay-Stranded 6201 Aluminum Alloy Conductors.
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
3.Specification
Aluminum alloy 6201 wires. Concentrically stranded.
Code number | Calculated area | Number of wires | Diameter of wire | Overall diameter of conductor | Linear mass | Rated tensile strength | Max. DC resistance at 20ºC |
mm2 | mm2 | mm | mm | kg/km | daN | Ω/km | |
16 | 15.89 | 7 | 1.7 | 5.1 | 43 | 444 | 2.091 |
25 | 24.25 | 7 | 2.1 | 6.3 | 66 | 677 | 1.3703 |
35 | 34.36 | 7 | 2.5 | 7.5 | 94 | 960 | 0.9669 |
50 | 49.48 | 7 | 3 | 9 | 135 | 1382 | 0.6714 |
50 | 48.35 | 19 | 1.8 | 9 | 133 | 1350 | 0.6905 |
70 | 65.81 | 19 | 2.1 | 10.5 | 181 | 1838 | 0.5073 |
95 | 93.27 | 19 | 2.5 | 12.5 | 256 | 2605 | 0.3579 |
120 | 116.99 | 19 | 2.8 | 14 | 322 | 3268 | 0.2854 |
150 | 147.11 | 37 | 2.25 | 15.8 | 406 | 4109 | 0.2274 |
185 | 181.62 | 37 | 2.5 | 17.5 | 500 | 5073 | 0.1842 |
240 | 242.54 | 61 | 2.25 | 20.3 | 670 | 6774 | 0.1383 |
300 | 299.43 | 61 | 2.5 | 22.5 | 827 | 8363 | 0.112 |
400 | 400.14 | 61 | 2.89 | 26 | 1104 | 11176 | 0.0838 |
500 | 499.63 | 61 | 3.23 | 29.1 | 1379 | 13960 | 0.06709 |
625 | 626.2 | 91 | 2.96 | 32.6 | 1732 | 17490 | 0.054 |
800 | 802.09 | 91 | 3.35 | 36.9 | 2218 | 22402 | 0.0418 |
1000 | 999.71 | 91 | 3.74 | 41.1 | 2767 | 27922 | 0.0335 |

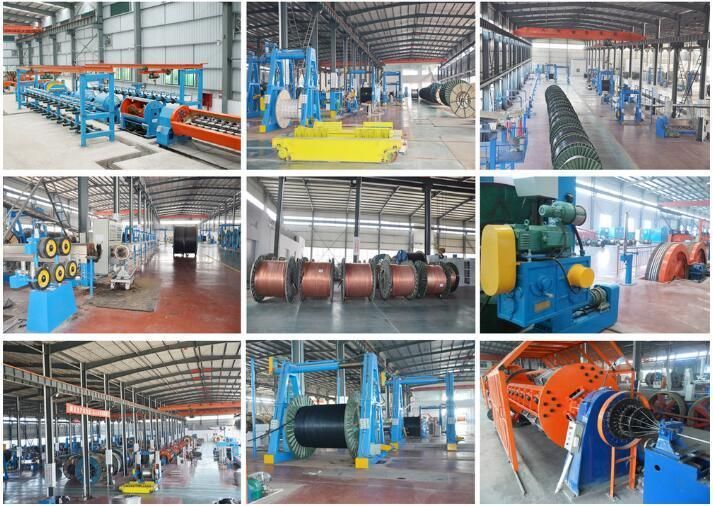

Production Line
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
Packing and Shipping
FAQ
1. What is our company's main advantage?
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer's requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
