Enamelled Copper Wire Enameled Copper Wire Winding Wire Rewinding Wire Magnet Wire (EI/AIW/200)
Zhejiang Grandwall Electric Science & Technology Co., Ltd.- Insulation Level：C
- Certification：ISO9001, UL, RoHS, Reash
- Brand：Shenzhou
- Application：Transformer, Instrument, Motor
- Shape：Round Wire
- Conductor Material：Copper Wire
Base Info
- Model NO.：Ei,Aiw,200
- Diameter：0.06-4.5
- UL No.：E206121
- Standard：IEC;JIS C;NEMA;GB

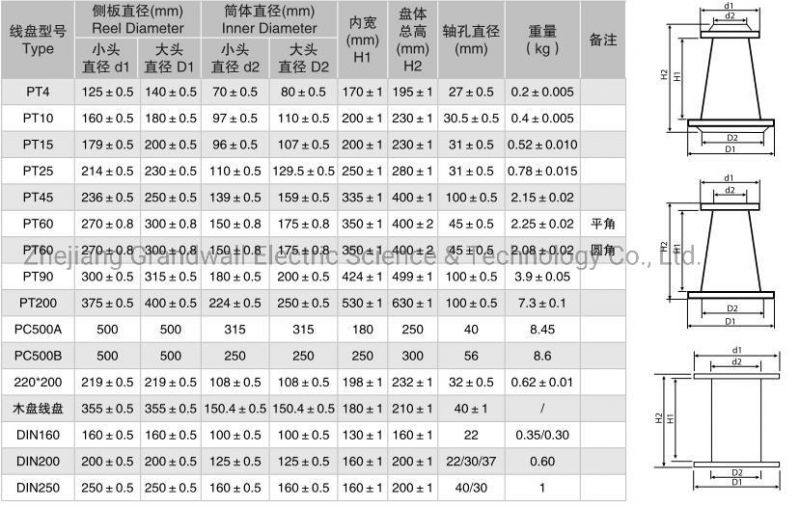

- Transport Packing：Wooden Box;Pallet
- H S Code：8544110000
- Thermal：200
- Conductor Type：Solid
- Enamelled Types：Enamelled Types
- Product Name：Ei,Aiw,200
- Transport Package：Cartons, Wooden Box
- Specification：IEC60317-13 JIS C3202 MW 35-C MW 73-C
- Trademark：n,n
- Origin：China
- HS Code：854411
- Production Capacity：1000000 Tons
Description
Basic Info.
Model NO. Ei/Aiw/200 Diameter 0.06-4.5 UL No. E206121 Standard IEC;JIS C;NEMA;GB Transport Packing Wooden Box;Pallet H S Code 8544110000 Thermal 200 Conductor Type Solid Enamelled Types Enamelled Types Product Name Ei/Aiw/200 Transport Package Cartons, Wooden Box Specification IEC60317-13 JIS C3202 MW 35-C MW 73-C Trademark n/n Origin China HS Code 854411 Production Capacity 1000000 TonsProduct Description
roduct type:1EI/AIW/200 Thermal Rating:CApplicable standard: IEC 60317-13;MW35-C, MW73-C, GB/T 6109.2, JIS C3215, UL-Certified
Size available(mm): 0.08mm-4.00 mm
Description:
EAIW is double-layer insulation, and its bottom layer is Polyesterimide or Modify Polyester covered by Polyamideimide. This combination improves insulation characteristics to obtain the best characteristics, such as strong physical characteristics and excellent insulation with excellent chemical resistance, refrigerant resistance.
Characteristic:
High heat resistance, high mechanical properties
(1) It has better heat resistance, moisture resistance and chemical resistance than PEW + NY.
(2) EAIW provides excellent thermal shock resistance, adhesion, softening resistance and wear resistance.
(3)Capable of working under extreme situations where strong resistibility against very high and low temperature, powerful cryogen, hard radiation and forceful heat shock are needed.

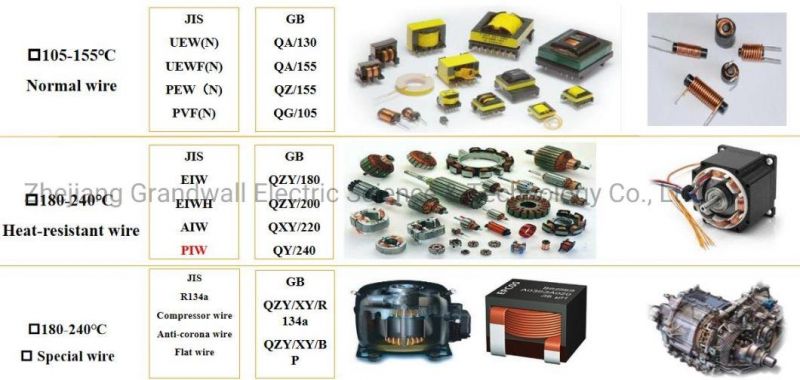

Typical Applications:
Applied in C Class motors, transformers, electric refrigerator powered by refrigerant R22/R410c/R600a/134a and windings in air-conditionar compressor. Motors, Dry transformers, Heavy duty hand tool motors, Encapsulated coils."
