Category5e UTP Cat5e Ethernet Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：cat5e
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：Cat5e
  • Brand：Risun or OEM
  • Color：as Request
  • Inner Conductor：24 AWG Bc,CCA
  • Insulation：HDPE
  • Nom. Thick：0.55mm
  • Export Length：100m,Roll, 200m,Roll, 305m,Roll
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

Company information
1000 FT Roll PVC FTP Cat5e Stranded Cm-Rated for in-Wall UseProduct information

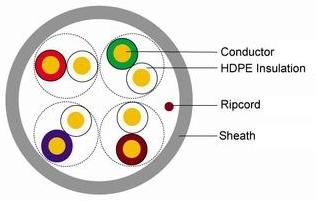

Configuration:



UTP Cat5e PE Pull Box Cable LAN Cable

1. Conductor: 0.50±0.01mm(24AWG) Bare copper

2. Insulation: 0.90±0.03mm HDPE

3. Cores/Pairs: 8/4

4. Sheath: 5.0±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, FR, RoHS complied.



Mechanical Properties:



ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Technical Performance:



          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4



Packing:
305m FTP Cat5e Network Cable with High Performance

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.



Production line:



305m FTP Cat5e Network Cable with High Performance

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.
