CAT6 High Frequency FTP Network Patch Cable, Booted 305m

Hangzhou Risun Cable Co., Ltd.
  • Application：LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：ftp cat6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP CAT6
  • Brand：Risun or OEM
  • Color：as Request
  • Conductor：23AWG
  • Shield：Polyester Tape,Al Foil
  • Insulation：HDPE
  • Drain Wire：Tc
  • Transport Package：305m,Wooden Drum
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

Basic Info.

Model NO. ftp cat6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP CAT6 Brand Risun or OEM Color as Request Conductor 23AWG Shield Polyester Tape/Al Foil Insulation HDPE Drain Wire Tc Transport Package 305m/Wooden Drum Specification CPR/ETL/CE/SGS/RoHS/ISO9001 Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Mont

Product Description

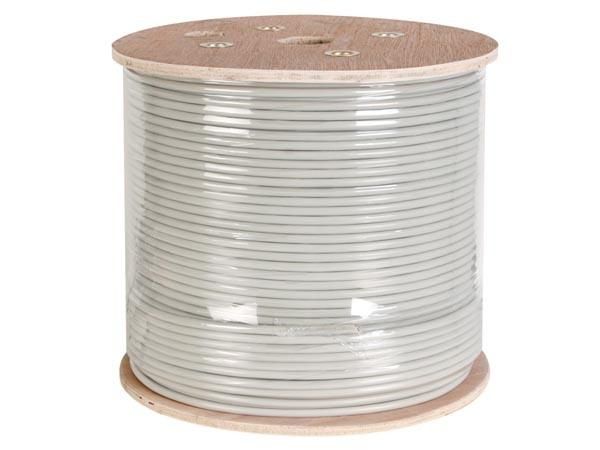

Cat6 high frequency FTP Network Patch Cable, Booted 305M.

CAT6 High Frequency FTP Network Patch Cable, Booted 305mcompany profile

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

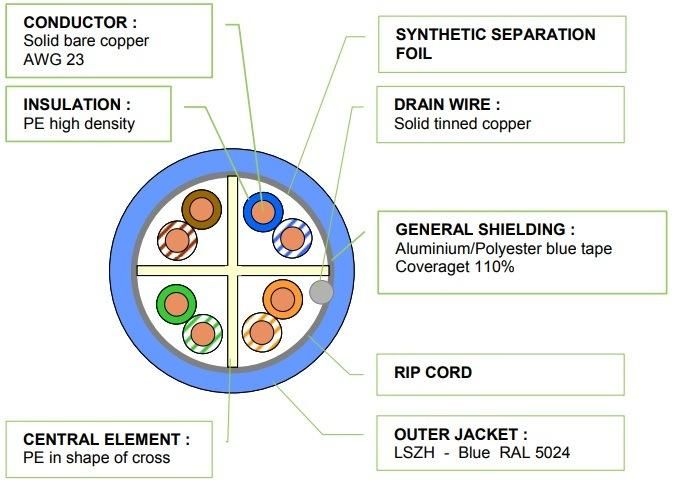

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.CAT6 High Frequency FTP Network Patch Cable, Booted 305mconstruction:
conductor0.57mm (solid or strand) cu/cca/ccs
insulationHDPE 1.04±0.02mm
Drain wire0.4mm TC
ShieldPolyester Tape/Al Foil
sheath7.3±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs8/4

mechanical properties:
elongationmin. 300%
temperature range-20 up to +75° c
tensile strengthmin 1.68kg/mm²



Packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

CAT6 550 MHz Shielded Solid LAN Cable

CAT6 550 MHz Shielded Solid LAN Cable

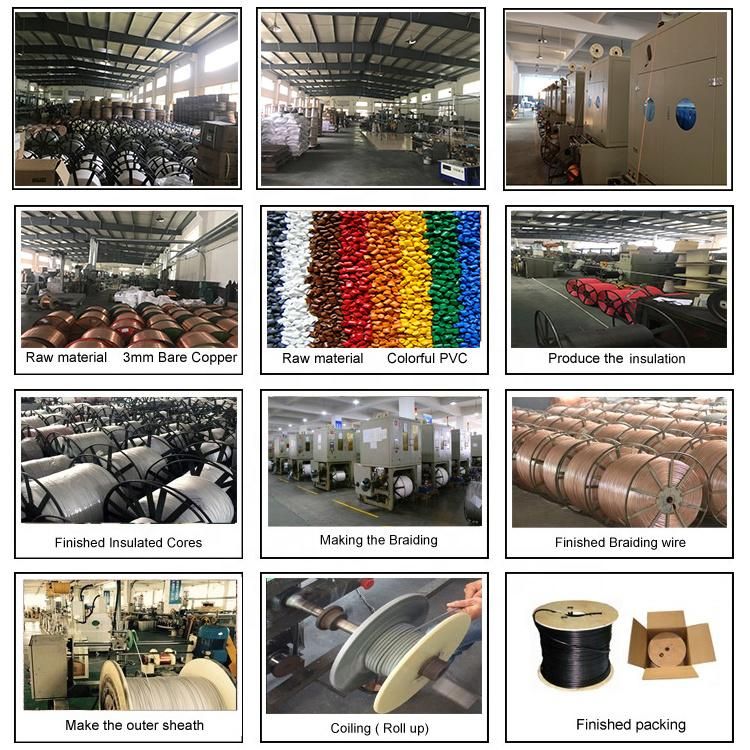

process of production: CAT6 550 MHz Shielded Solid LAN Cable
