• Model NO.：FLRY-A
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Flry-a 105c Automotive Cable
• Brand：Feiya
• Rate Voltage：60V DC & 25V AC
• OEM&ODM：Yes
• Intended for Use：Electric Automobile Charging Cable Material
• Temperature Rating：-30 C to +105c
• Product Name：Flry-a 105c Automotive Cable
• Wire Gauge：0.2mm ~ 2.5mm
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：solid, stranded, Flexible
• Trademark：Feiya
• Origin：China
• HS Code：8544
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. FLRY-A Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Flry-a 105c Automotive Cable Brand Feiya Rate Voltage 60V DC & 25V AC OEM&ODM Yes Intended for Use Electric Automobile Charging Cable Material Temperature Rating -30 C to +105c Product Name Flry-a 105c Automotive Cable Wire Gauge 0.2mm ~ 2.5mm Transport Package Wooden Box Packing or Pallet Shipping Containers Specification solid/ stranded/ Flexible Trademark Feiya Origin China HS Code 8544 Production Capacity 80000 Meter/Meters Per Month

Product Description

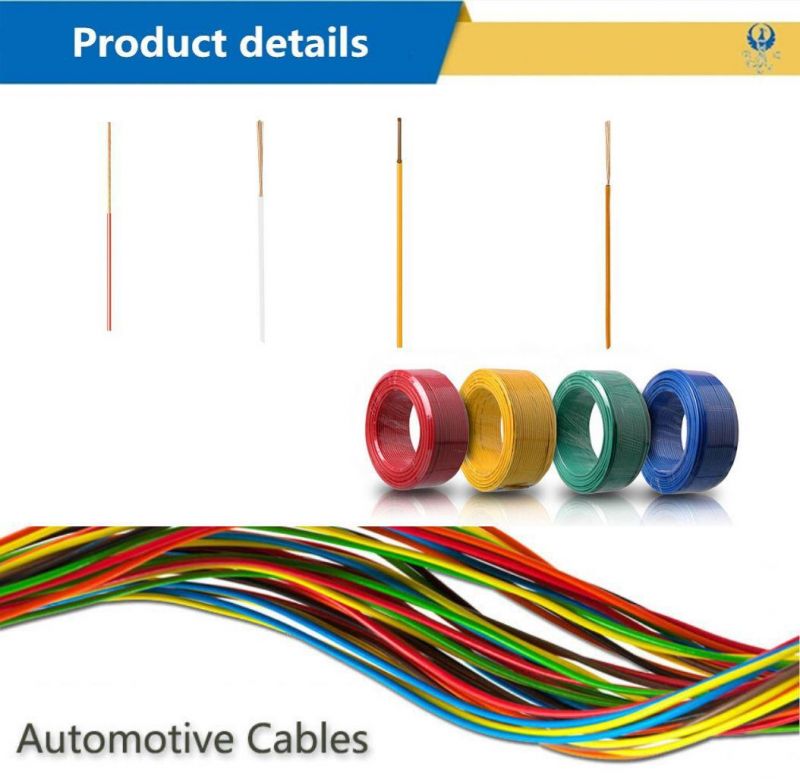

FLRY-A&FLRY-B single-core automotive wire for automobiles

FLRY-A

Application and Description

This PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

Construction

• Conductor: Cu-ETP1 bare or tinned copper according to DIN EN13602
• Insulation: PVC
• Standard Compliance: ISO 6722 Class B

Technical Parameters

Operating temperature: -40°C to 105°C

Dimensions and Weight

	Conductor Construction	Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Resistance at 20°C Bare/Tinned max.	Thickness Wall min.	Overall Diameter Max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	kg/km
1x0.22	7/0.21	0.70	84.80/86.50	0.20	1.20	3
1x0.35	7/0.26	0.80	52.00/54.50	0.20	1.30	5
1x0.50	19/0.19	1.00	37.10/38.20	0.22	1.60	7
1x0.75	19/0.23	1.20	24.70/25.40	0.24	1.90	9
1x1.00	19/0.26	1.35	18.50/19.10	0.24	2.10	11
1x1.50	19/0.32	1.70	12.70/13.00	0.24	2.40	16
1x2.00	19/0.37	2.00	9.42/9.69	0.24	2.60	23
1x2.50	19/0.41	2.20	7.60/7.80	0.28	3.00	26

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.

FLRY-B

Application and Description

This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition

Construction

• Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
• Insulation: PVC
• Standard Compliance: ISO 6722 Class B

Technical Parameters

Operating temperature: -40°C to 105°C

Dimensions and Weight

	Conductor Construction	Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Resistance at 20°C Bare/Tinned max.	Thickness Wall min.	Overall Diameter Max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	kg/km
1x0.35	12/0.21	0.90	52.00/5.50	0.20	1.40	5
1x0.50	16/0.21	1.00	37.10/38.20	0.22	1.60	7
1x0.75	24/0.21	1.20	24.70/25.40	0.24	1.90	9
1x1.00	32/0.21	1.35	18.50/19.10	0.24	2.10	11
1x1.50	30/0.26	1.70	12.70/13.00	0.24	2.40	16
1x2.00	30/0.31	1.90	9.31/9.59	0.24	2.60	22
1x2.50	50/0.26	2.20	7.60/7.80	0.28	3.00	26
1x3.00	45/0.31	2.40	6.21/6.40	0.28	3.20	33
1x4.00	56/0.31	2.75	4.70/4.80	0.32	3.70	42
1x6.00	84/0.31	3.30	3.10/3.20	0.32	4.30	61
1x10.00	80/0.41	4.50	1.82/1.85	0.48	6.00	108
1x16.00	126/0.41	6.30	1.16/1.18	0.52	7.90	170
1x25.00	196/0.41	7.80	0.743/0.757	0.52	9.40	265

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

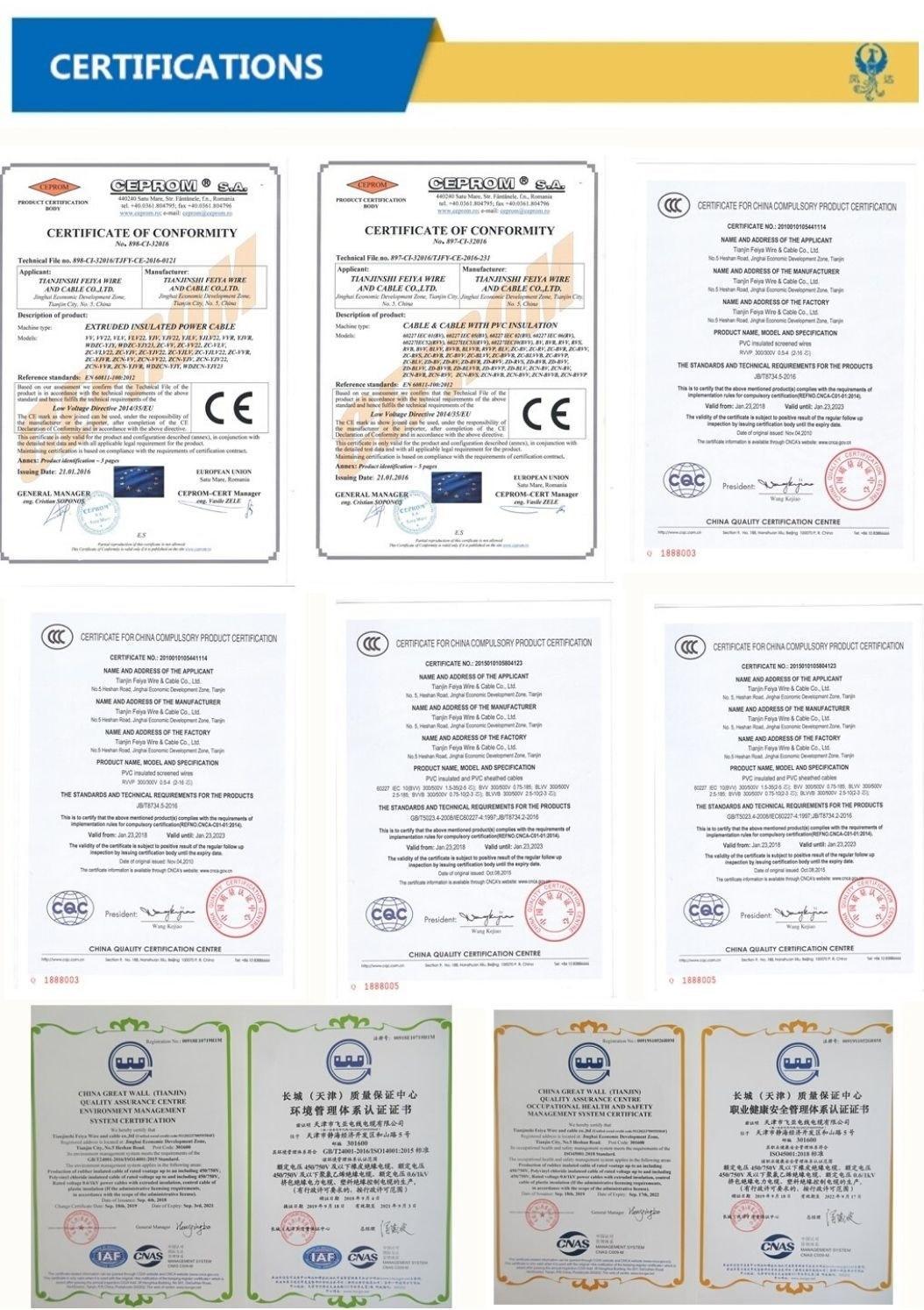

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5:How much the Courier freight will be for the samples?

A5:Courier freight depends on the quantity,weight and carton size and your area.
