• Model NO.：building wires
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：Rmjt
• Product Name：5 Core Power Cable 2.5mm
• Type of Comanpy：Manufacturer
• Standard：GB 5023.1~7-1997 IEC 60227
• Certificate：ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc
• Product Model：BV, Blv, BVV, Blvv, BVVB, Blvvb, RV, Rvb, Rvs, Rvv
• Rated Voltage：300,300V, 450,750V
• Core Number：Single, 2, 3 or 4 Cores
• Package：Packing in Rolls or as Your Requirement
• Country of Origin：Professional Manufacturer of 25 Years in China
• Payment：L,C, D,a, D,P, T,T, Western Union, Moneygram
• Transport Package：Package in Rolls or as Your Request
• Specification：0.5mm2-400mm2
• Trademark：RMJT
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：50000km Each Month

Basic Info.

Model NO. building wires Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Brand Rmjt Product Name 5 Core Power Cable 2.5mm Type of Comanpy Manufacturer Standard GB 5023.1~7-1997 IEC 60227 Certificate ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc Product Model BV, Blv, BVV, Blvv, BVVB, Blvvb, RV, Rvb, Rvs, Rvv Rated Voltage 300/300V, 450/750V Core Number Single, 2, 3 or 4 Cores Package Packing in Rolls or as Your Requirement Country of Origin Professional Manufacturer of 25 Years in China Payment L/C, D/a, D/P, T/T, Western Union, Moneygram Transport Package Package in Rolls or as Your Request Specification 0.5mm2-400mm2 Trademark RMJT Origin Henan, China HS Code 8544492100 Production Capacity 50000km Each Month

Product Description

5 core power cable 2.5mm

1.Application
PVC insulated copper  wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).

2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.

3.Brief construction
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: single
4) Other special characteristics: Design and manufacture according to the requirements of customers.

4. Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

5.Specification and technical data


Type	Name
227 IEC 01 (BV)	Single-core non-sheathed cable with solid conductor for general purposes
227 IEC 02 (RV)	Single-core non-sheathed cable with flexible conductor for general purposes
227 IEC 05 (BV)	Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC
227 IEC 06 (RV)	Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC
227 IEC 07 (BV-90)	Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC
227 IEC 08 (RV-90)	Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC
227 IEC 10 (BVV)	Light PVC sheathed cable
227 IEC 42 (RVB)	Flat non-sheathed flexible cable
227 IEC 52 (RVV)	Light PVC sheathed flexible cable
227 IEC 53 (RVV)	Ordinary PVC sheathed flexible cable
227 IEC 74 (RVVYP)	Oil-proof PVC sheathed, screened flexible cable
227 IEC 75 (RVVY)	Oil-proof PVC sheathed, non screened flexible cable

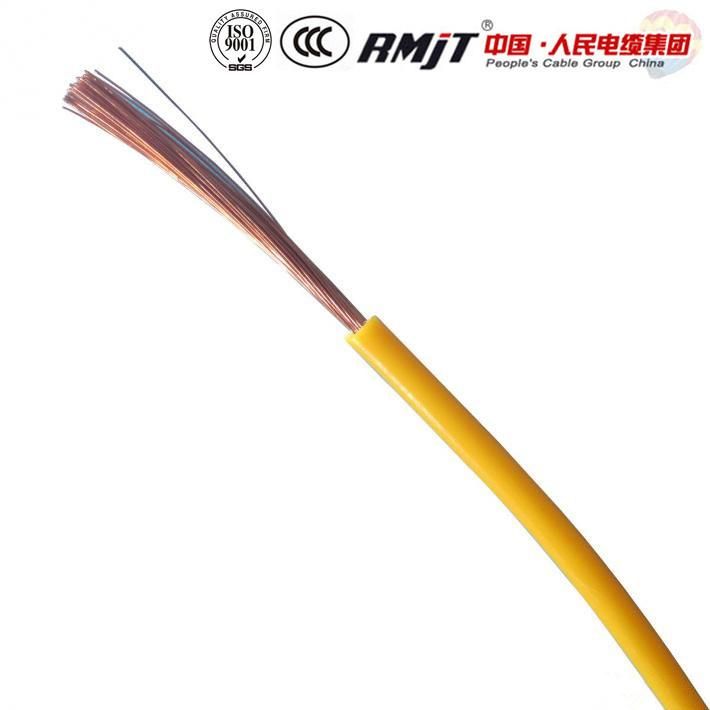

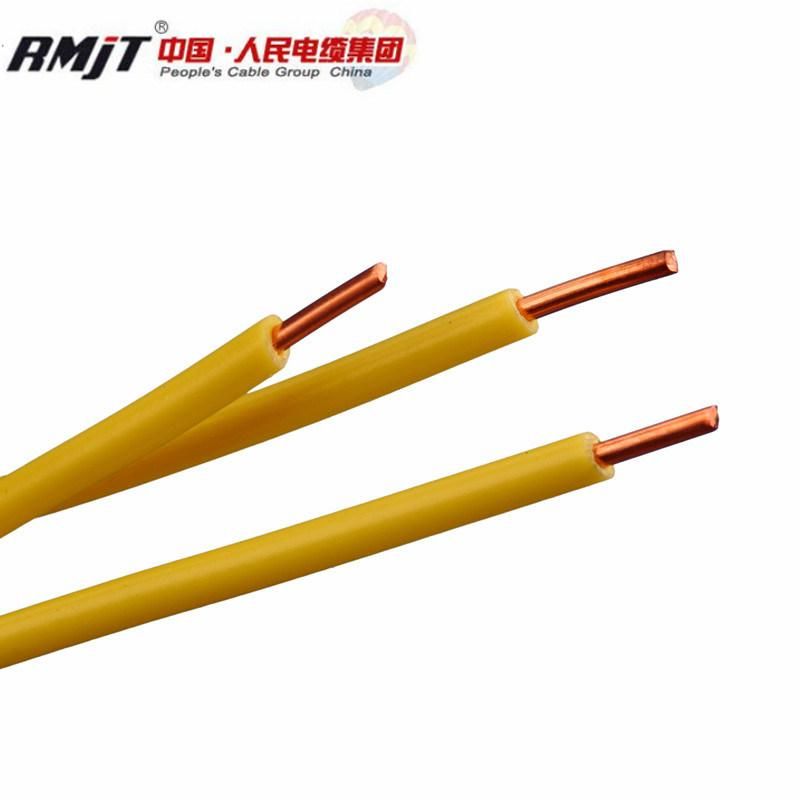

6.Product details



7. Company certification

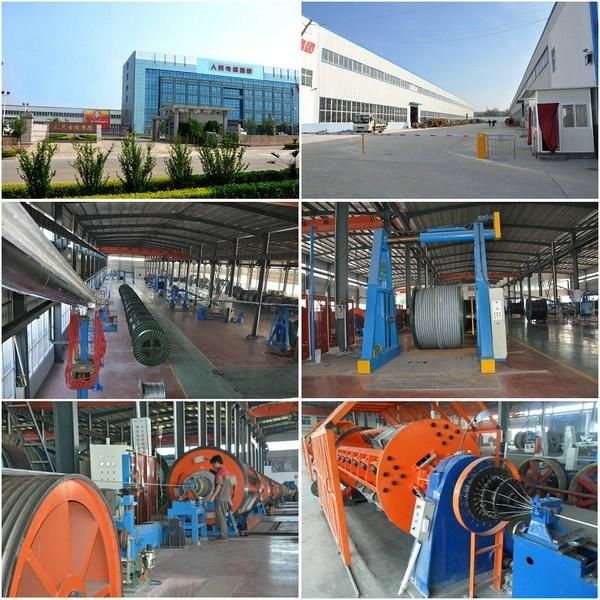

8. Our company



9.Customers visiting

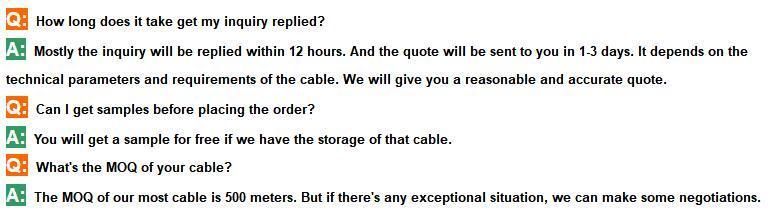

10. FAQ and Contact
