Cable & Wire

Home > Product > Optical Fiber

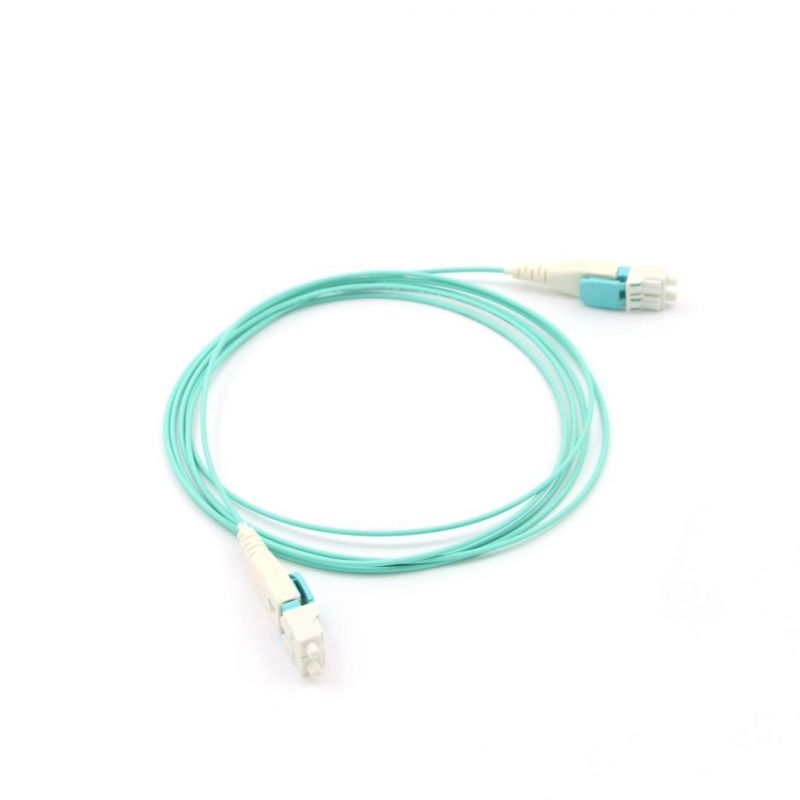

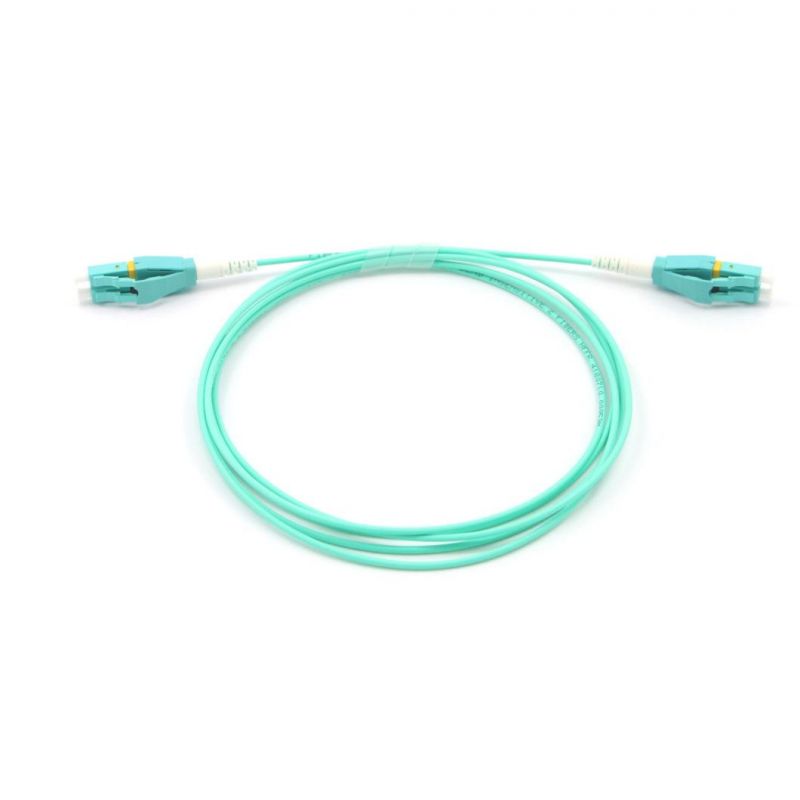

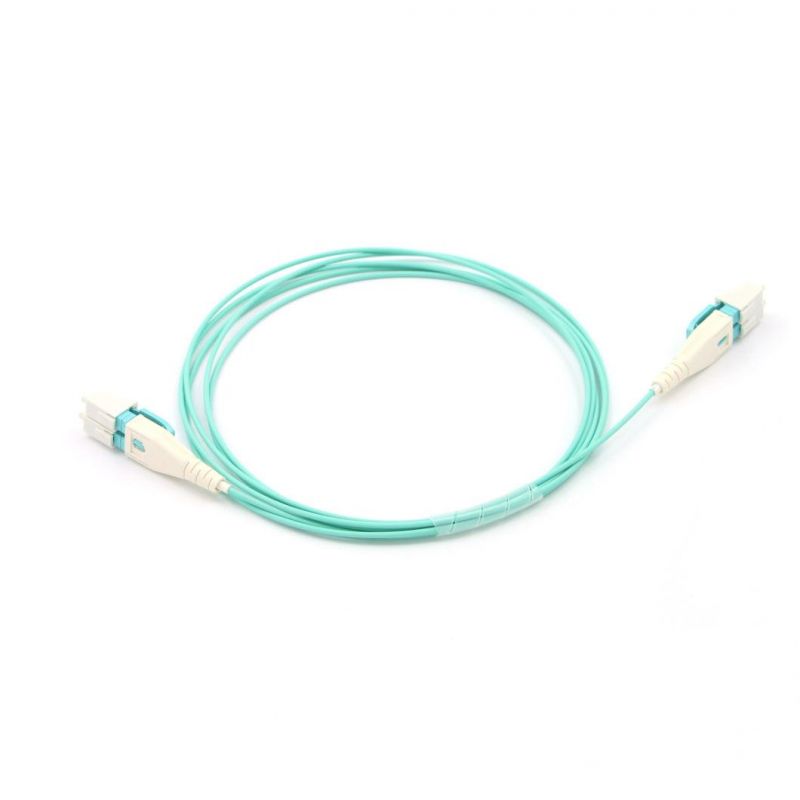

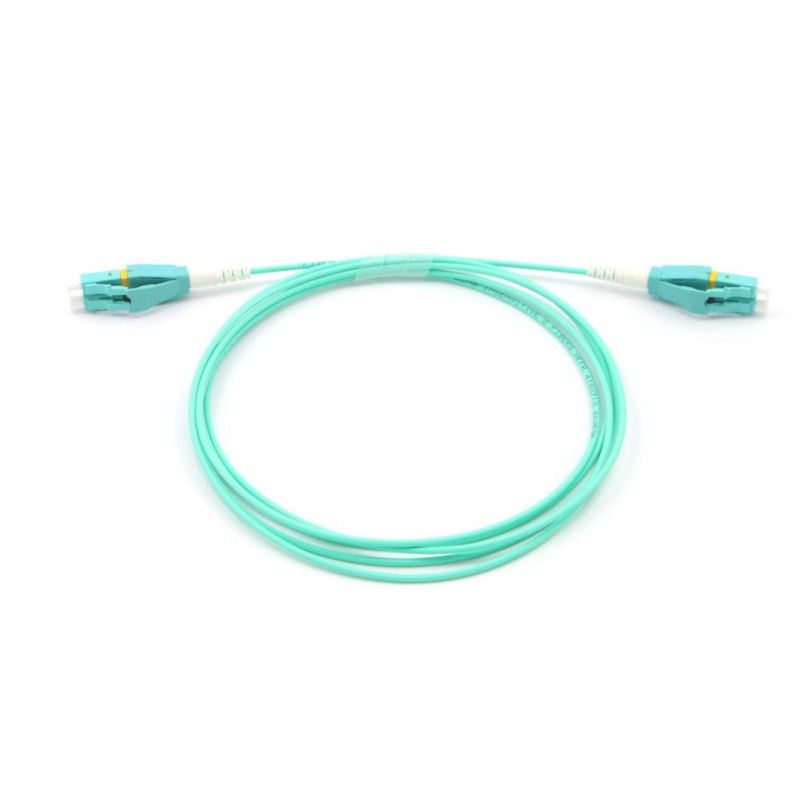

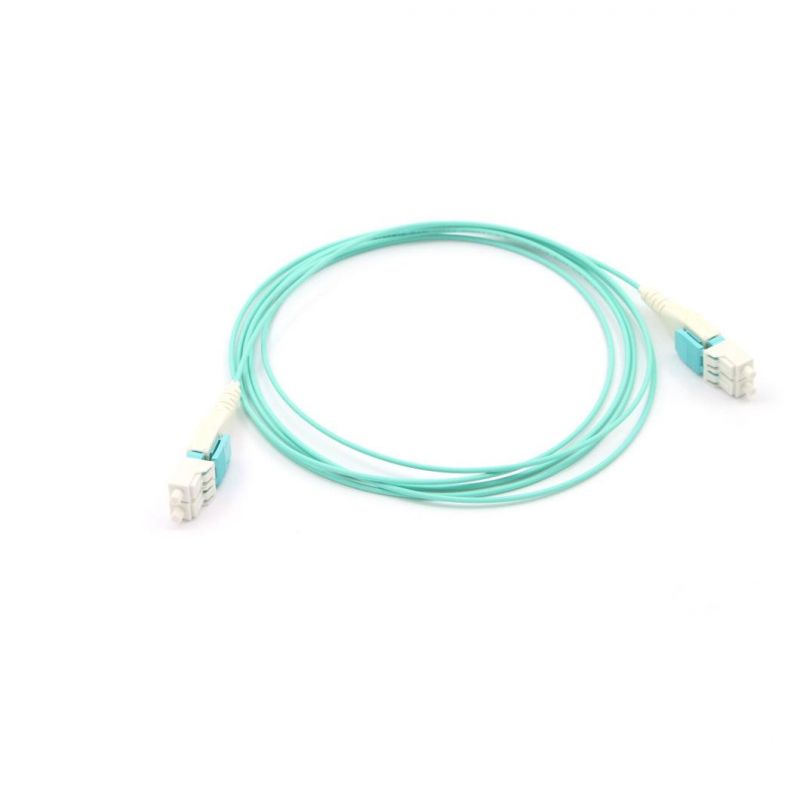

Switchable LC Uniboot Fiber Optical Patch Cable

Shenzhen KOC Communication Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：100N<1000N
  • Certification：RoHS, CE, ISO9001

Base Info

  • Model NO.：LC
  • Brand：OEM
  • Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
  • Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
  • Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Length：1m, 2m, or Customization
  • Label：Sticker, Paper
  • Boot Type：LC Uniboot, Slotted Boot, Smooth Boot, Rubber Boo
  • Transport Package：Zipper Bag, Carton Box
  • Specification：SGS; RoHs
  • Trademark：koc
  • Origin：Made in Shenzhen
  • HS Code：85447000
  • Production Capacity：500000 PCS,Month

Description

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°C


ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)  Switchable LC Uniboot Fiber Optical Patch CableSwitchable LC Uniboot Fiber Optical Patch CableSwitchable LC Uniboot Fiber Optical Patch CableSwitchable LC Uniboot Fiber Optical Patch CableSwitchable LC Uniboot Fiber Optical Patch CableSwitchable LC Uniboot Fiber Optical Patch Cable


   Note: The price range is for Patch Cord  Switchable LC uniboot  LC/PC -LC/PC Singlemode G652D Duplex 2mm  1meter.
