Ecc Ho7V-U, H05V-K, H07V-K, H07z-U 450/750V PVC Insulated Wire Building Wire Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Building
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Wire Cable
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE, BV
- Brand：Rmjt
- Voltage：300-1000V
- Structure：Stranded Copper
- OEM or ODM：Yes
- Usage：Power Transimision
- Size：1.5-240sq.mm;
- Transport Package：Wooden Drum
- Specification：1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2...240mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：100000000000000000meters,Year
Description
H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004Cross Section
(mm2) Conductor Construction (No/mm) Insulation Thickness (mm) Overall Diameter Max (mm) Min Insulation Resistance@ 70ºC (ohm/Km) Weight Approx (Kg/Km) 1x0.5 1/0.80 0.6 2.4 0.015 8 1x0.75 7/0.97 0.6 2.8 0.012 11 1x0.75 1/0.97 0.6 2.6 0.012 11 1x1.0 7/0.43 0.6 3.0 / 14 1x1.0 1/1.13 0.6 2.8 0.011 14 1x1.5 7/0.52 0.7 3.4 0.010 21 1x1.5 1x1.38 0.7 3.3 0.011 20 1x2.5 7/0.67 0.8 4.2 0.009 32 1x2.5 1x1.78 0.8 3.9 0.010 31 1x4 7/0.85 0.8 4.8 0.0077 45 1x4 1/2.25 0.8 4.4 0.0085 45 1x6 7/1.04 0.8 5.4 0.0065 65 1x6 1/2.76 0.8 4.9 0.0070 65 1x10 7/1.35 1.0 6.8 0.0065 110 1x10 1/3.57 1.0 6.4 0.0070 110 1x16 7/1.70 1.0 8.0 0.0050 165 1x25 7/2.14 1.2 9.8 0.0050 264 1x35 7/2.52 1.2 11.0 0.0040 360 1x50 19/1.78 1.4 13.0 0.0045 490 1x70 19/2.14 1.4 15.0 0.0035 685 1x95 19/2.52 1.6 17.5 0.0035 946 1x120 37/2.03 1.6 19.0 0.0032 1181 1x150 37/2.25 1.8 21.0 0.0032 1453 1x185 37/2.52 2.0 23.5 0.0032 1821 1x240 61/2.24 2.2 26.5 0.0032 2383 1x300 61/2.50 2.4 29.5 0.0030 2983 1x400 61/2.85 2.6 33.5 0.0028 3800

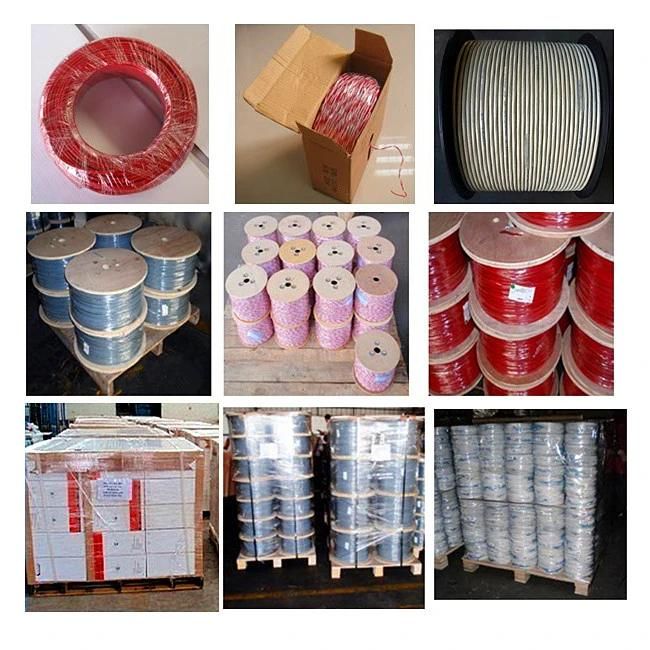

Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

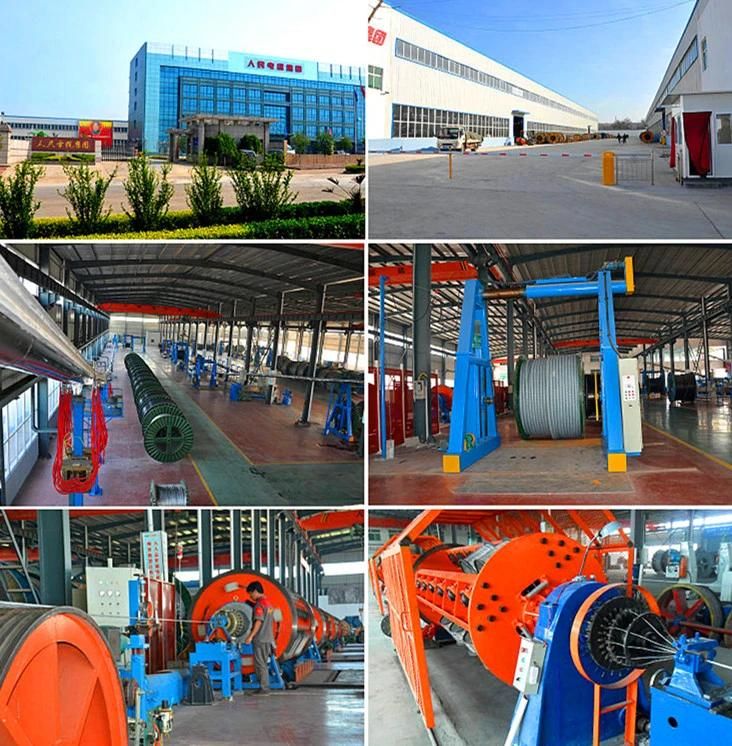

7.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
